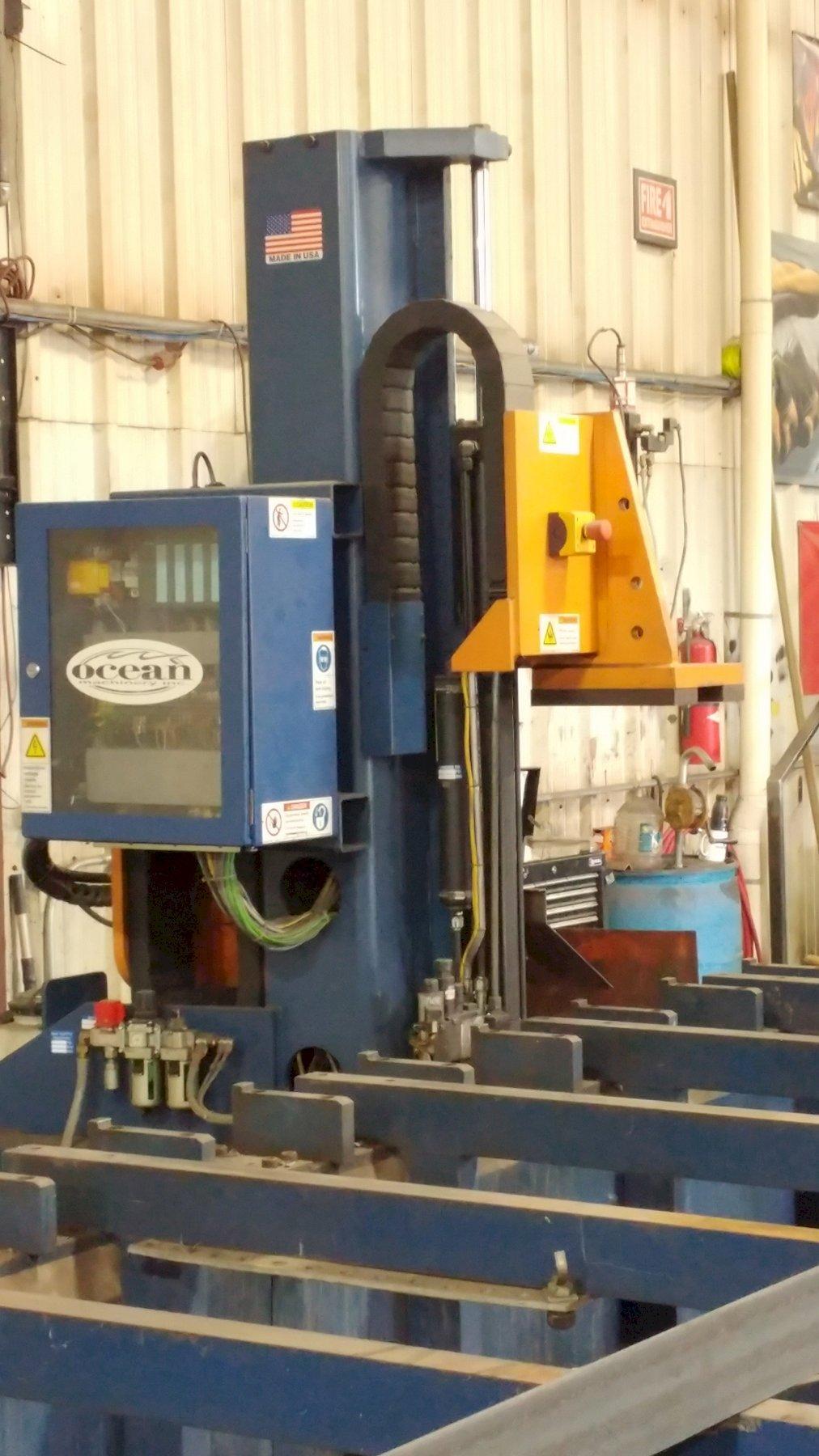

2012 Ocean Avenger Profiling Machine

Brand
OCEAN AVENGER

Model

Type
Profilers

Stock #
54013

Condition
Used

Year
2012

Specifications

CNC Control yes
Type of CNC Control Peddinghaus Ocean CNC
Weight 730 pounds

Maximum Beam Size                       Profiles up to 40". Max beam length 60ft. Max weight 730 lbs/ft.

Minimum Drill Diameter                  1/4" (6.5mm)

Maximum Drill Diameter                  2" (50mm)

Maximum Material Thickness           Up to 10" (250mm)

Max Speed X Axis                             120 ft per minute

Max Speed Y Axis                             120 ft per minute

Spindle Motor Power                       13 3/4 hp

Drilling Speeds                                 0-545 rpm (continuously variable)

Drilling Feed Rate                             2” – 10” per min (50-254mm) infinitely variable

Spindle Stroke                                  13" (330mm) Max.

Total Power                                      20 HP (14.9 kW)

Power Supply                                   460V, 3-ph, 60 Hz

Average Output                                200 to 400 holes per hour depending on the profile drilled

Date Built                                          July 2012



Machine Includes:

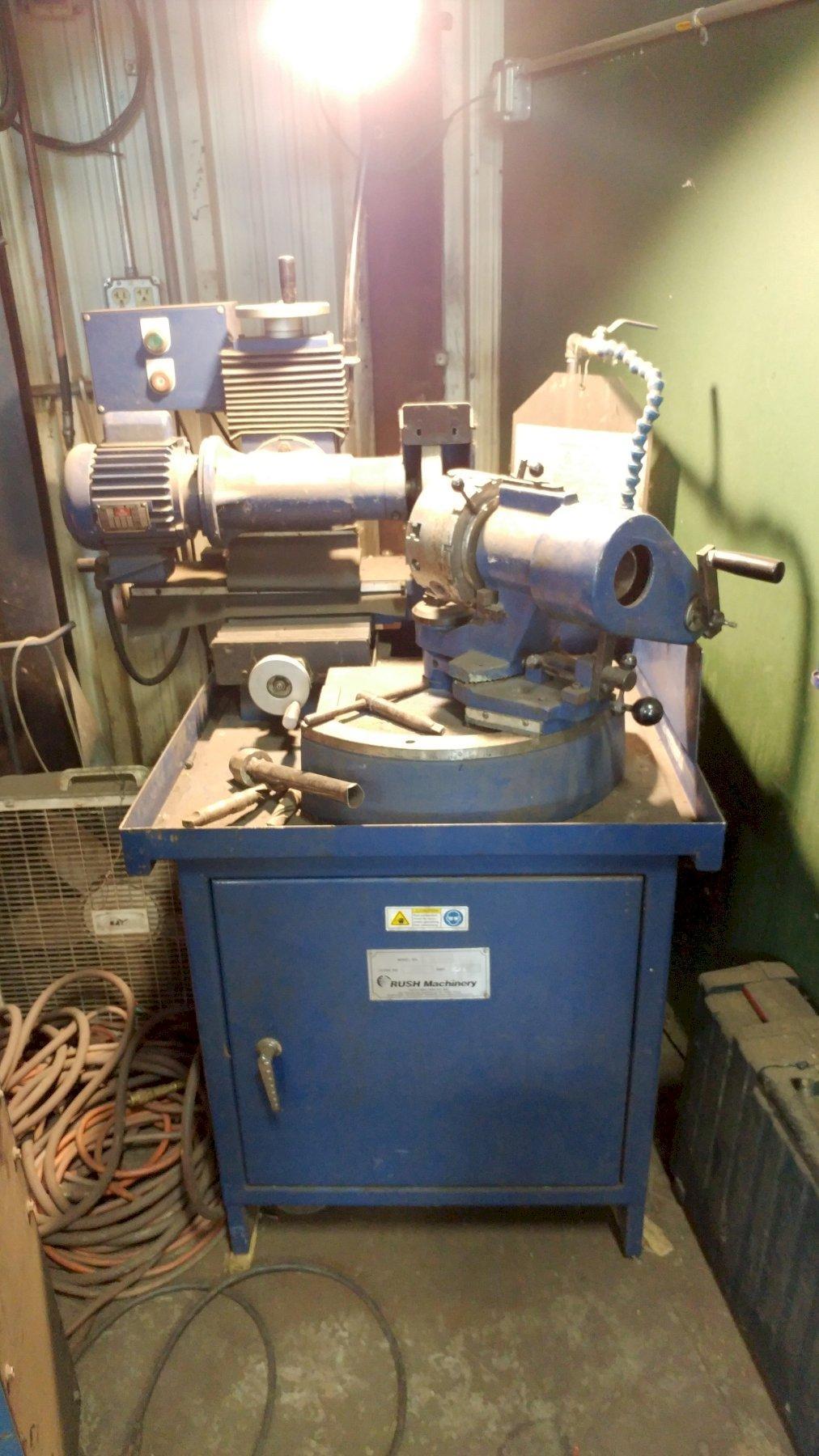

Ocean Rejuvenator 110V Drill Sharpener

5-Stage Speed-Aire Desiccant Air Dryer

GE Transformer (converts our 208V to the necessary 460V)
