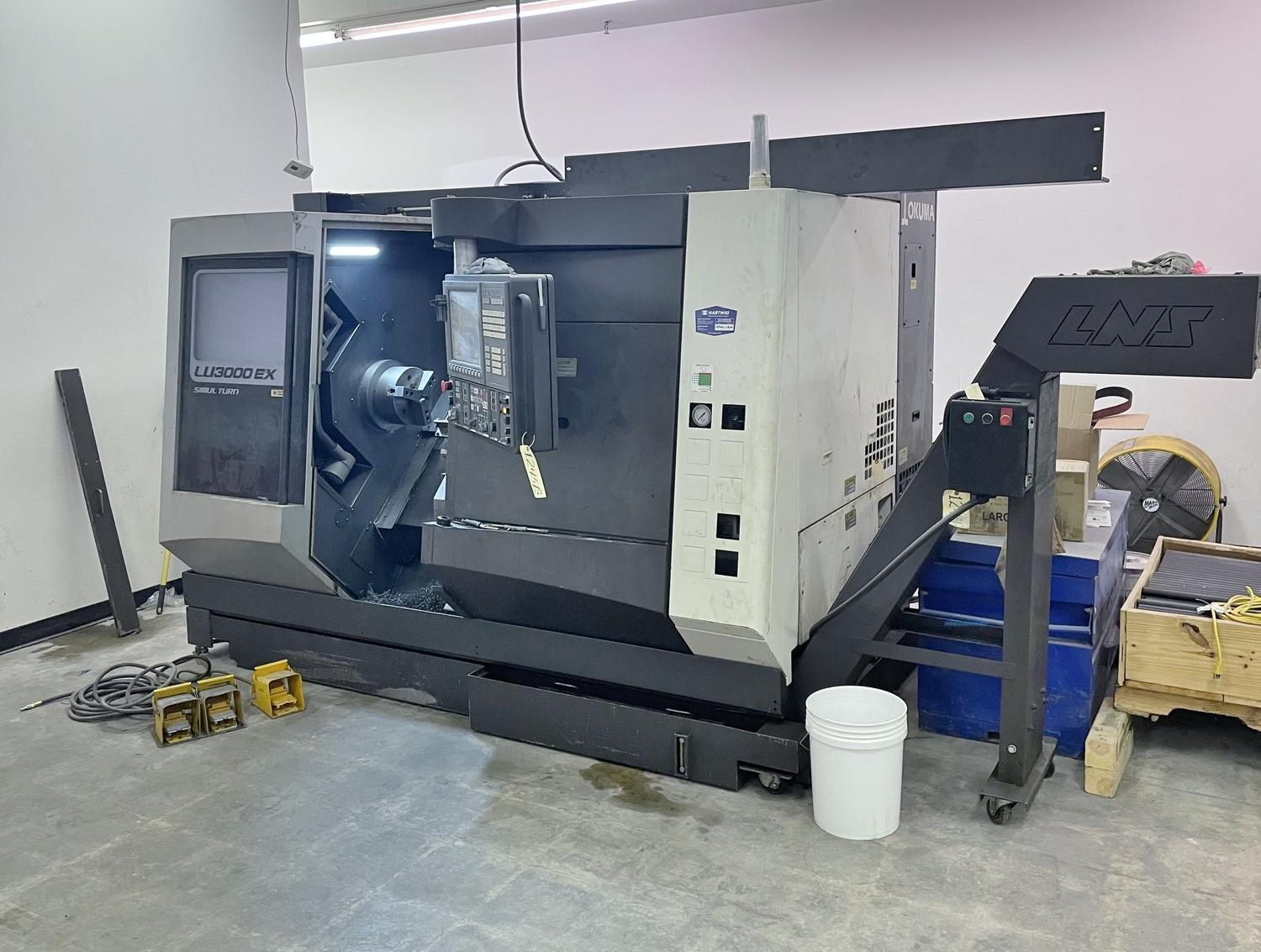

2013 OKUMA LU3000EX CNC Lathe

Brand
OKUMA

Model
LU3000EX

Type
Lathes, CNC (3-Axis or More)

Stock #
56117

Condition
Very Good

Year
2013

Specifications

CNC Control yes
Type of CNC Control OSP P300L CONTROL
Number of Axes 3
Number of Spindles 1
Chuck Size 8"
Spindle Nose A2-6
Max. Turning Diameter 16.14"
Max. Turning Length 23.62"
No. Positions on Upper Turret 12
No. Turret Positions on Lower Turret 8
Spindle Speed Range 5,000 RPM
Spindle HP 30 hp
Dimensions 87" x 68" x 72.4"Ht.
Machine Weight 8800 Lbs.

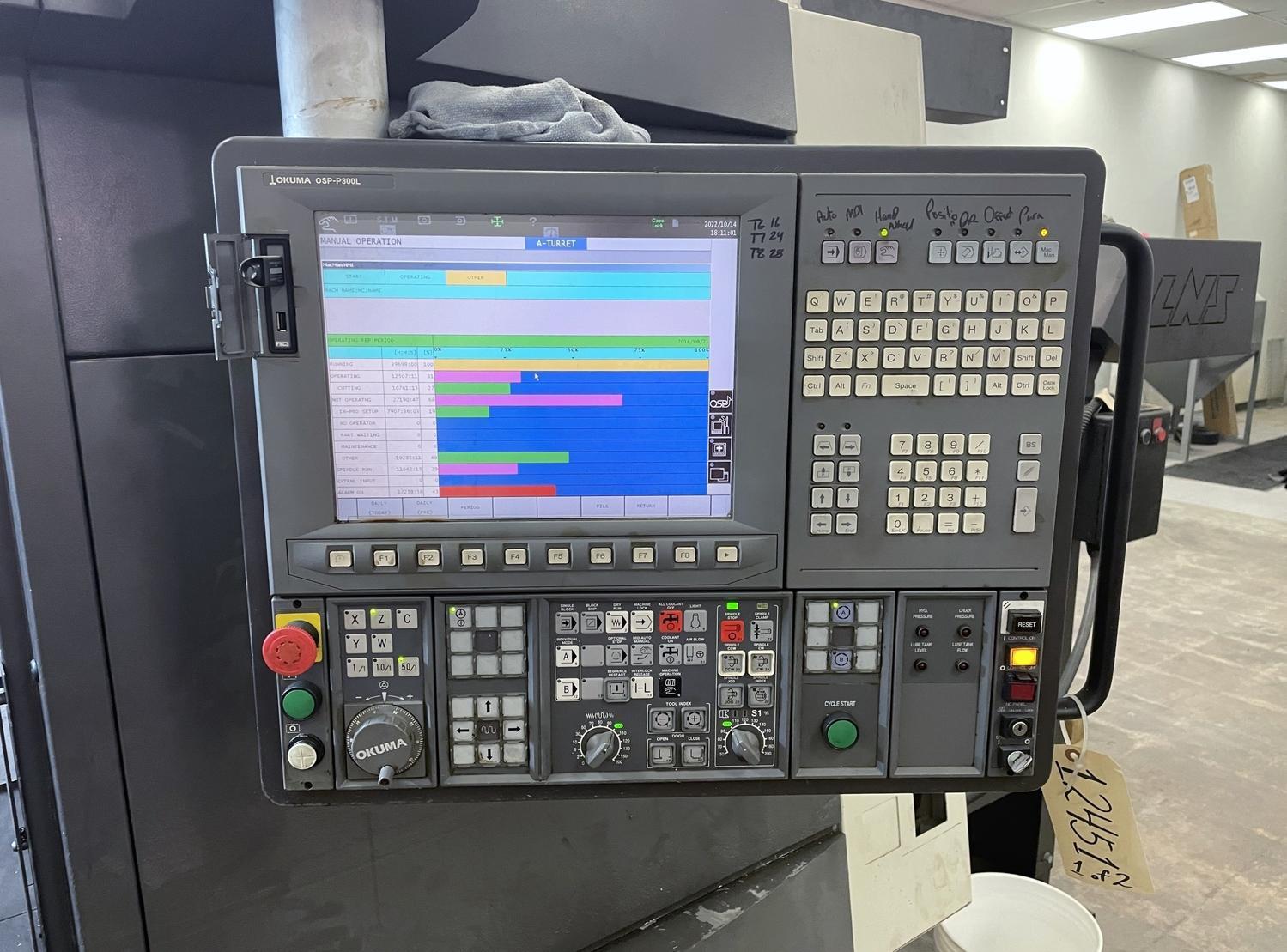

OSP P300L CONTROL
UPPER & LOWER TURRETS

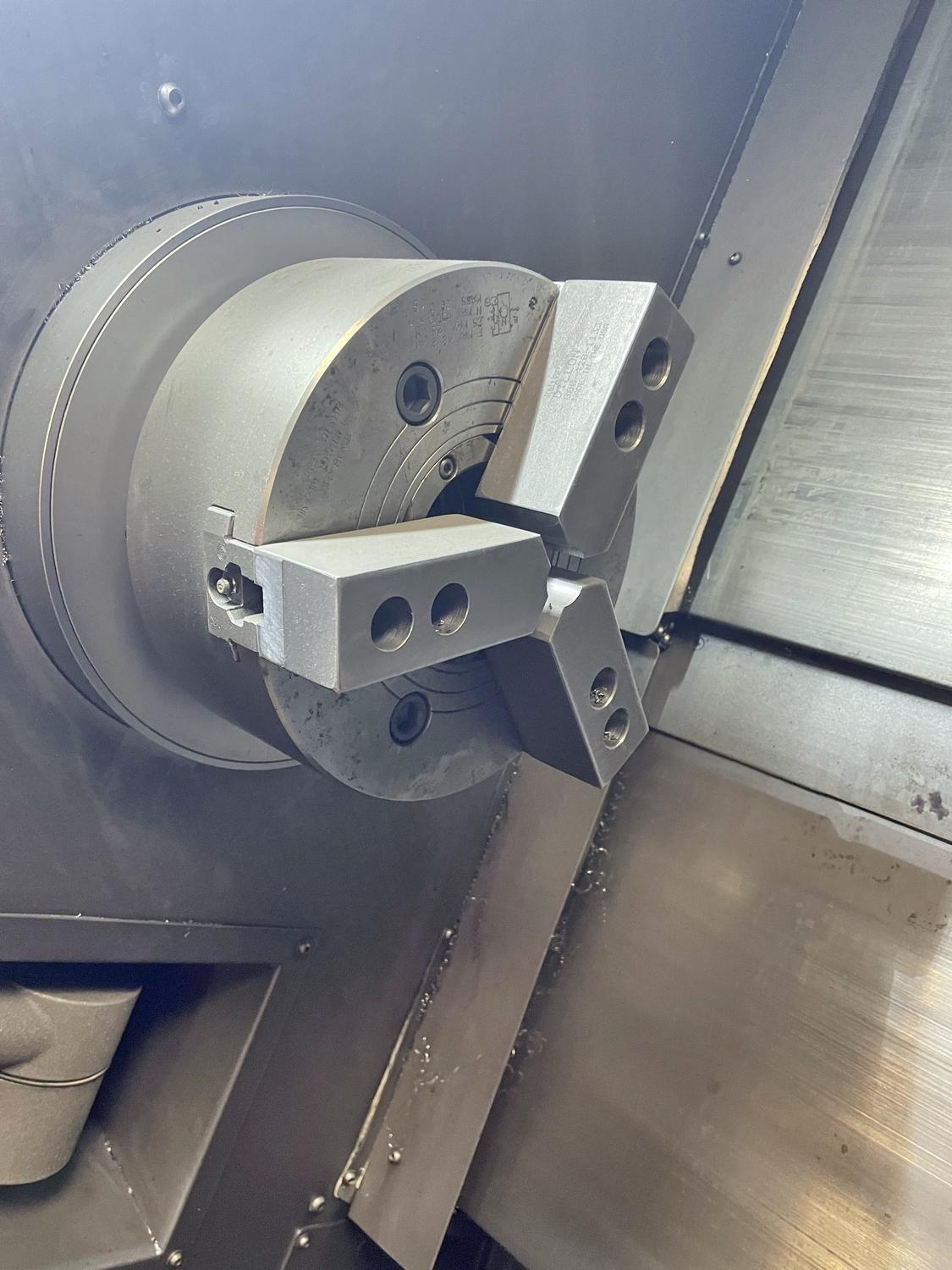

8", 3-JAW KITAGAWA (BB210) HYDRAULIC CHUCK
TAILSTOCK
TOOL PRESETTER

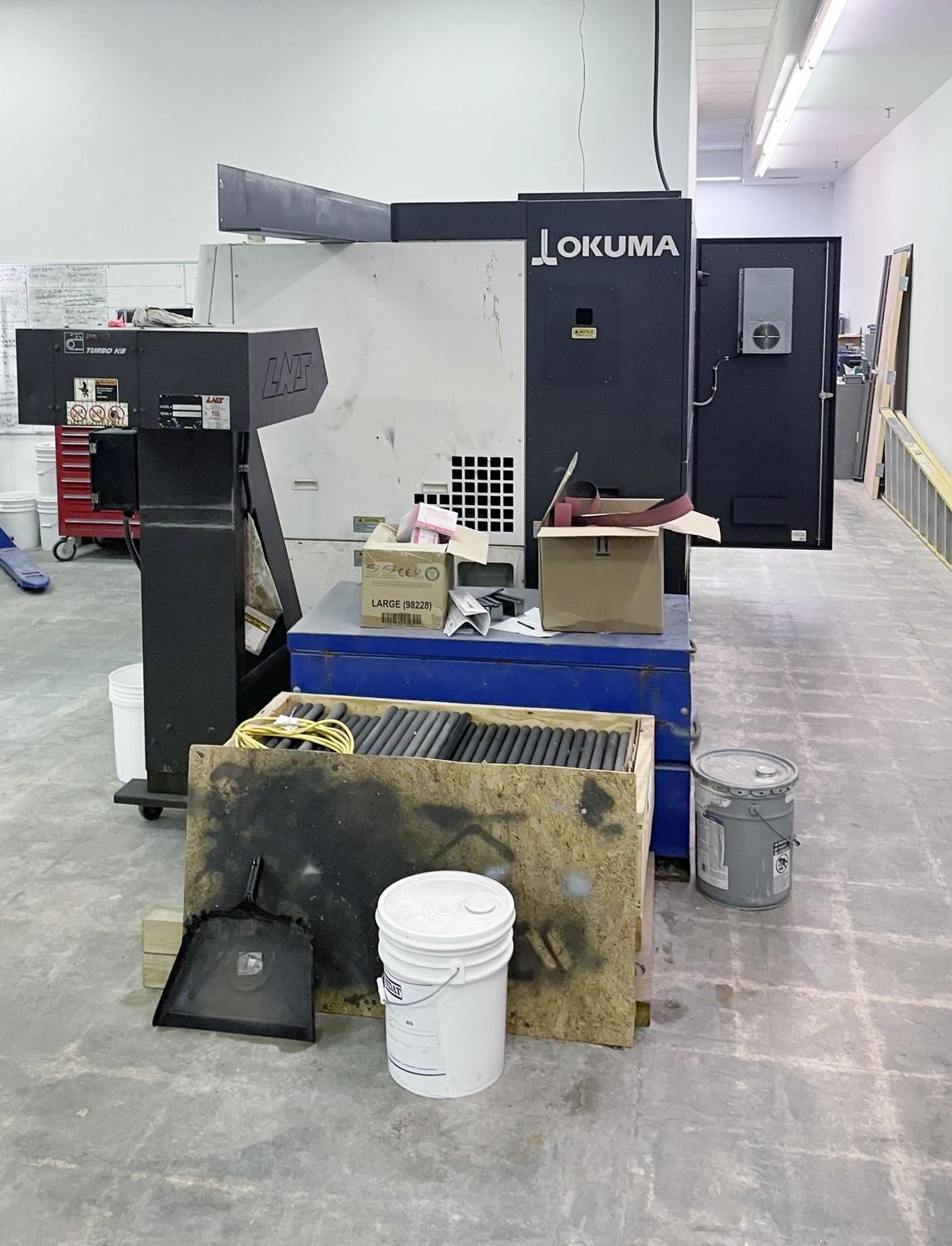

CHIP CONVEYOR (LNS)
COOLANT SYSTEM
AUTO DOOR
TOOL WEAR COMPENSATION
TOOL LIFE MANAGEMENT
TURRET POSITION COMP
SPINDLE ORIENTATION
CHUCK GRASP COMF
ARC THREAD CUT
HEAVY TOOLING
3D ANIMATION
HI-G CONTROL

** AS OF OCTOBER 2022, CUTTING TIME - 10,761 HOURS

** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE

*All specifications are approximations and are subject to verification. Comes as shown in images. Please give us a call if you have any questions before purchasing. All sales are final.*
