Brecknell DCSB6060-10 NTEP 5 x 5 Platform Electronic Floor Scale, 10,000 x 2 lbs
Brand
BRECKNELL
Model
DCSB6060-10 NTEP
Type
Scales, Floor
Stock #
56748
Condition
Excellent
Year
2019
Brand
BRECKNELL
Model
DCSB6060-10 NTEP
Type
Scales, Floor
Stock #
56748
Condition
Excellent
Year
2019
| Capacity | 10000 Lbs. |
| Readability | 2 Lbs. |
| Platform Size | 5 x 5' |
| Accuracy | NTEP at 5,000 divisions, Class III |
| Construction | 0.25 inch thick deck with safety tread |
| Finish | Powder coat paint |
| Interface Cable Length | 15' with tinned leads (included) |
| Washdown Rating | IP65 dust and water protection |
| Units | lb, kg, oz |
| Indicator Housing | Heavy dut stainless steel, IP65 dust and waterproof |
| Interfaces | Serial Port 1: Full-duplex RS-232 Serial Port 2: Full-duplex RS-232 or half-duplex RS-485 |
| Functions | Motion, Zero, Net, Gross, Tare, Total, Counting, Peak/Hold, Checkweighing, Percentage Weighing |
| Keyboard | Hold/Setup, Print/Func, N/G/Total, Unit/Data, Tare/Preset, Zero/On/Off |
| Levelling Feet | 4 top access holes for quick levelling |
| J-Box Construction | Stainless steel, top access |
| Load Cell Material | Alloy tool steel potted |
| Load Cell Rated Output | 3mv/V |
| Overload Protection | 150% of rated capacity |
| End Loading | 100% of rated capacity |
| Operating Temperature | 14°F to 104°F (-10°C to 40°C) |
| Certifications | Indicator: NTEP COC# 11-119 Platform: NTEP COC# 02-070 |

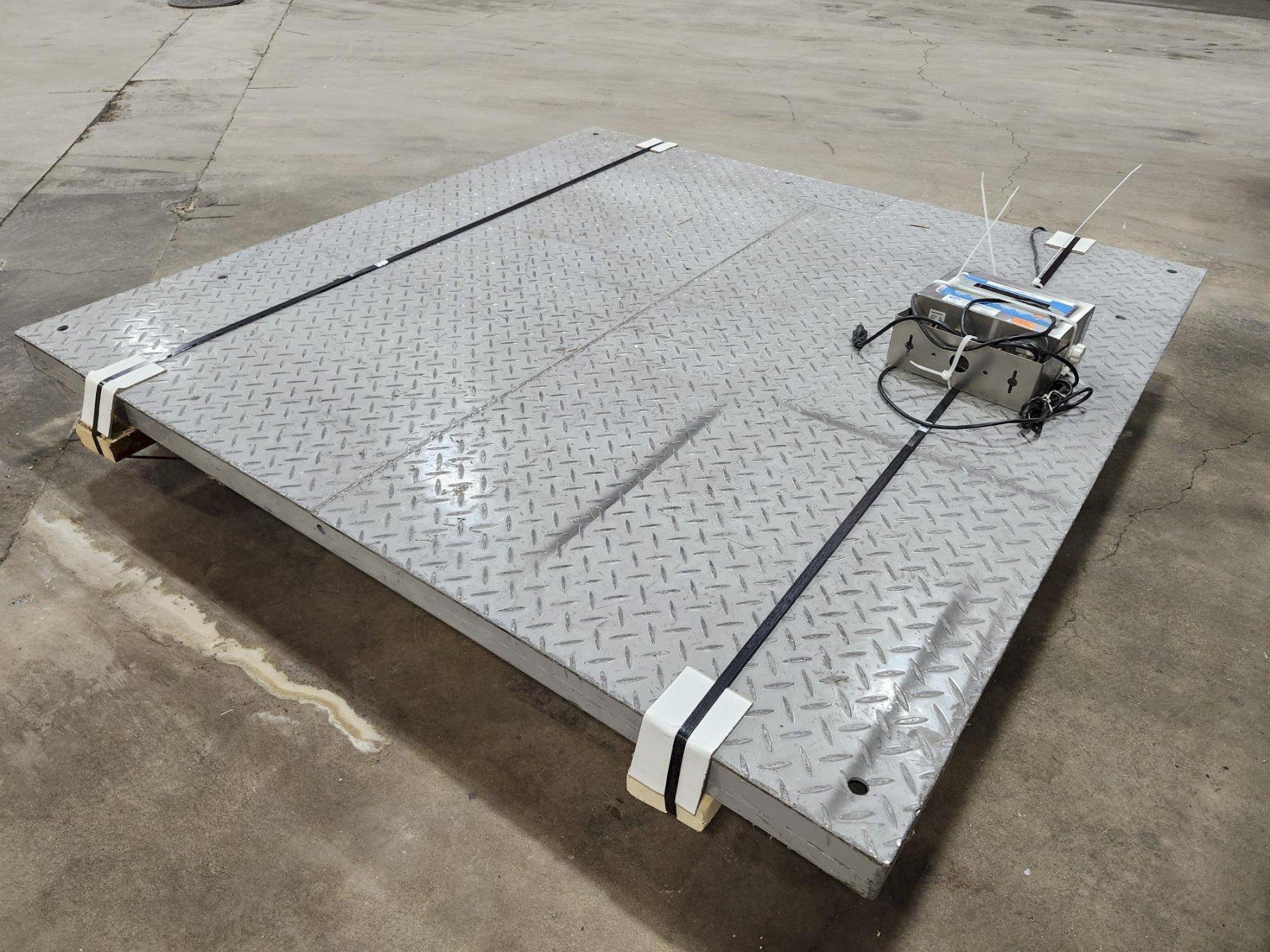

The Brecknell DCSB6060-10 5 x 5 NTEP floor scale has a capacity of 10,000 lbs with a 2 lbs readability. Brecknell DCSB NTEP certified legal for trade industrial floor scales are IP65 rated washdown and comes precalibrated with the SBI-521 stainless steel LED indicator.
|
