Brand
DN SOLUTIONS
Model

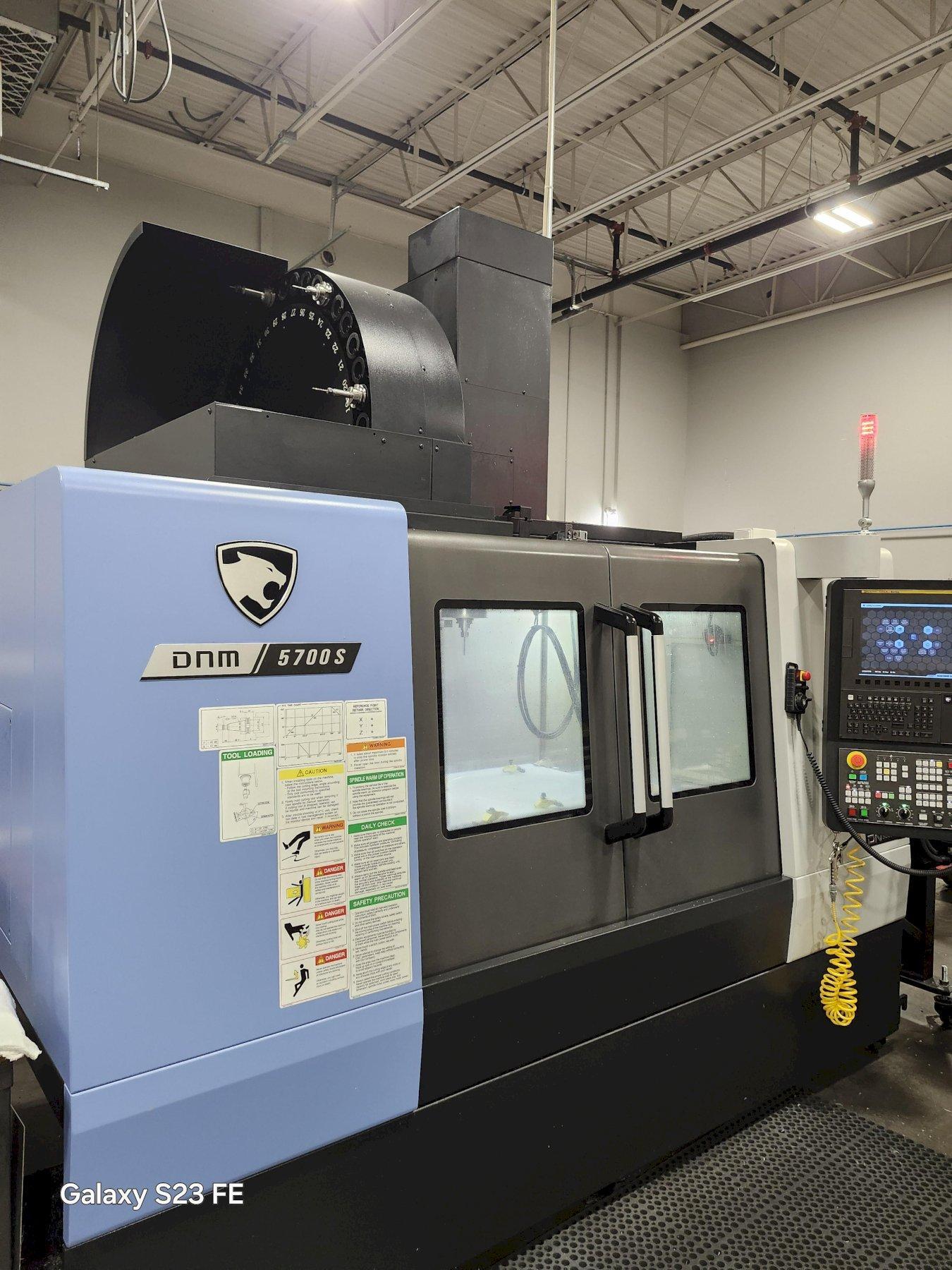

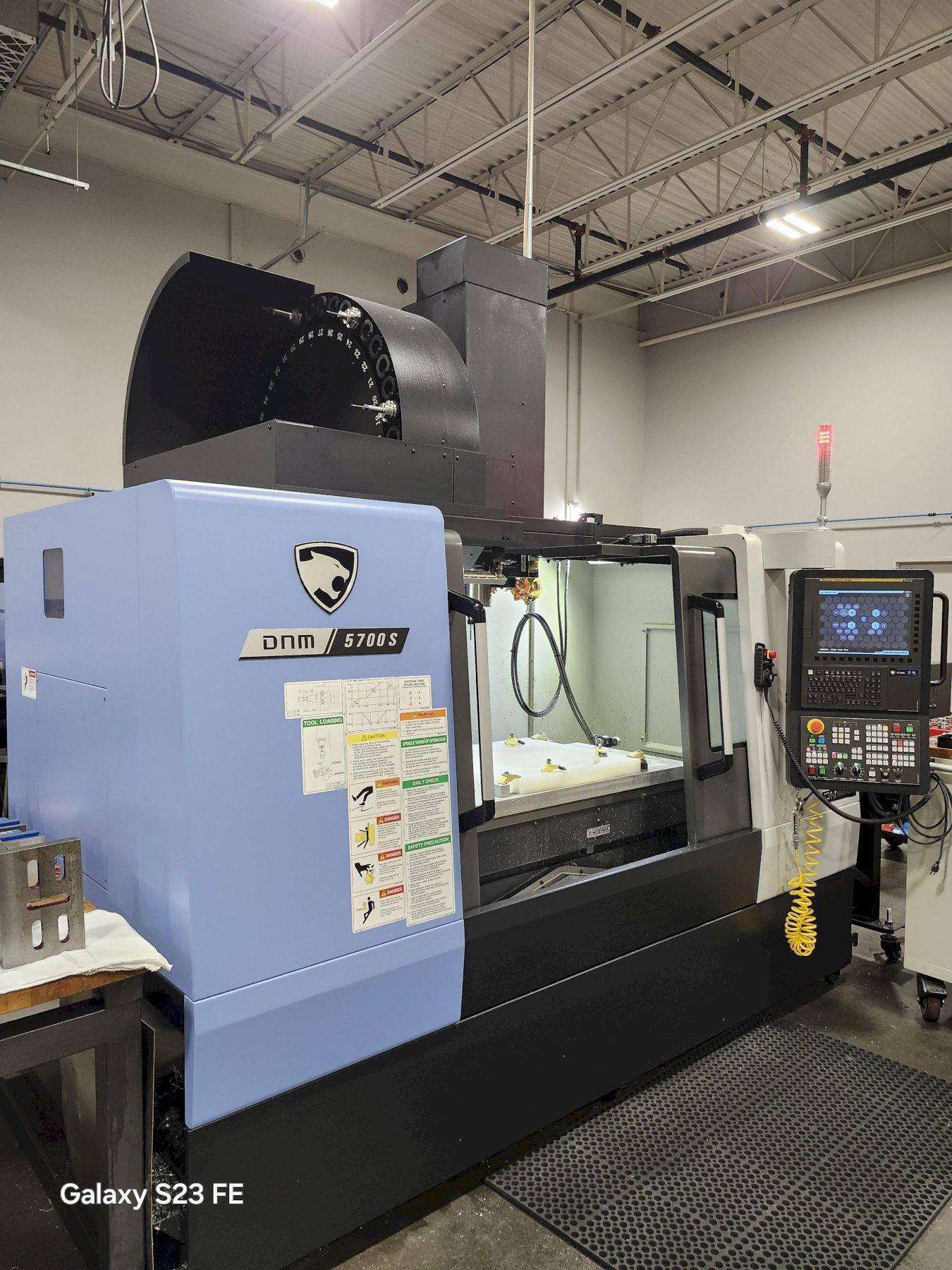

DNM 5700S
Type
Machining Centers, Vertical
Stock #
56732
Condition
Excellent
Year
2023
| CNC Control | yes |

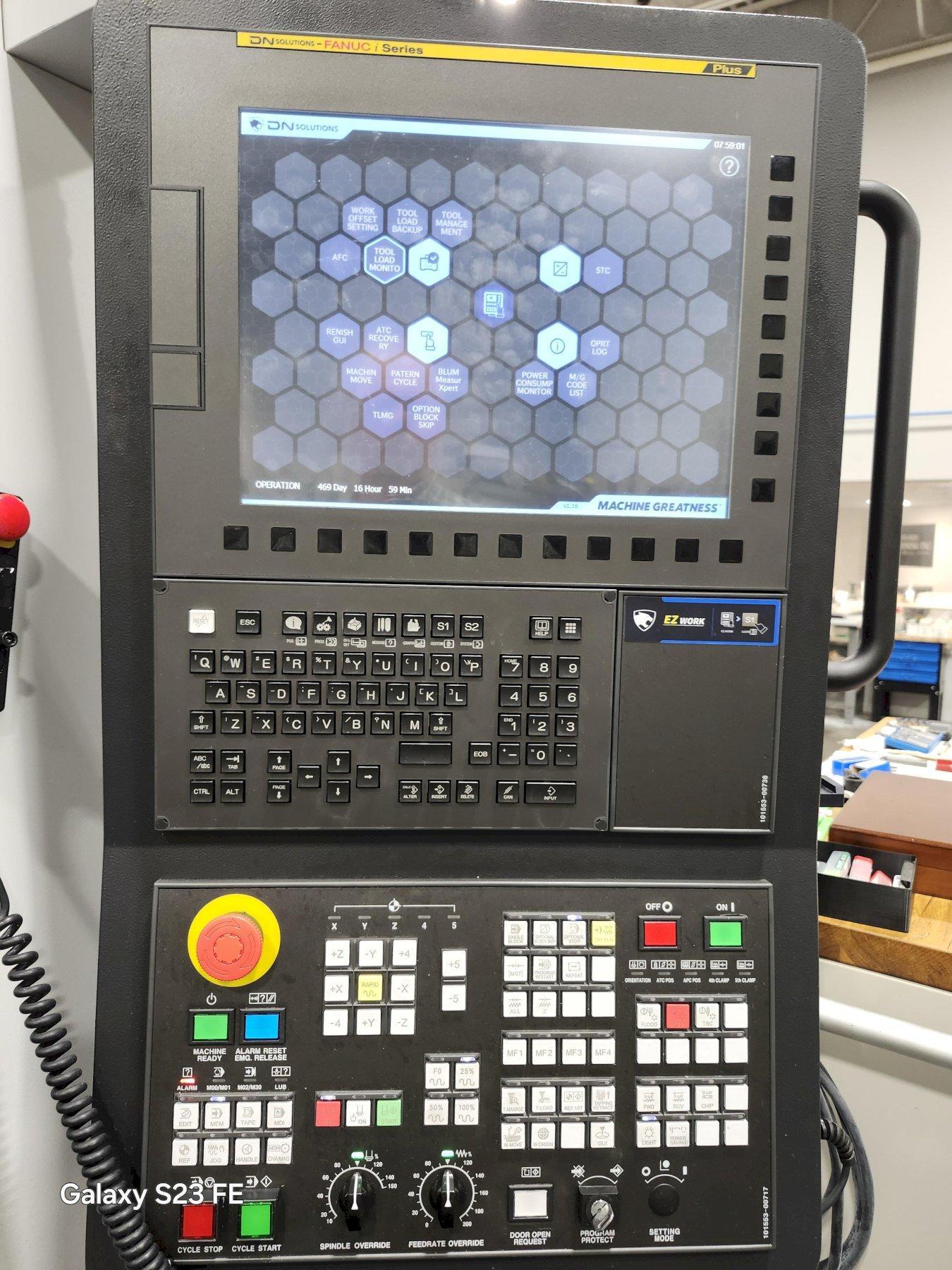

| Type of CNC Control | DN Soluttions - Fanuc I Series |
| # Axis | 3 |
| Table Size | 51.2 x 22.4 in |
| Table Capacity | 2205 pounds |
| X-Axis Travel | 41.3 inches |
| Y-Axis Travel | 22.4 inches |
| Z-Axis Travel | 18.1 inches |
| Spindle to Table Distance | 150 - 610 mm (5.9 - 24 in.) |
| X-Axis Rapid Traverse Rate | 1653 in./min |
| Y-Axis Rapid Traverse Rate | 1653 in./min |
| Z-Axis Rapid Traverse Rate | 1417 in./min. |
| Spindle Speed | 15000 RPM |
| Spindle Taper | CAT 40 |

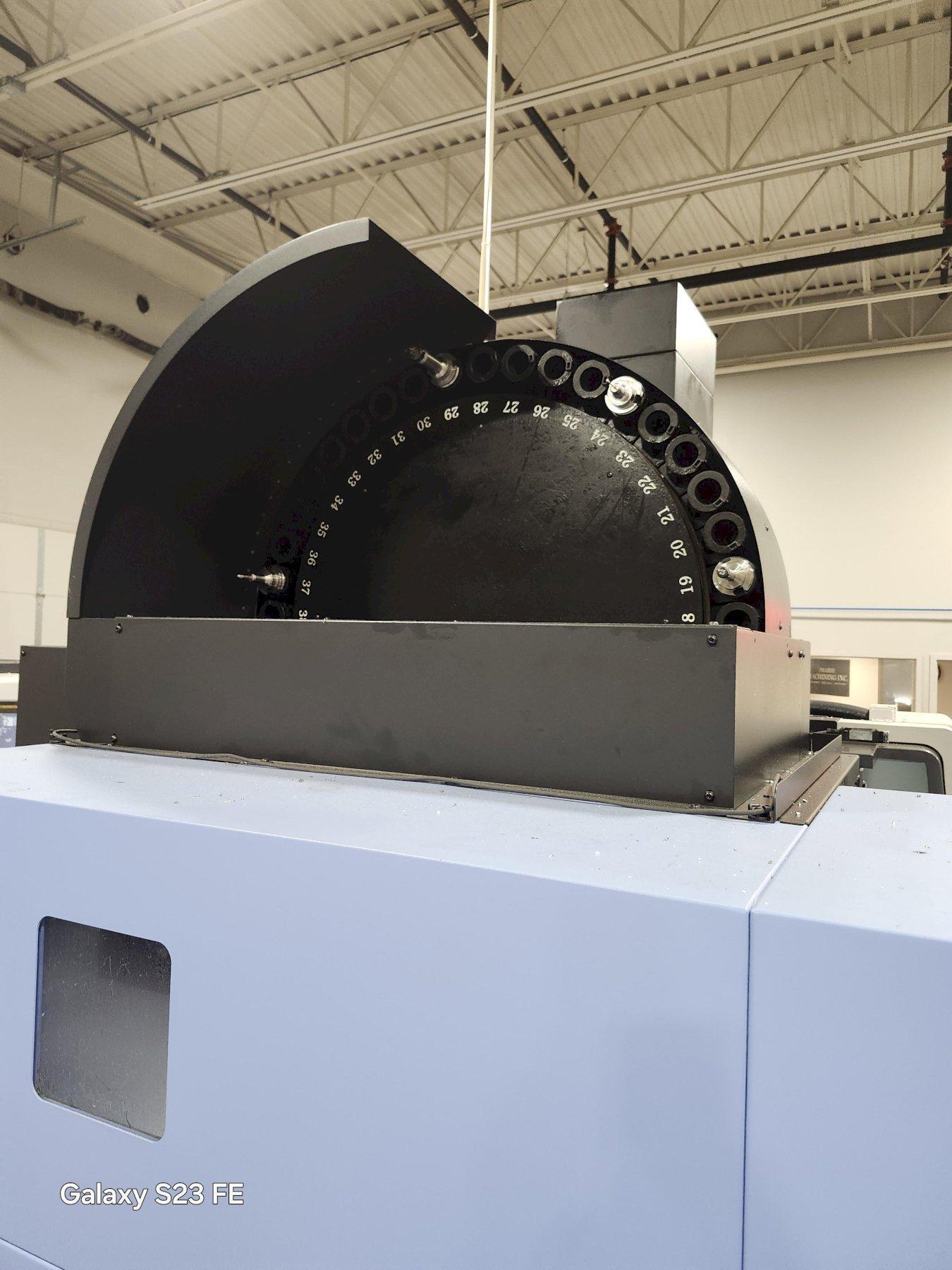

| Tool Changer Capacity | 40 |
| Main Motor | 20.1/49.6 Hp |
| Coolant Thru Spindle | yes |
| Torque, Up To | 157.9 ft-lbs. |
| Weight | 14500 pounds |

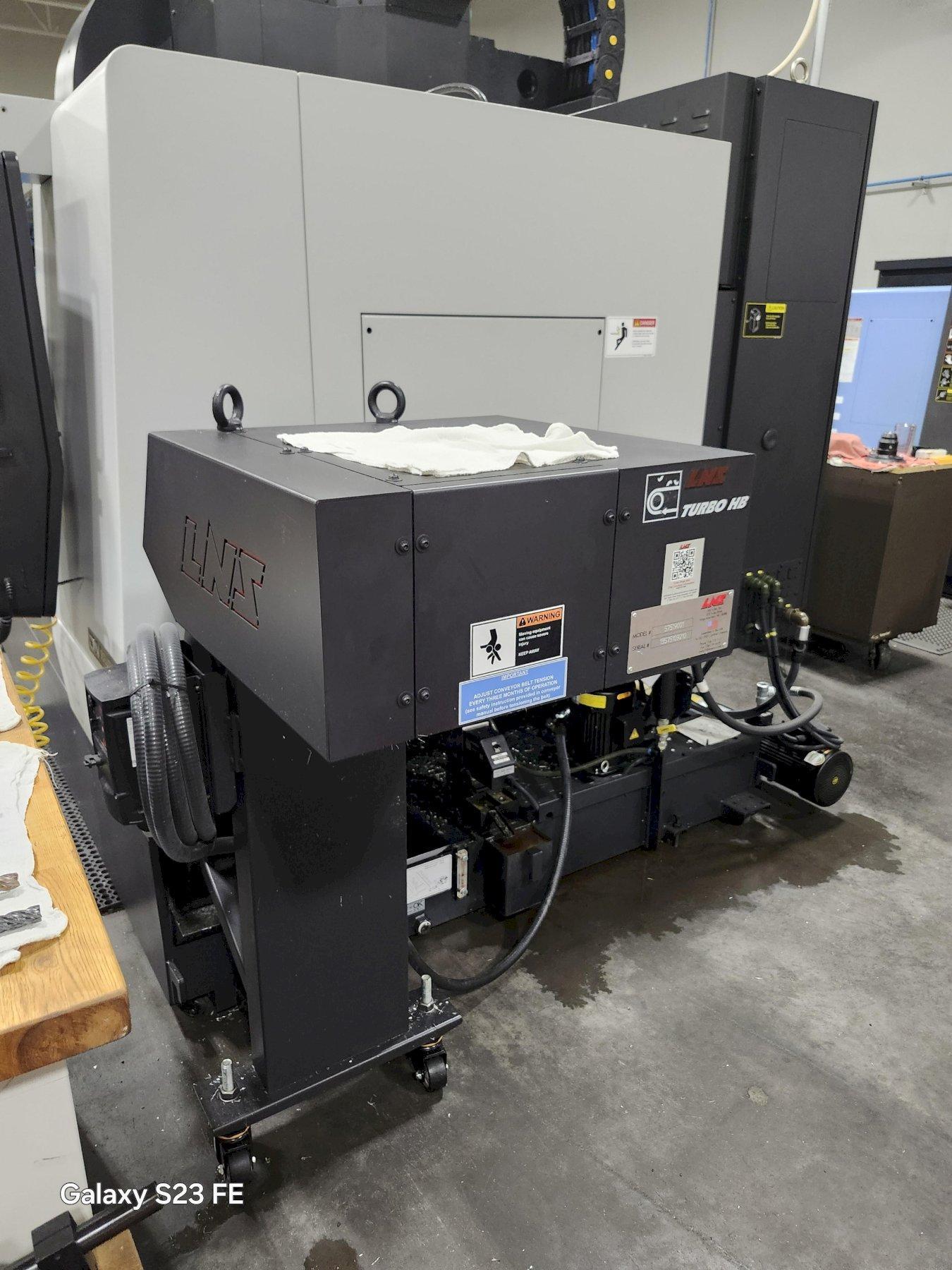

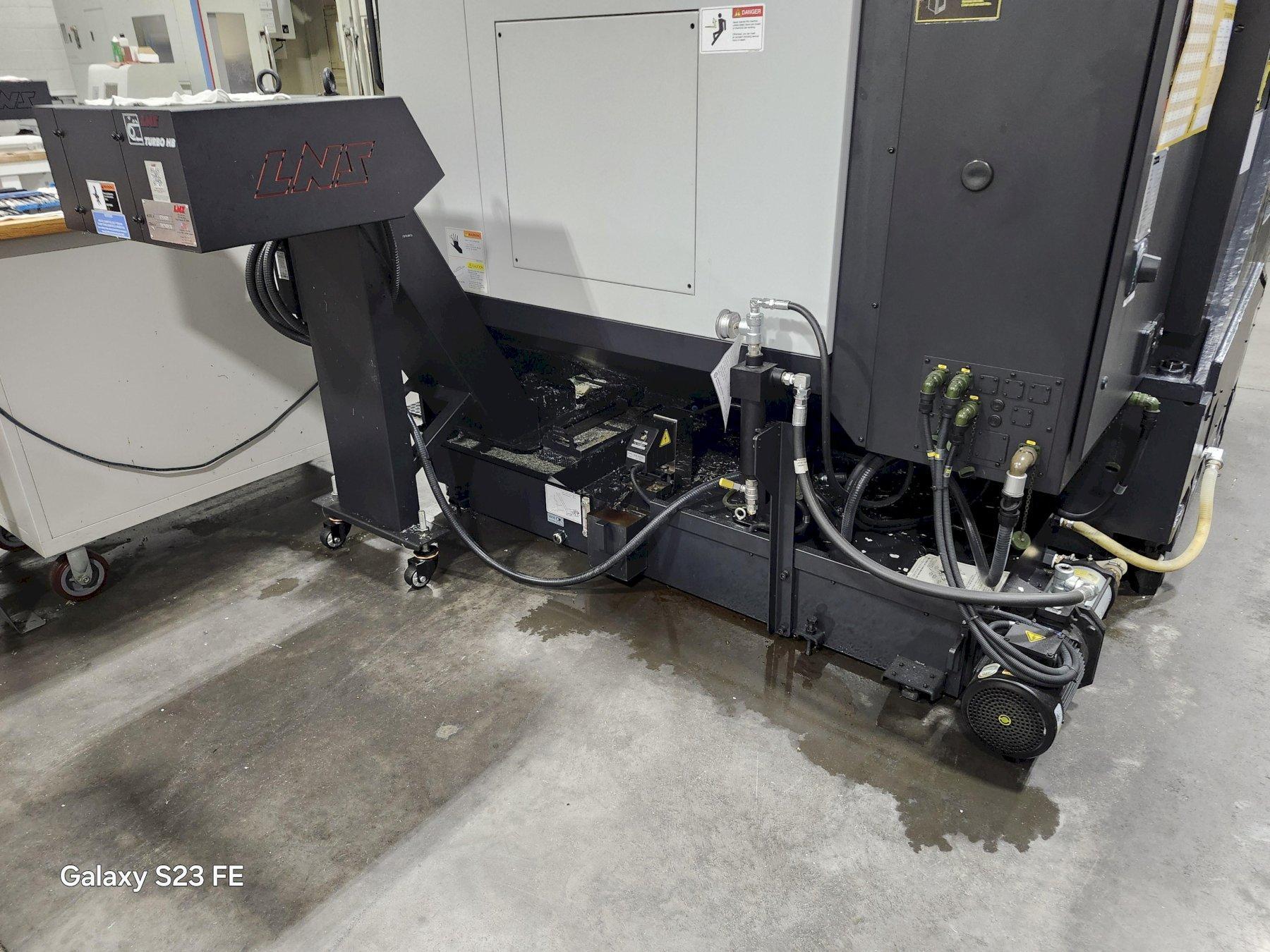

| DN Solutions Fanuc i Series Control Hand Wheel Pendant 15,000 rpm spindle Automatic Tool Changer Ball nut cooling Spindle thermal displacement control with multiple sensors Rigid Casting High Pressure Coolant (to be verified) Rigid Tapping (to be verified) Coolant Thru the Spindle (to be verified) Chip Conveyor Manuals |
