Brand
DN SOLUTIONS
Model

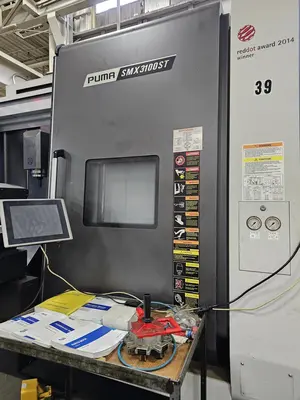

Puma SMX3100ST
Type
Lathes, CNC (3-Axis or More)
Stock #
56756
Condition
Like New
Year
2019
Highlights

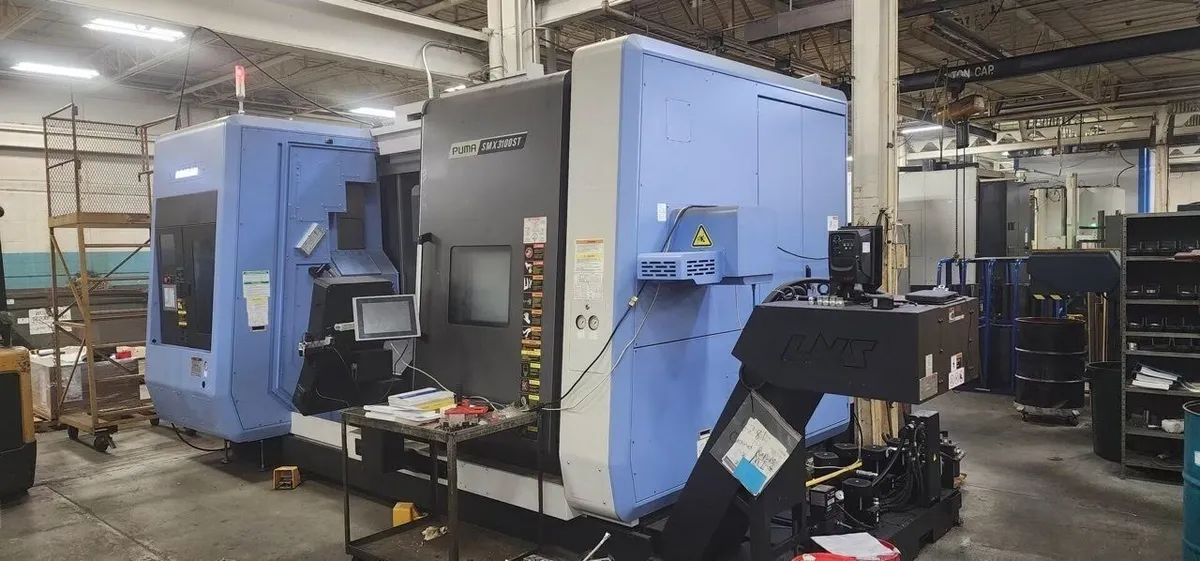

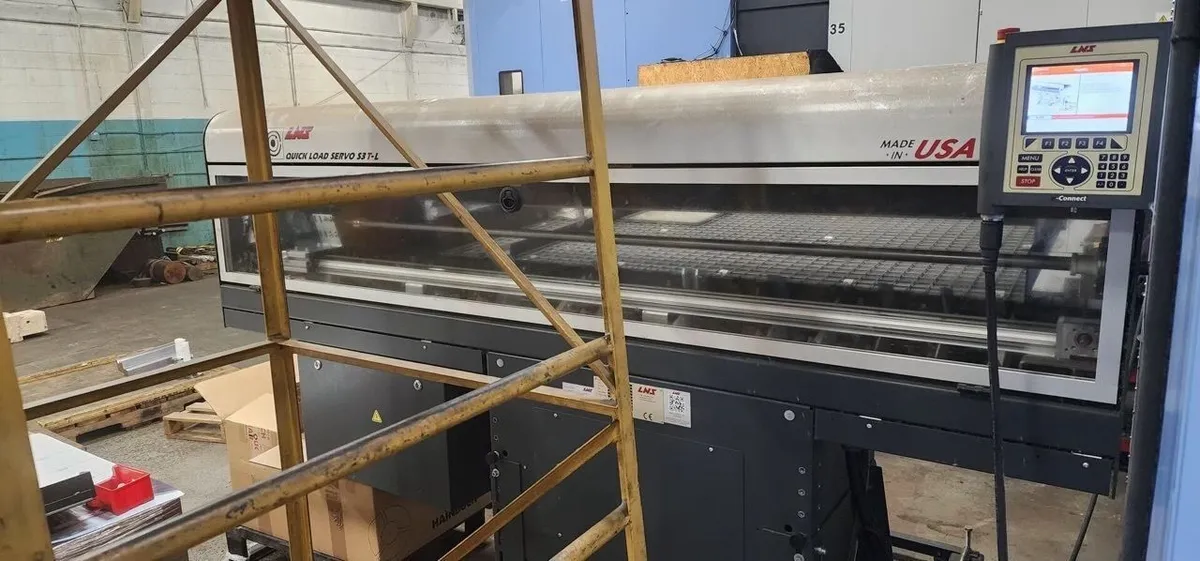

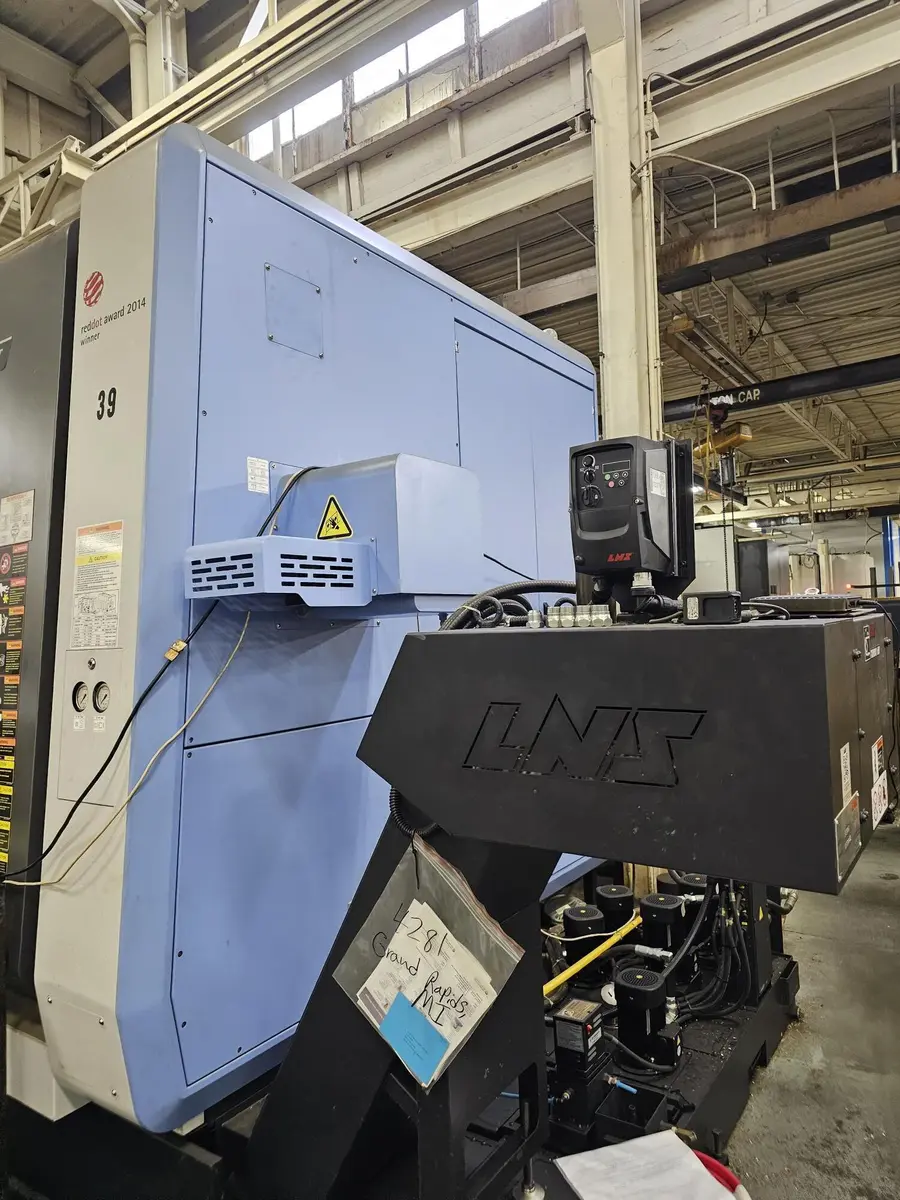

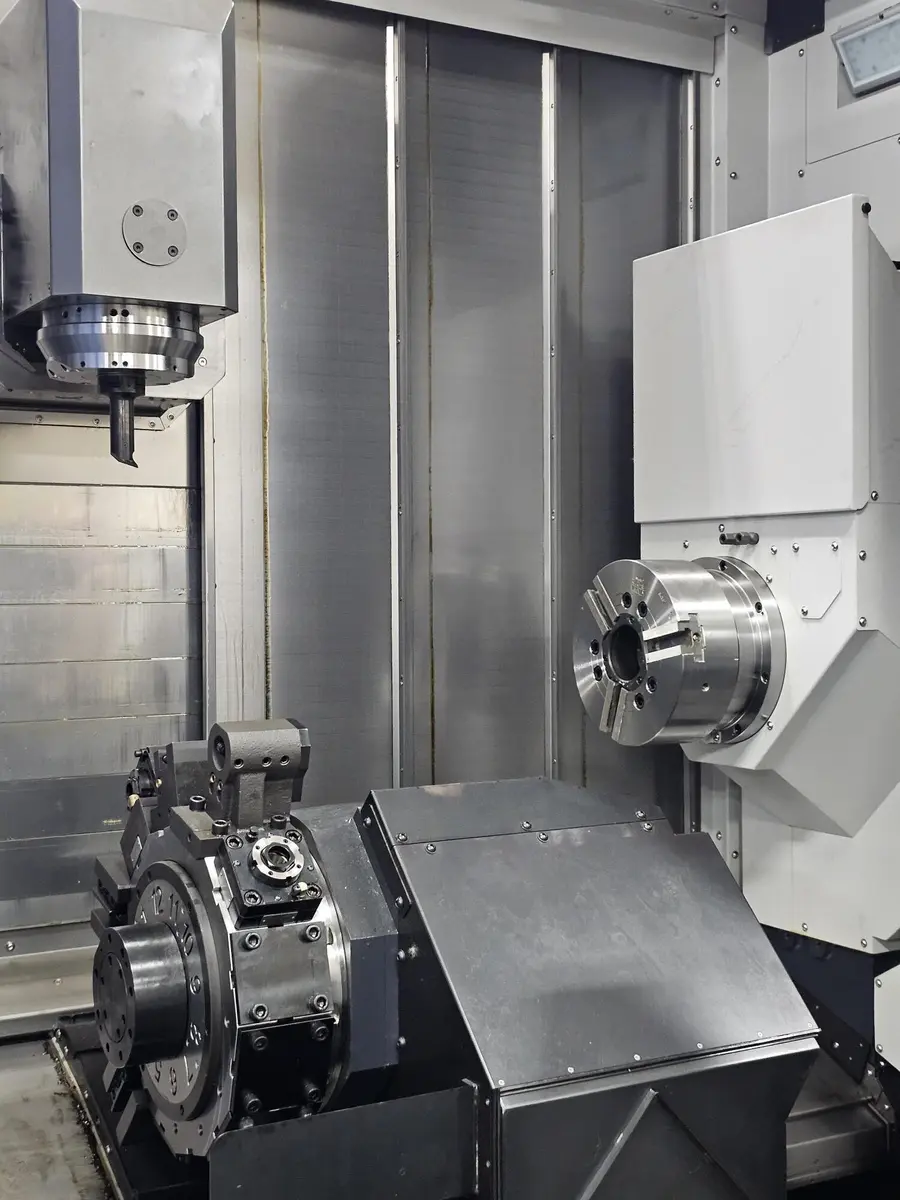

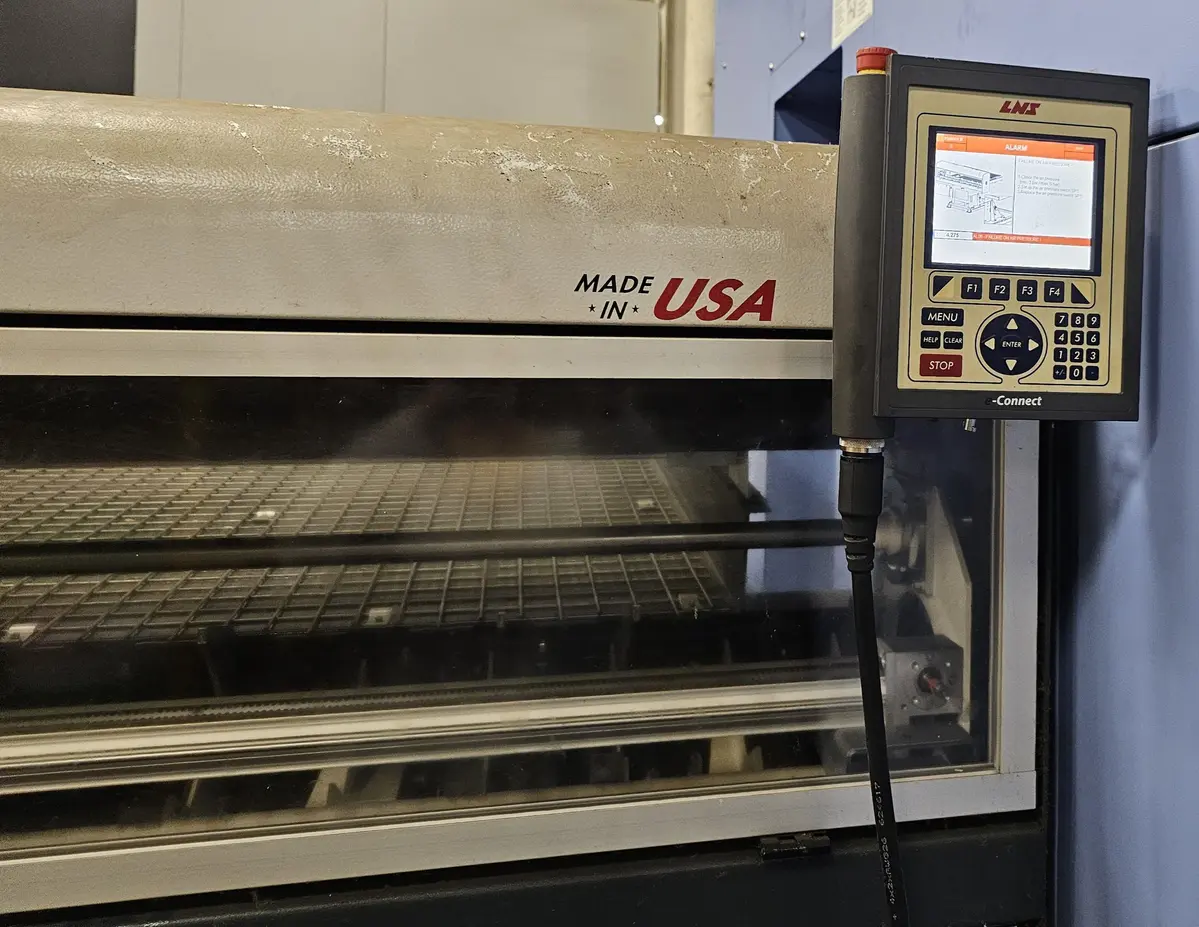

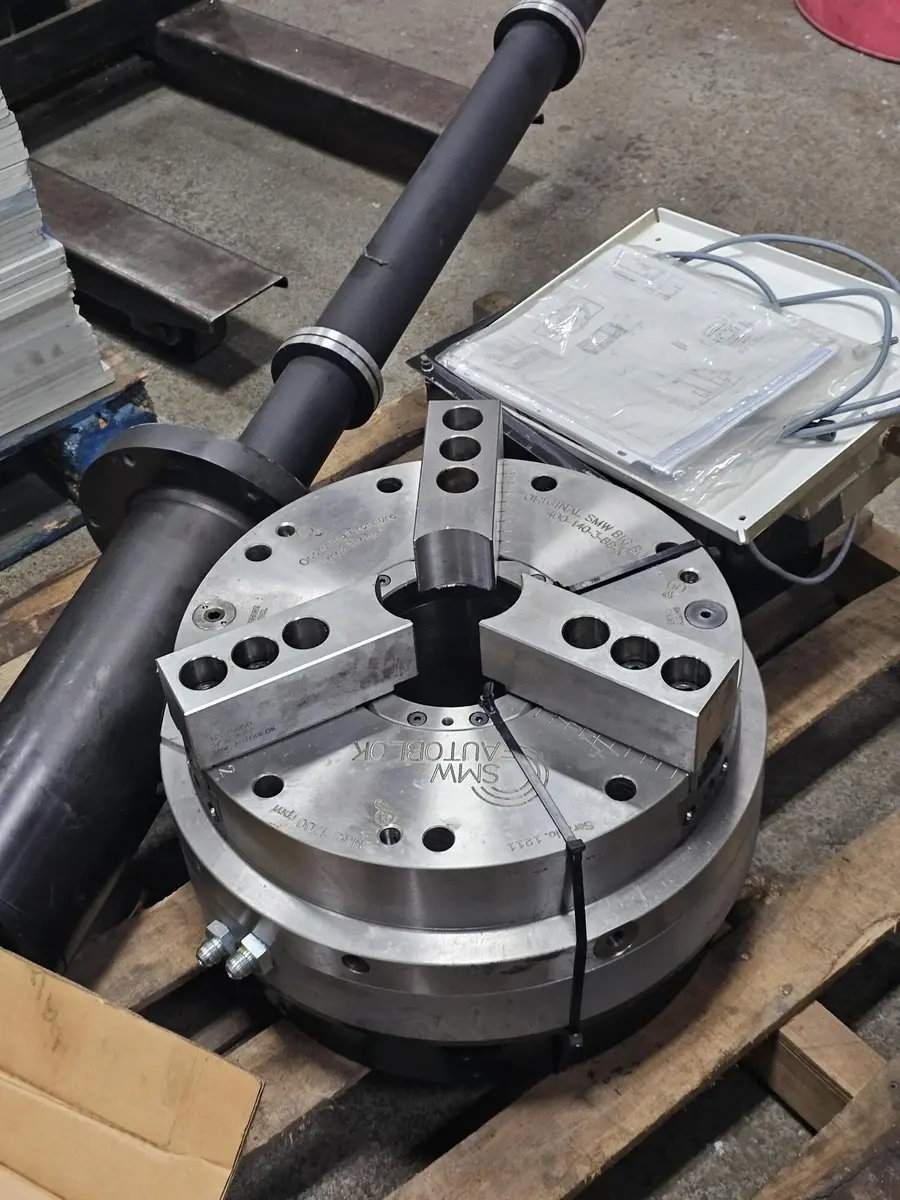

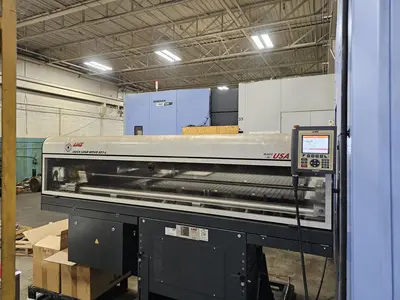

New in 2019 Never Ran Production, Never Tooled UP, Save Almost Half the Cost of a New Machine ! Mill-Turn Center with 12,000 RPM B-Axis Articulating Milling Head, 12 Station Live Tool Lower Turret, 80 Station ATC, Air Chuck with 5.5" bore, LNS Servo S3 T-L Quick Load Barfeed| CNC Control | yes |

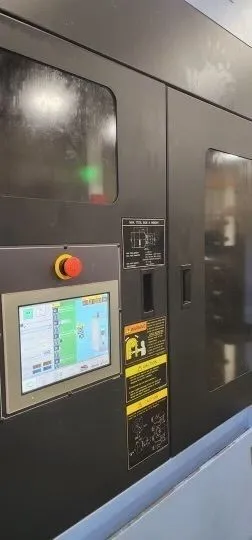

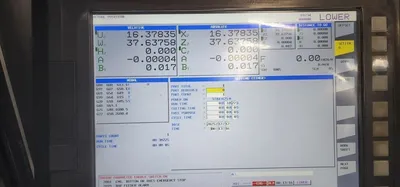

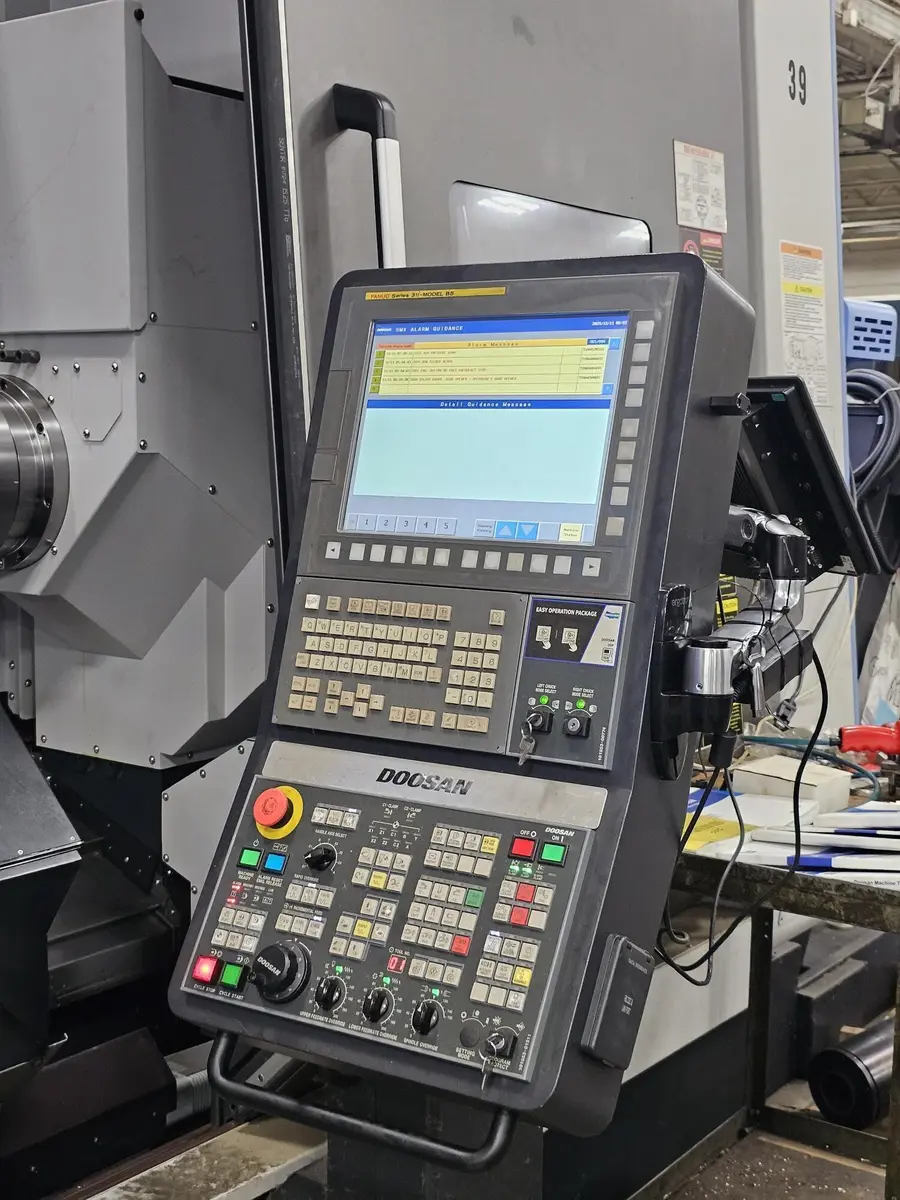

| CNC Control | Fanuc Series 31i-Model B5 CNC Control w/ Doosan Easy Operation Package |
| # Axis | 5 Plus |
| Max. Swing over Bed | Upper / Lower: 26" Max Turning/Machining Diameter (Main Spindle) |
| Center Distance | 60.6" Max Turning/Machining Length |

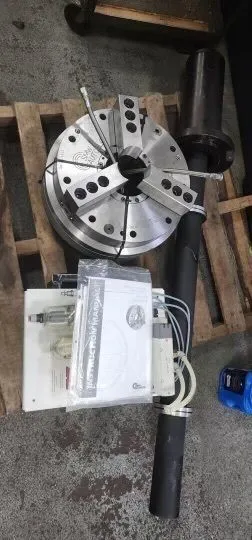

| Chuck Size | Samchully Hch-18 18" 3-Jaw Chuck |
| Bar Capacity | 4.1" Bore, Current Spindle Liner Setup Is Configured For 2.875" Bar Capacity |
| Main Motor | 40 Hp |
| Main Spindle Indexing: | Full C-Axis |
| X-Axis Travel | 27.4" |
| Z-Axis Travel | 62.4" |
| Y-Axis Travel | 11.8" |

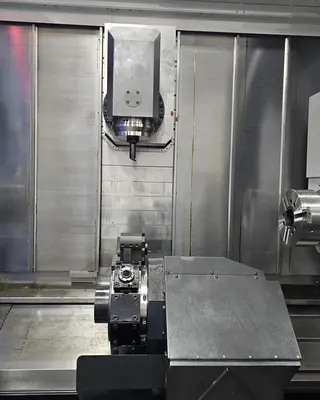

| B-Axis Head Tilt | +/- 240° |
| C1/C2 Axis Index | Full C-Axis |
| Spindle Speed | 3000 Max Rpm |
| Live Tooling | yes |
| Live Tooling Speed | 12,000 Max Rpm |
| Live Tooling Motor | 35hp |
| Milling Spindle Taper | Capto C6 Taper |
| ATC Stations | 80 Station ATC |
| Sub Spindle | yes |

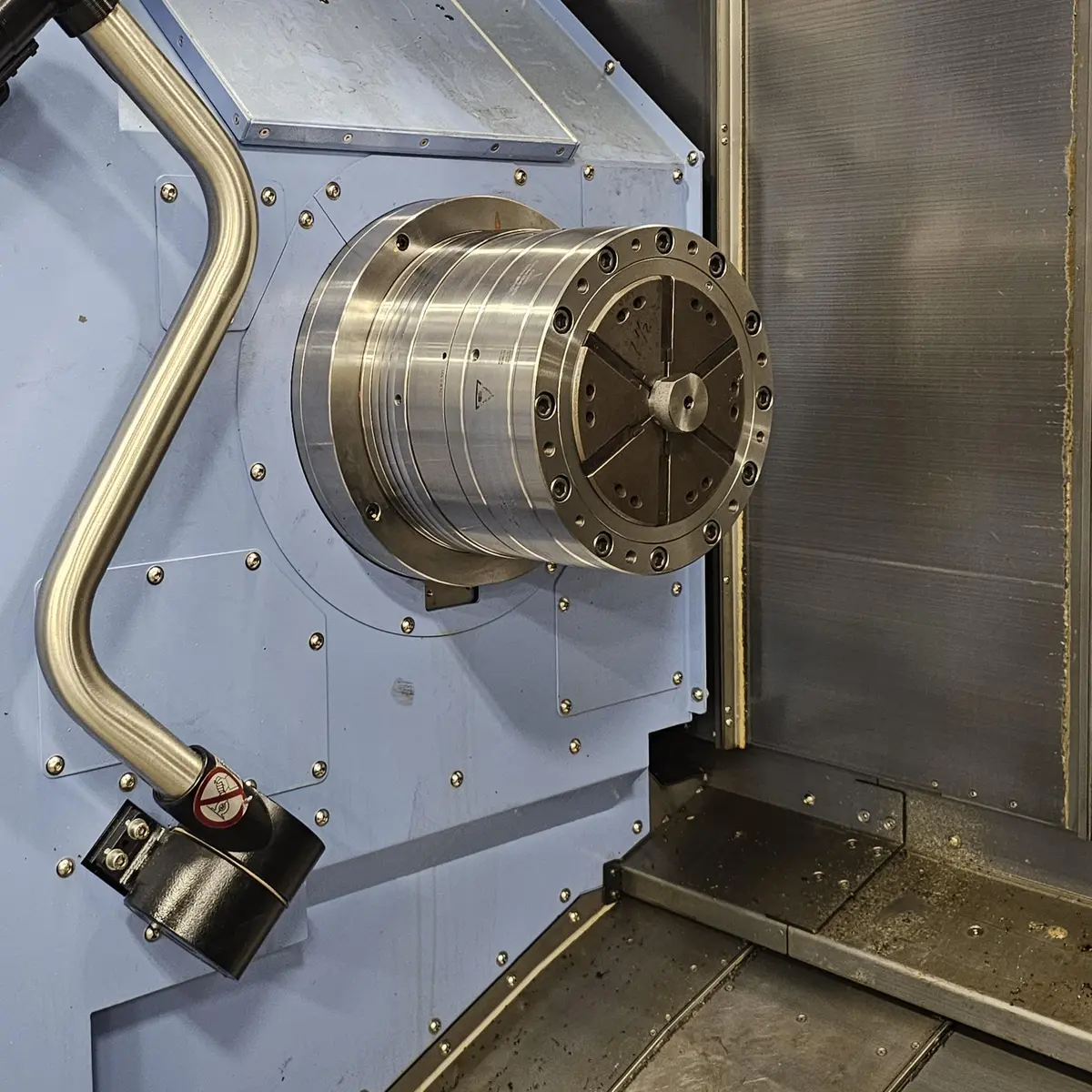

| Sub Spindle Chuck | Samchully Mh-212 12" 3-Jaw Chuck |
| Sub Spindle Speed | 4000 Rpm |
| Sup Spindle Motor | 35 Hp |
| Y-Axis | yes |
Equipped With: |
