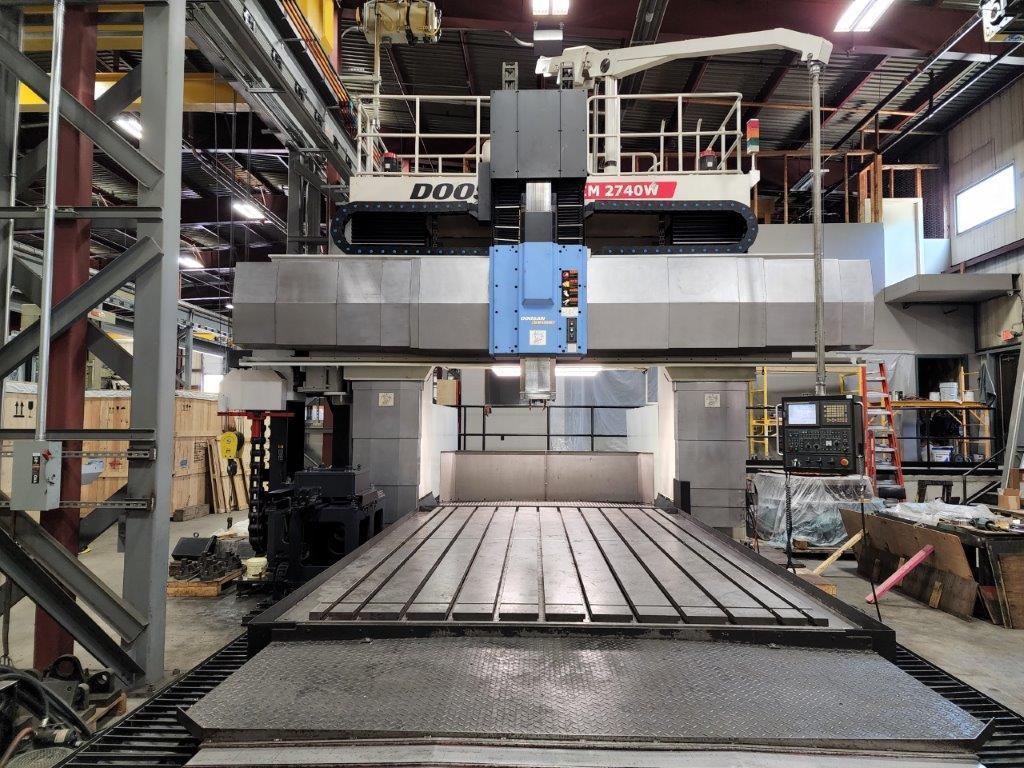

Doosan DCM 2740 Heavy Duty CNC Bridge Mill, New 2009
Brand
DOOSAN
Model
DCM 2740
Type
Machining Centers, Gantry (incld. Bridge & Double Column)
Stock #
56724
Condition
Very Good
Year
2009
Brand
DOOSAN
Model
DCM 2740
Type
Machining Centers, Gantry (incld. Bridge & Double Column)
Stock #
56724
Condition
Very Good
Year
2009
| Number of Axes | 5 |
| CNC Control | yes |

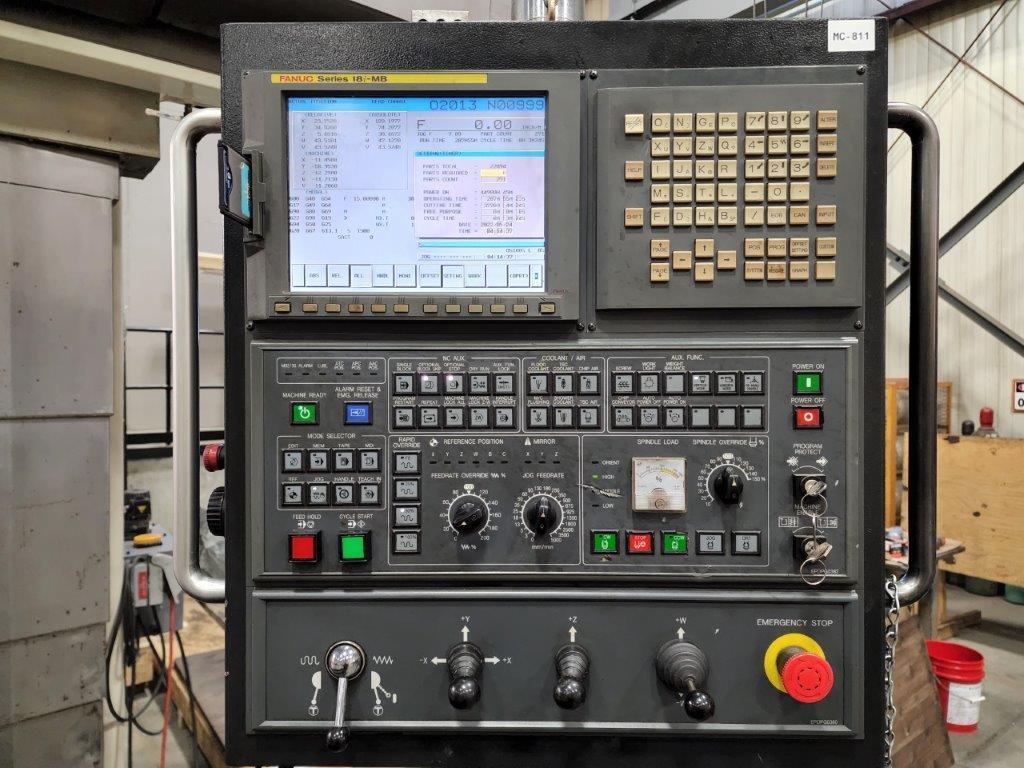

| Type of CNC Control | FANUC 18I-MB CNC CONTROLS |
| Table Size | 86.61" X 161.42" |
| Max Table Load | 39,683 LBS. |
| Effective Width Between Colums | 106.3" |
| X | 167.32 inches |
| Y | 125.98 inches |
| Z | 27.56 inches |
| W1 Axis | 43.31" |
| Max Distance Spindle To Table Top | 64.96" Working Height |
| RPM | 6000 |
| Number of Speed Ranges | 2 |
| Taper | BT-50 |
| # ATC | 40 |
| Dimensions | 440.9" X 304.3" |
| Machine Height | 266.75" |
| Weight | 143300 pounds |

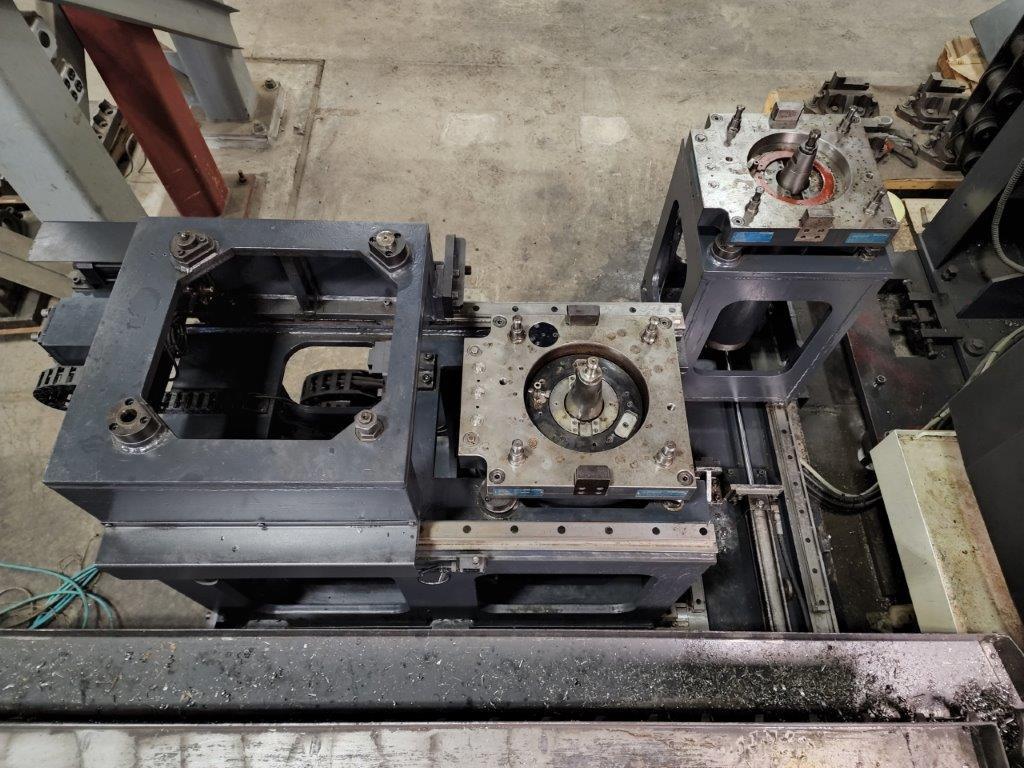

| Automatic Attachment Changer (ACC): | Yes |

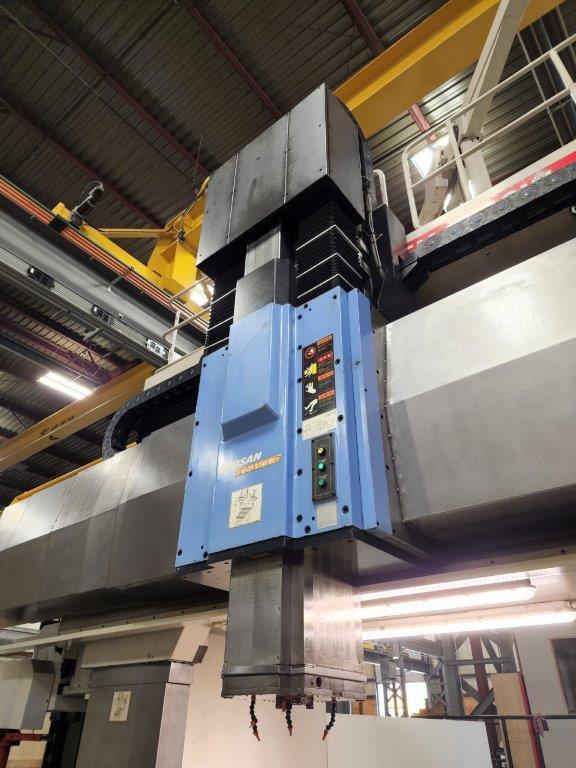

| 90-Degree, 3000 RPM, 5-Degree Head | yes |
| FANUC 18I-MB CNC CONTROLS ELEVATING RAIL 90 DEGREE MANUAL ROTATING HEAD 40-STATION AUTOMATIC TOOL CHANGER HEIDENHAIN SCALES ON X,Y & Z AXIS |
