Lucas Fermat BHM and BHMR Universal Cylindrical Grinding Machines

Brand
FERMAT

Model

Type
Grinders, Cylindrical, Universal

Stock #
BHM/BHMR

Condition
New

Year

Location
City Not Specified,

Specifications

Equipped With

The Lucas Fermat BHM and BHMR Universal Cylindrical Grinding Machines

The Lucas Fermat BHMR is a fully CNC controlled grinding machine with controlled axis X (grinding wheel head in-feed) Z (longitudinal table feed) and controlled axis C (grinding wheel peripheral speed) and controlled axis B that can be equipped with up to 3 grinding tools and so enables a very high productivity.


The Lucas Fermat BHM is a fully CNC controlled grinding machine with controlled axis X (grinding wheel head in-feed) Z (longitudinal table feed) and controlled axis C (grinding wheel peripheral speed).


Both BHM and BHMR-

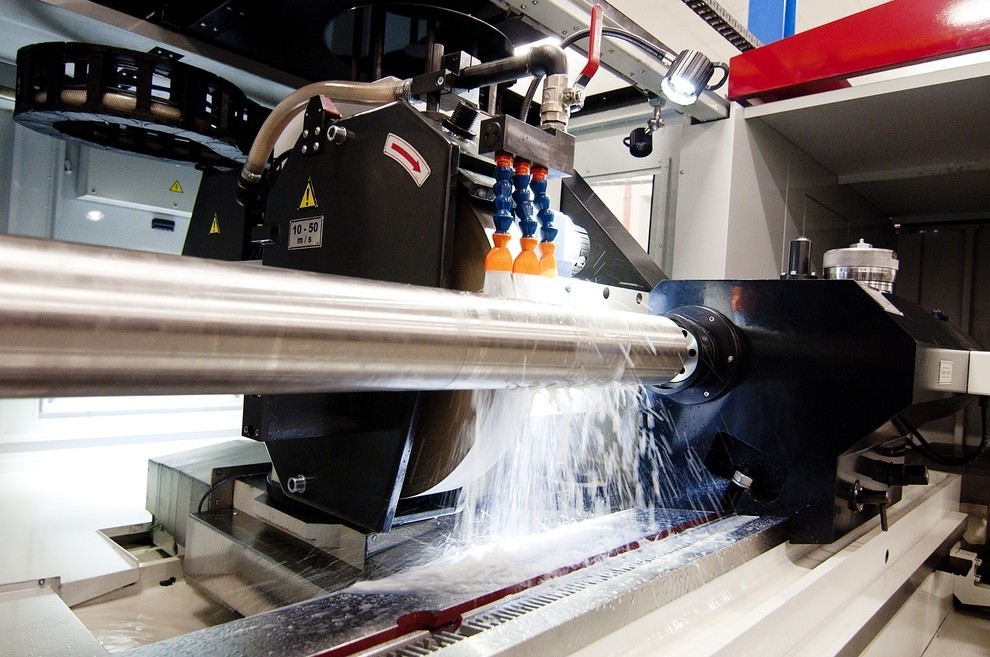

these grinders are designed for controlled grinding of rotation cylindrical and conical external surfaces of medium-weight workpieces by longitudinal or plunge-cut grinding methods. As a matter of course form grinding and grinding of various transitions among different diameters can be performed. The grinder also allows grinding of face surfaces and grinding of cylindrical and conical internal holes with the use of internal grinding attachments. The workpieces may be clamped between centers or by flying-mode into the chuck. The drive headstock as well as grinding wheel head may be inclined for grinding cones. It is possible to grind either at the centers or in the flying-mode with the workpiece clamped in the chuck or on the magnetic plate.


The grinding wheel head and table are moved in the line by ball screws and servomotors. The BHMR CNC is designated for workpieces weighing up to 1 000 kg.


Both the BHM and BHMR can be additionally equipped with automatic balancing system in-process gauge axial probe super finish attachment automatic (electric) rests XZ ruler etc.
