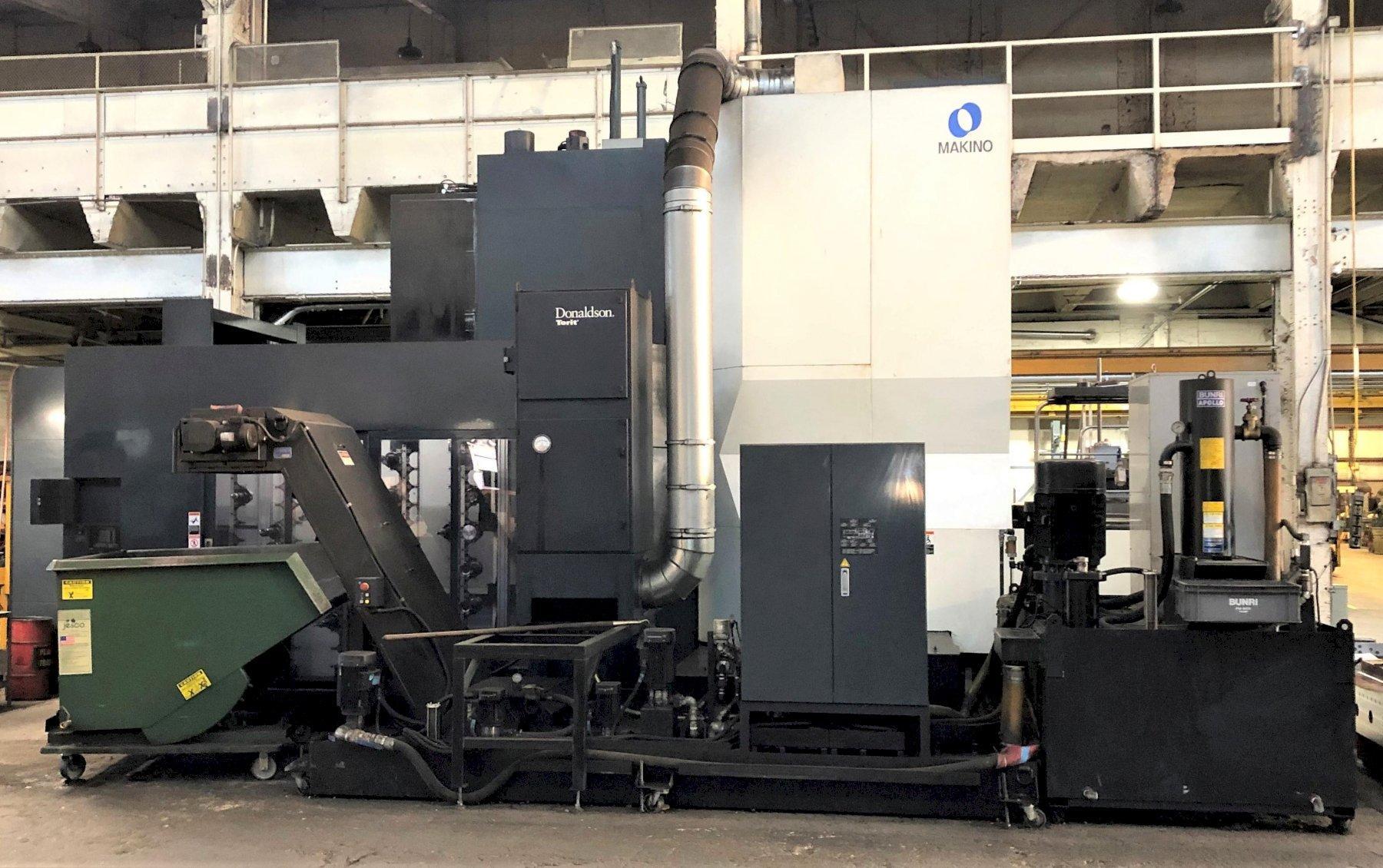

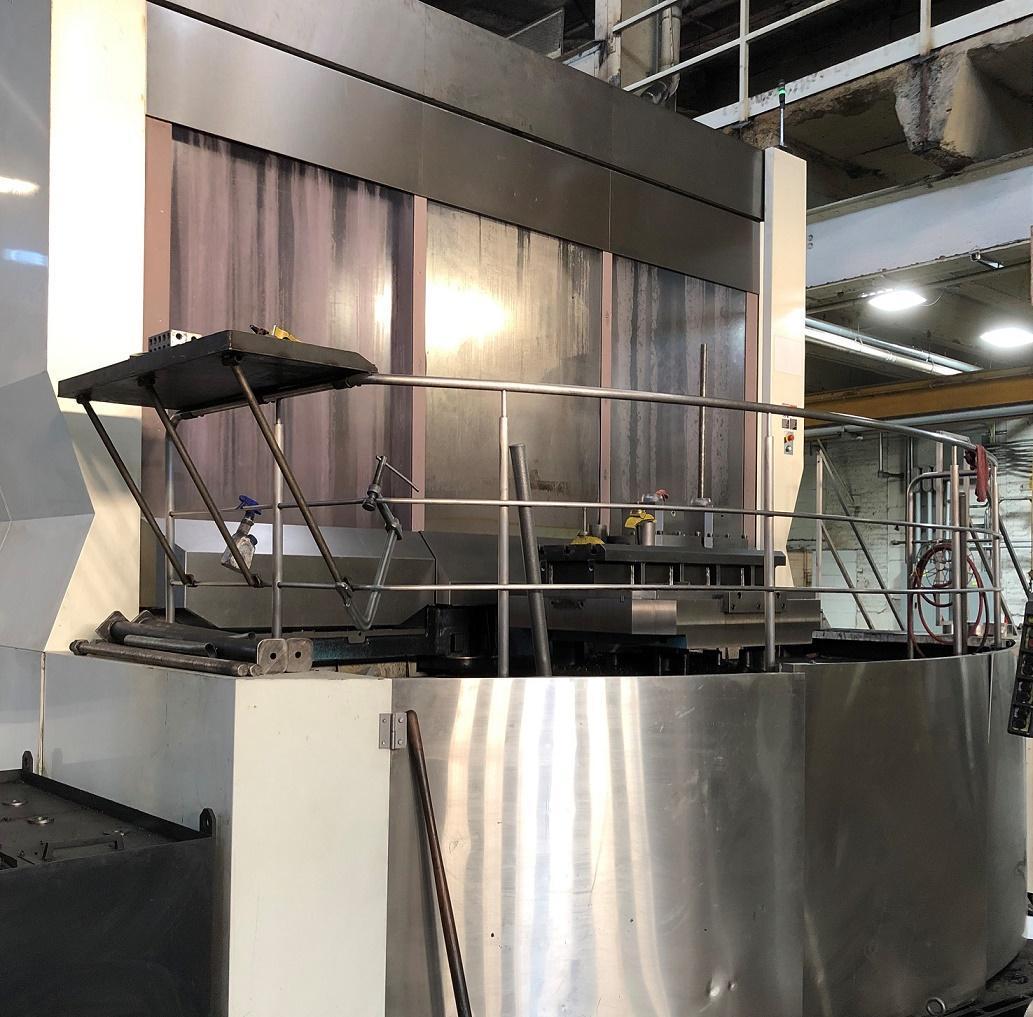

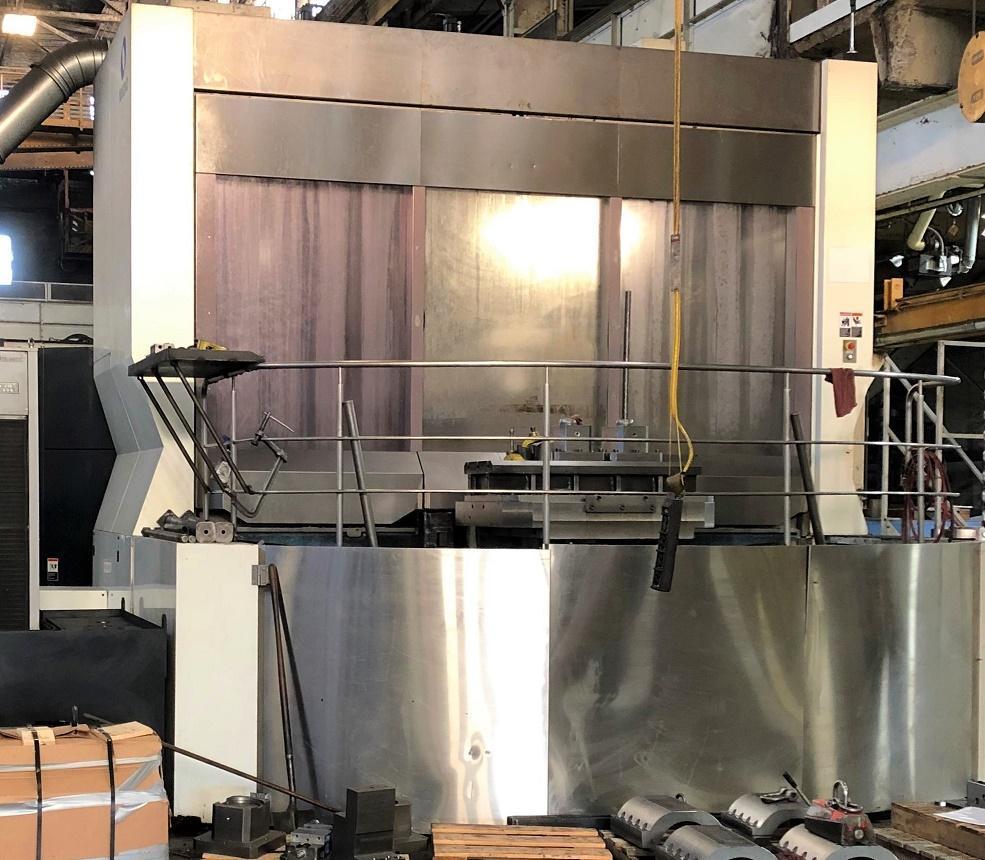

2014 MAKINO T2 5 AXIS Horizontal Machining Center Built for Titanium Milling

 Makino’s new T2 5-axis horizontal machining center dramatically increases titanium-milling machining-process/>efficiency, combining lean manufacturing methods and increased metal-removal rates for today’s aerospace applications. It is specifically designed for the production of large titanium and titanium-alloy aerospace parts such as edge frames, pylons and bulkheads. The T2 includes several key elements for efficient titanium milling, including an Active Dampening System, rigid construction for enhanced performance, a high-torque, high-powered spindle, and a high-pressure, high-flow coolant system for increased speed and productivity.

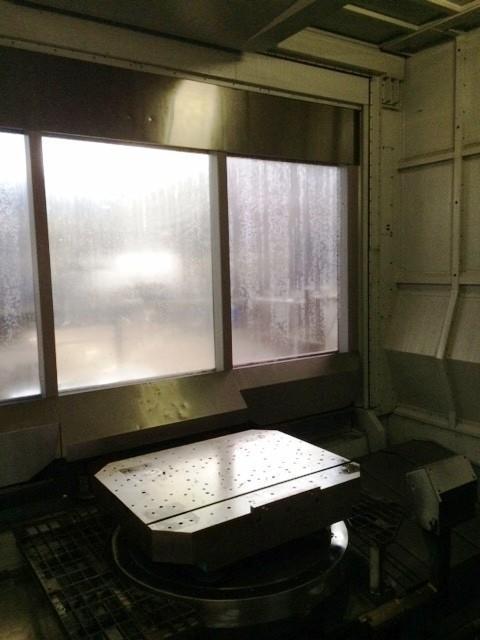

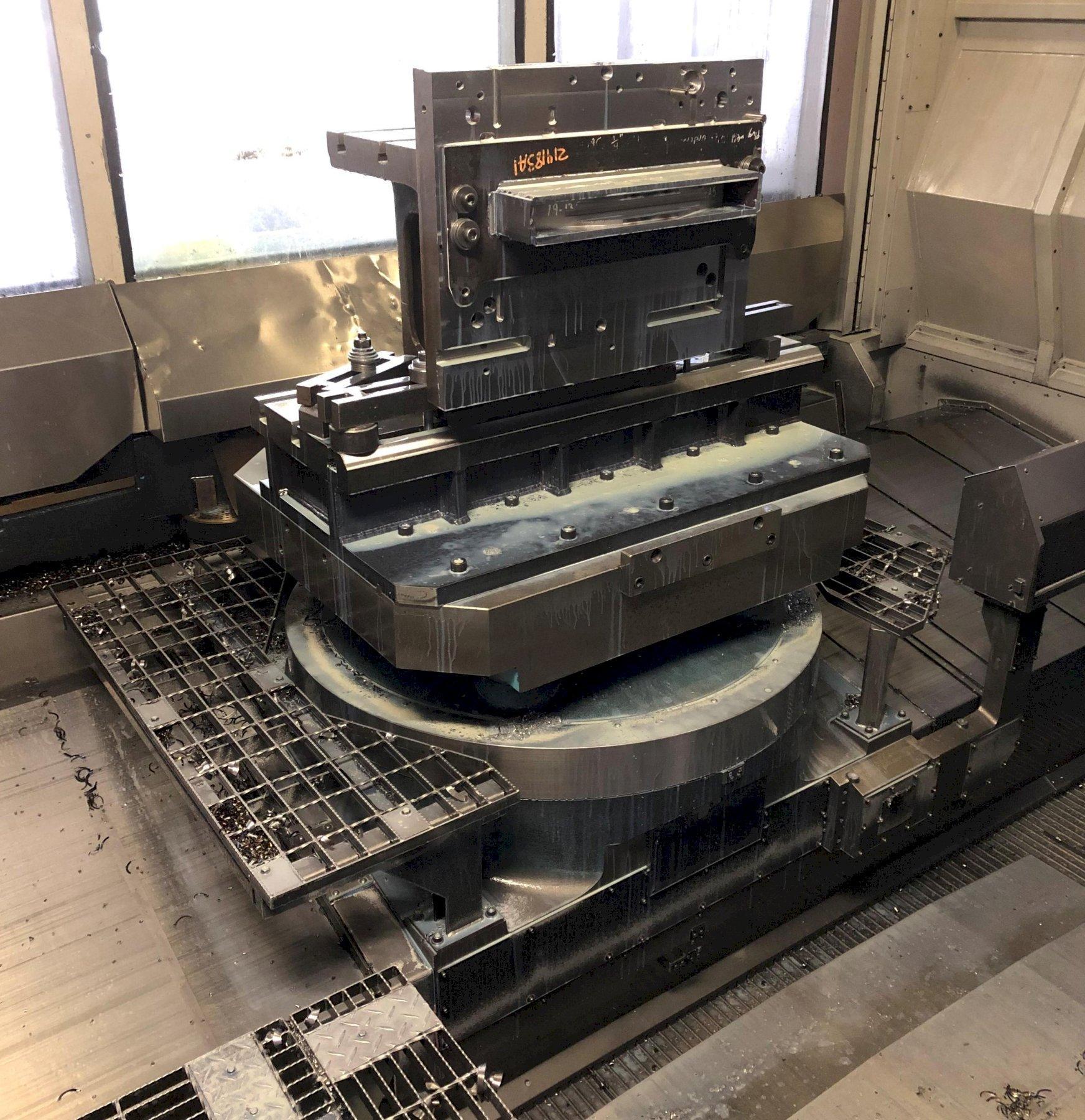

 Pallet     39.4" x 49.2"

X     78.7"

Y     78.7"

Z     70.8"

A Axis     +/- 110°

B Axis     360° infinite

C Axis     360° infinite

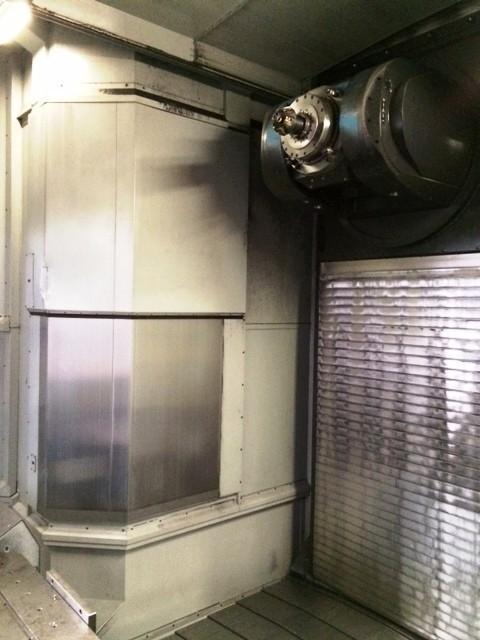

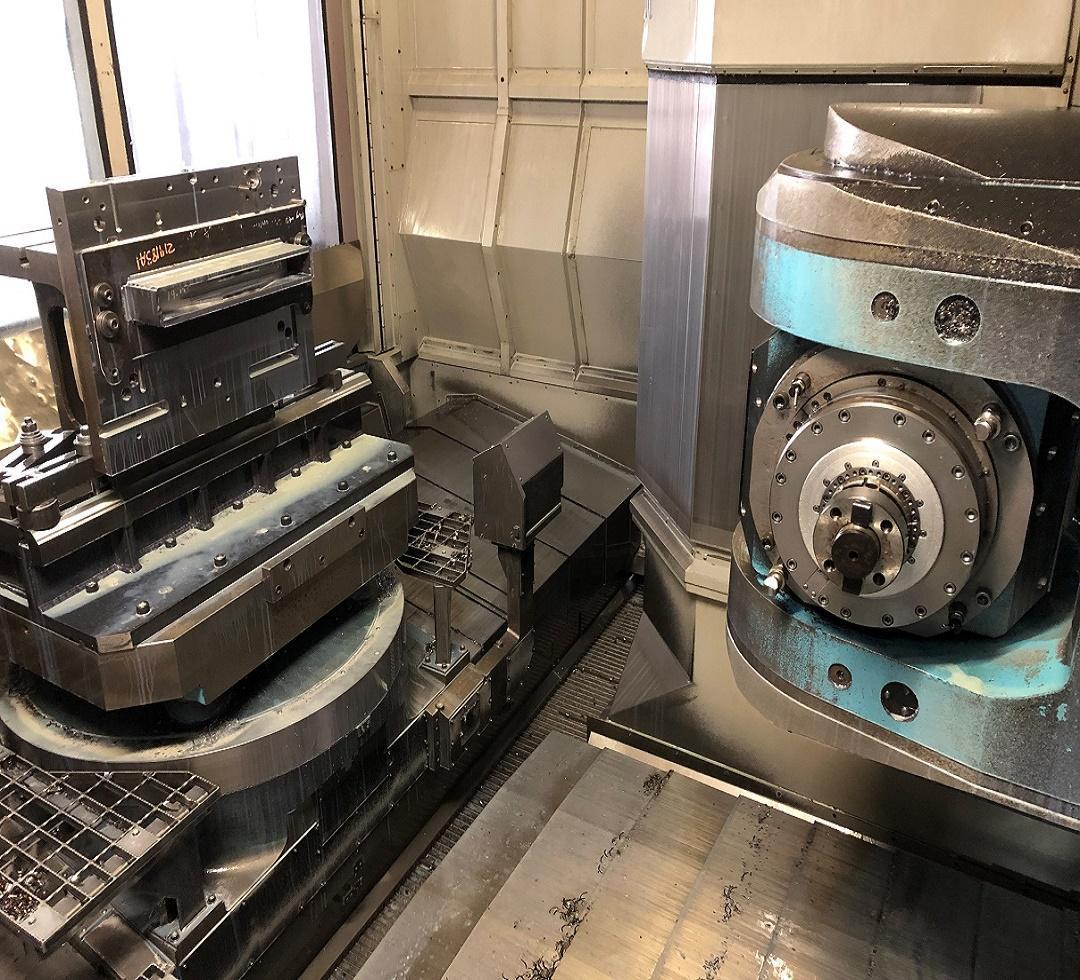

Spindle RPM     4,000 RPM - 133 HP/738 ft-lbs cont. (opt. 8,000)

Rapid Traverse     787 ipm

Cutting Feedrate     630 ipm

Maximum Workpiece     ø74.8" x 78.7"

Maximum Payload     11,022 lbs

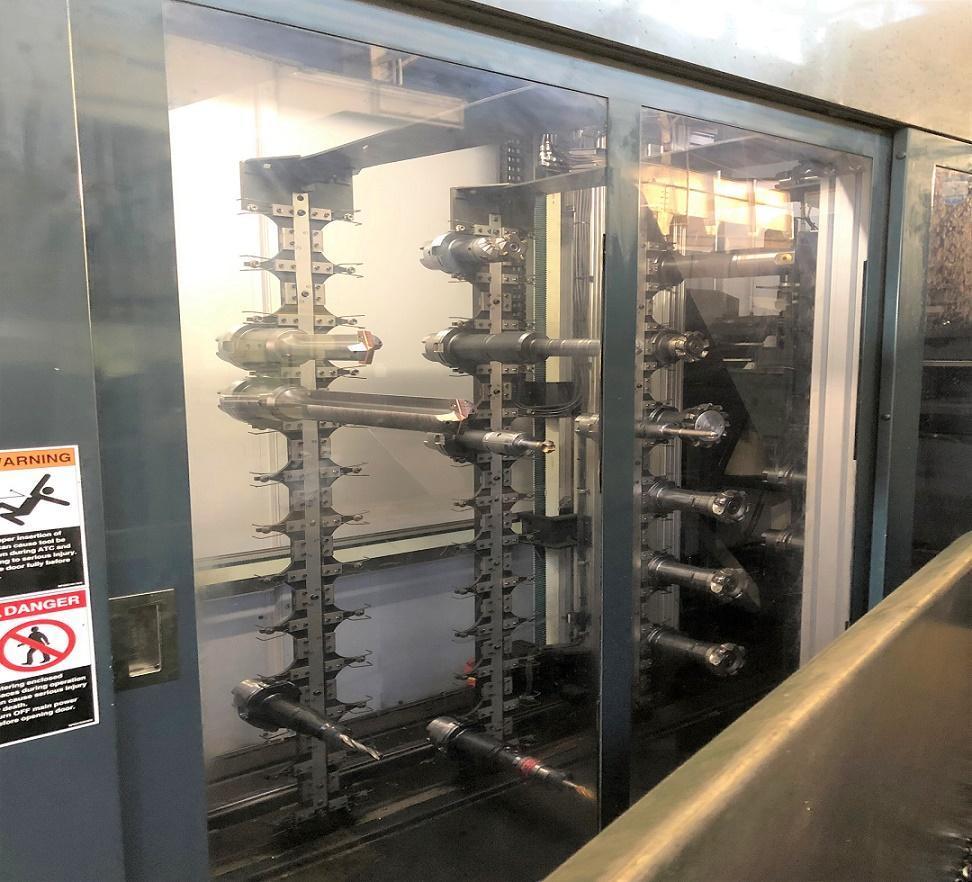

ATC Capacity     120 tools (optional 190 tools)

Tool to Tool     20 sec

Chip to Chip     40 sec

Maximum Tool Length     23.6"

Maximum Tool Diameter     11.8"

Maximum Tool Weight     66 lbs

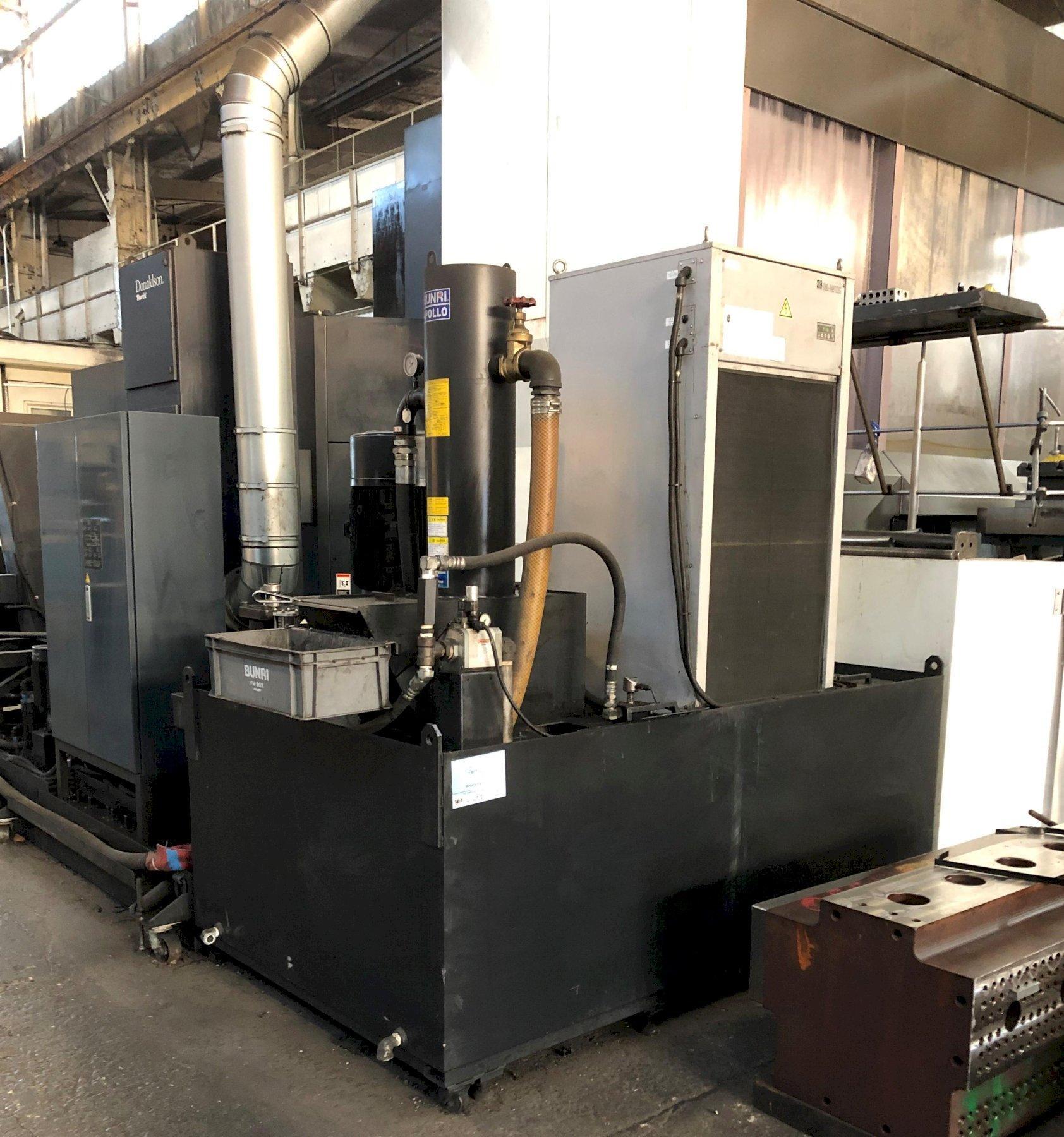

Through Spindle Coolant     1,015 psi @ 52.8 gal/min

Nozzle Coolant     217 psi @ 13.2 gal/min

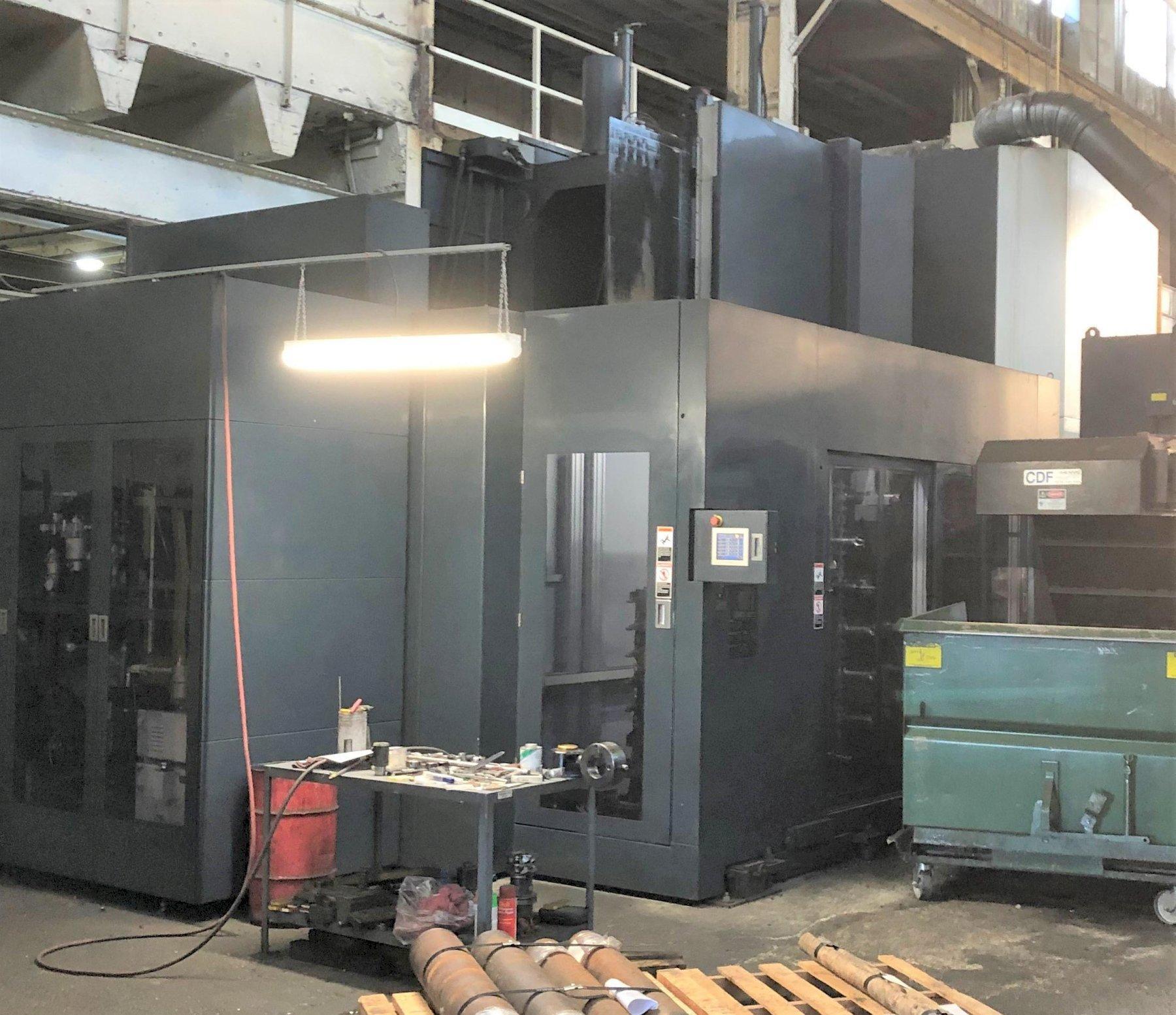

EXCELLENT CONDITION: in plant under power
