Mandelli Rumble 6000 CNC Machining Center

Brand
MANDELLI

Model

Type
Machining Centers, Vertical

Stock #
Rumble 6000

Condition
New

Year

Location
City Not Specified,

Specifications

Equipped With

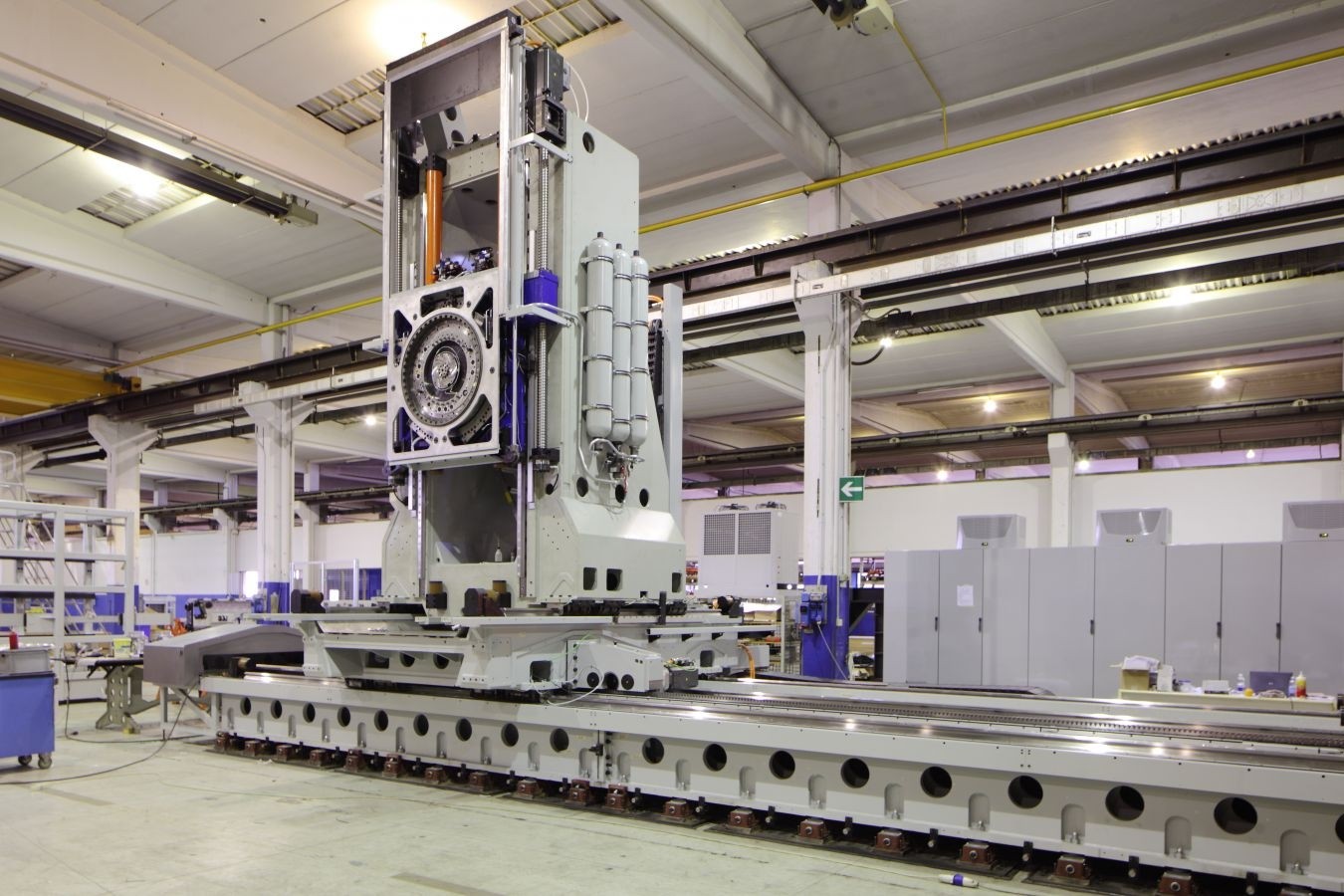

The Rumble 6000 is an HMC specifically designed to maximise the stock removal on the special structures used in the aerospace field having 1000 x 6000 mm max overall dimensions and up to 8000 kg. in weight.




























































Specifications Unit Rumble 6000
X axis travel mm (inch) 6000
Y axis travel - Optional* mm (inch) 2000-3000* (787-1181*)
Z axis travel mm (inch) 1250 (492)
Accuracy mm (inch) 0010 (00004)
Repeatability mm (inch) 0004 (000016)
Rapid Feedrate mm/min (ipm) 40000 (1575)
Max Load on Pallet Table kg (Lb) 8000 (17637)
Continuous Torque (S1 - 100%) Nm (Lbf ft) 2000 (1475)
Spindle Taper   CAT 60 - HSK 160
N° Tools   100-200-300

Options available:

MEASURING PROBE



The 3D measuring probe available on our HMCs is very compact and can be employed in the hardest working conditions. It is automatically loaded by the tool magazine where it is housed and its efficient radio transmission system guarantees the work-piece geometrical data to be transmitted fast to the NC.


TOOL INTEGRITY CONTROL


It is a direct contact tool integrity sensor mounted on the rack tool magazine which allows tools to be controlled in concealed time.


AIR FILTER EXTRACTORS


It is the aspiration system extracting the fumes generated by the pressurized coolant. The aspiration occurs inside the HMC box and it is extremely important to protect the working area but mainly the operator's health.
