Mandelli Spark X 1300 CNC Horizontal Machining Center

Brand
MANDELLI

Model

Type
Machining Centers, Vertical

Stock #
Spark X 1300

Condition
New

Year

Location
City Not Specified,

Specifications

Equipped With

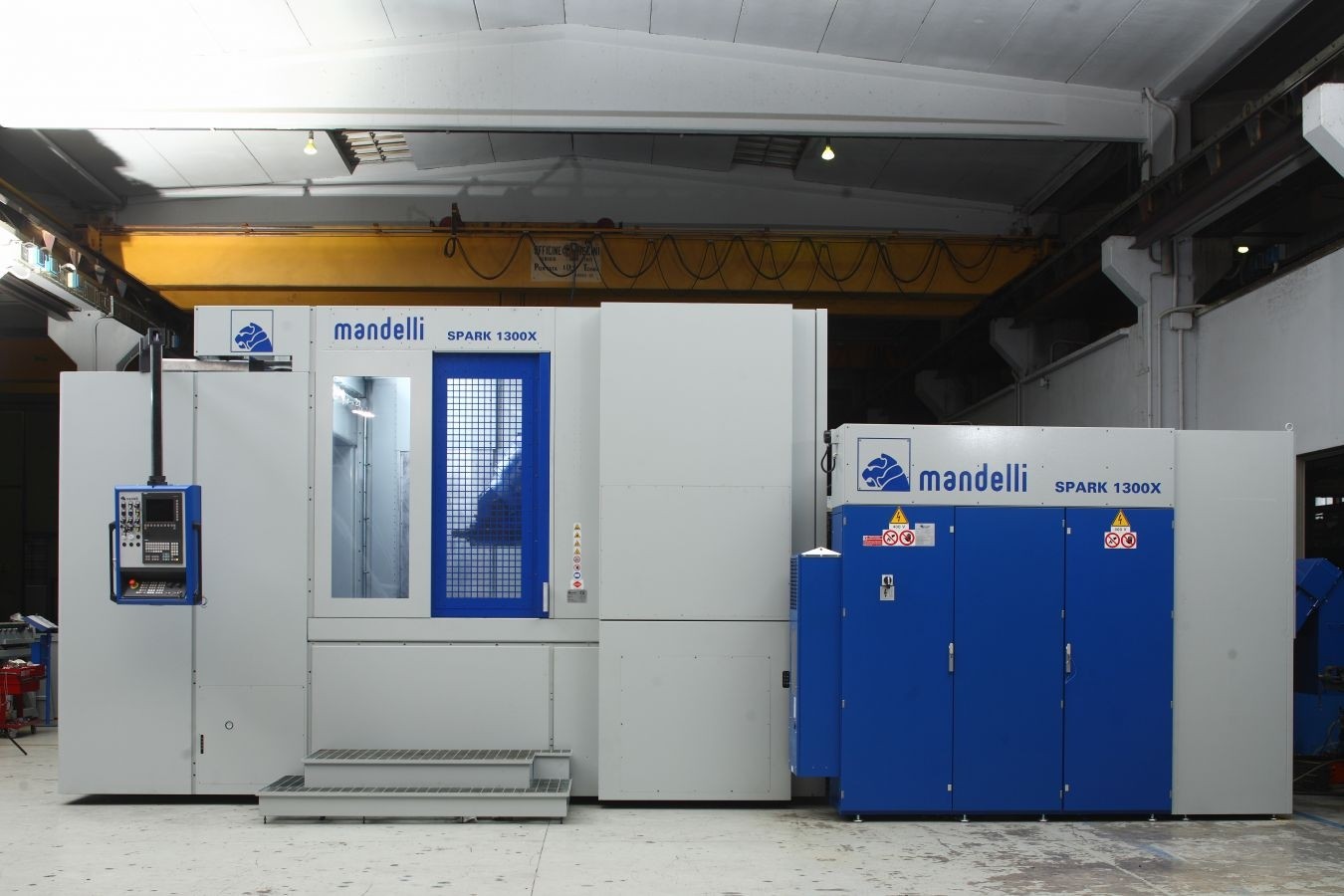

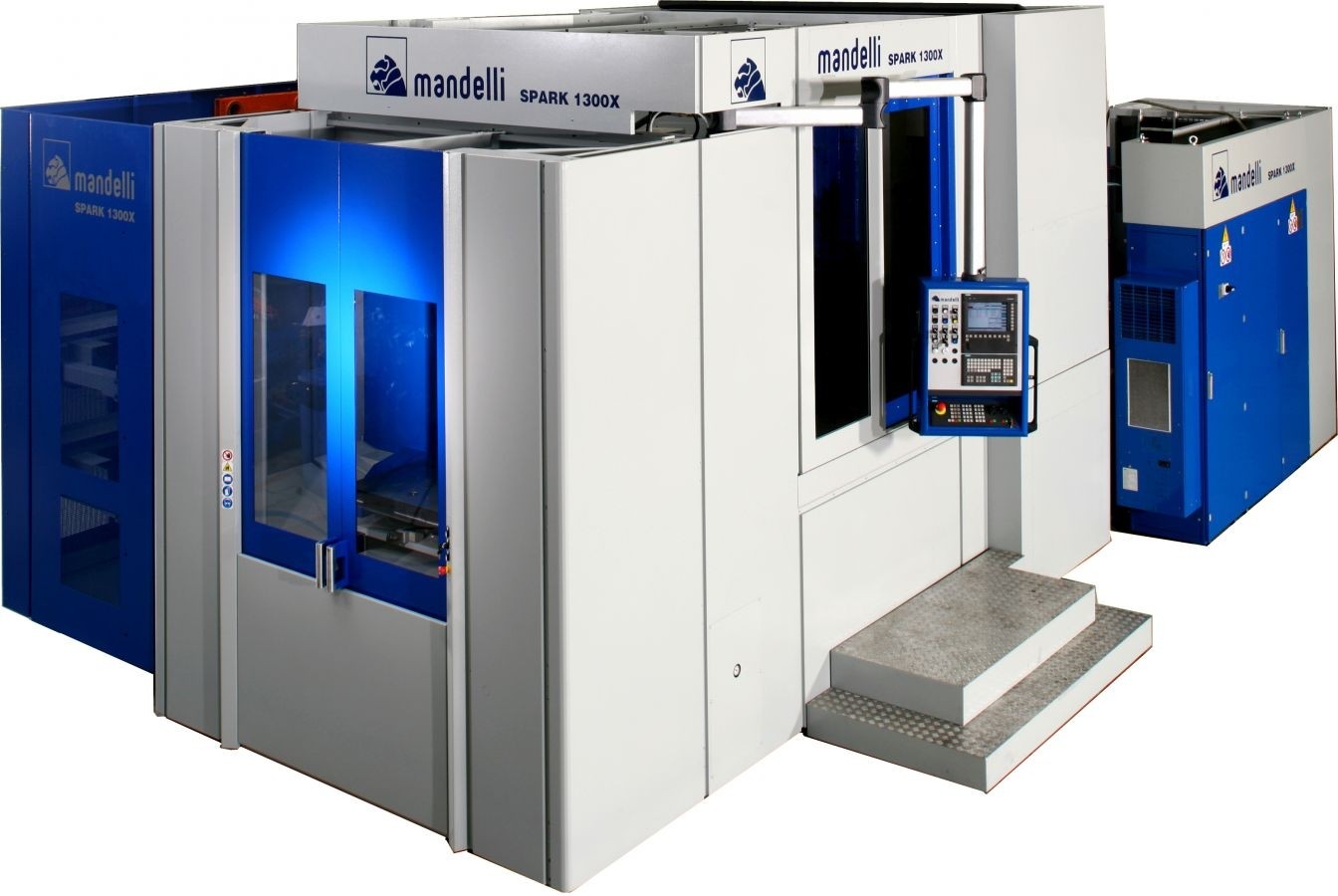

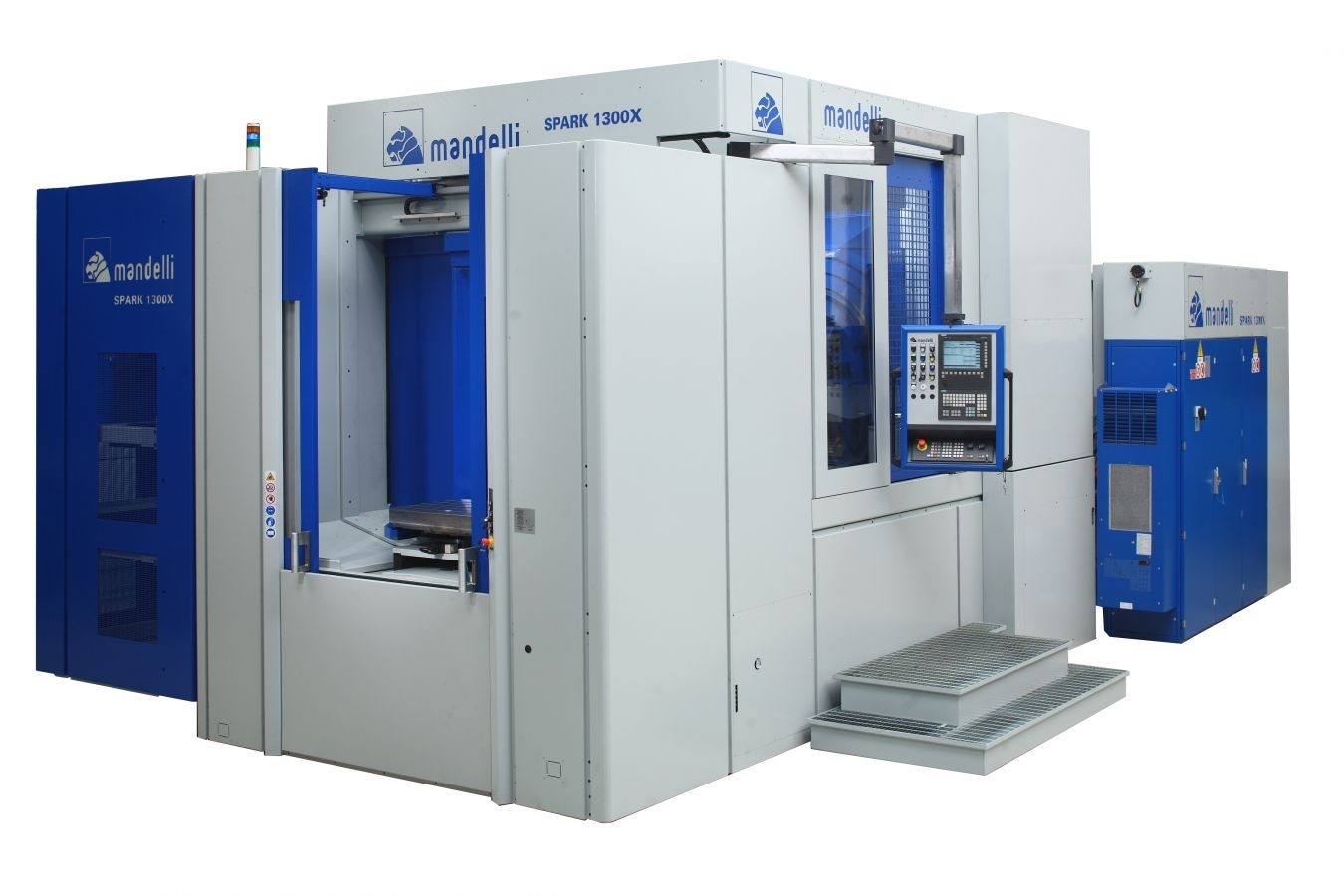

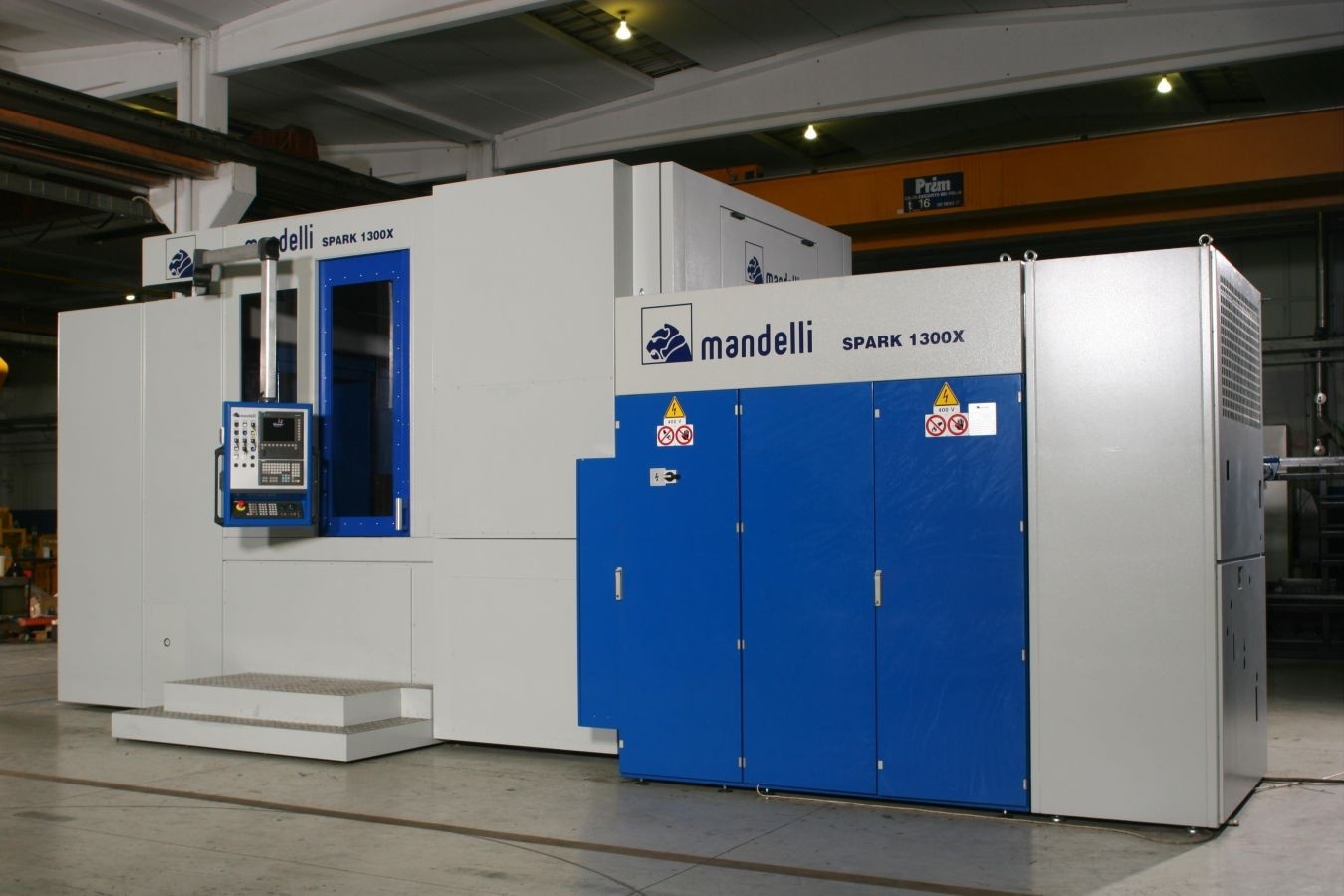

Mandelli Spark 1300 CNC Horizontal Machining Center

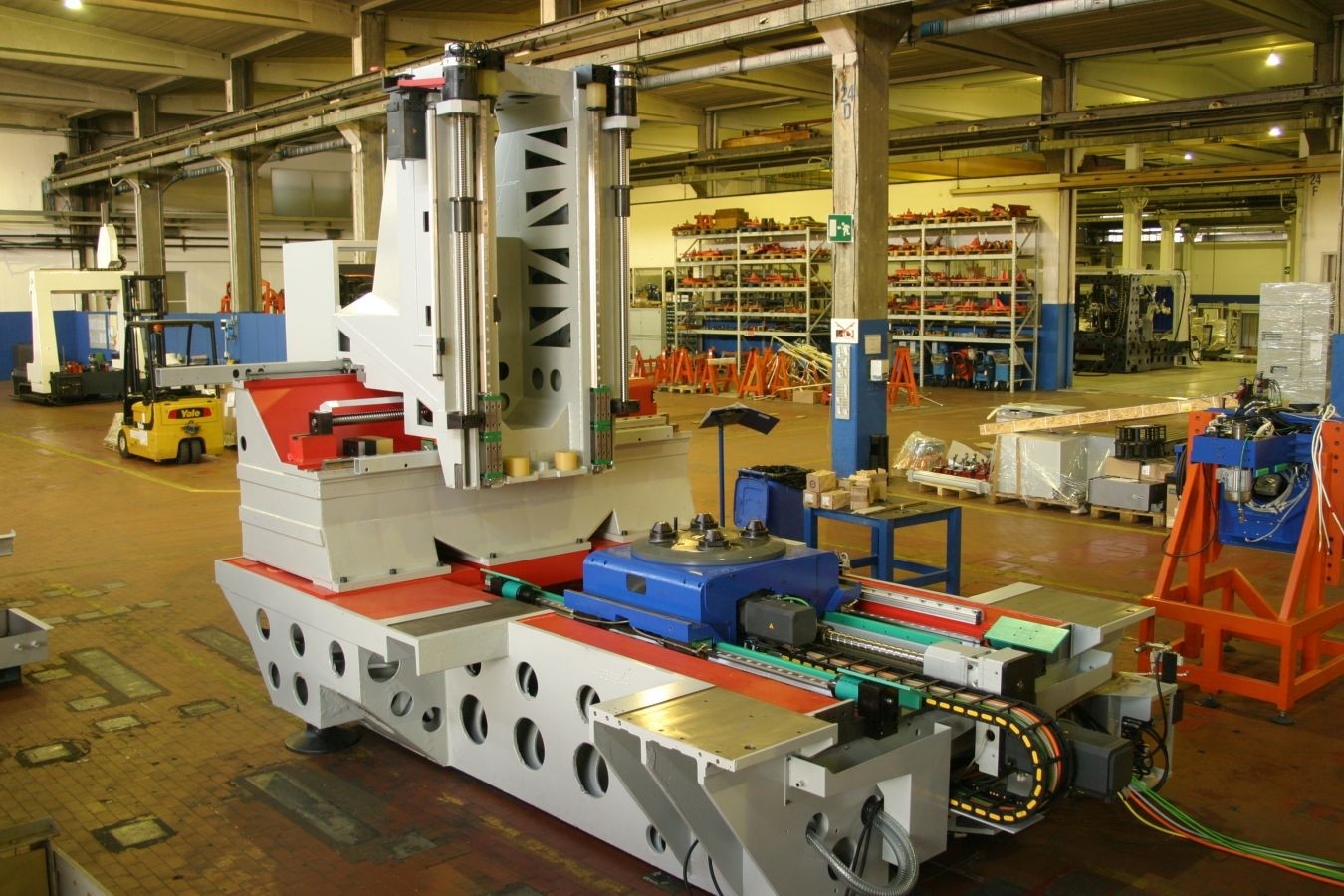

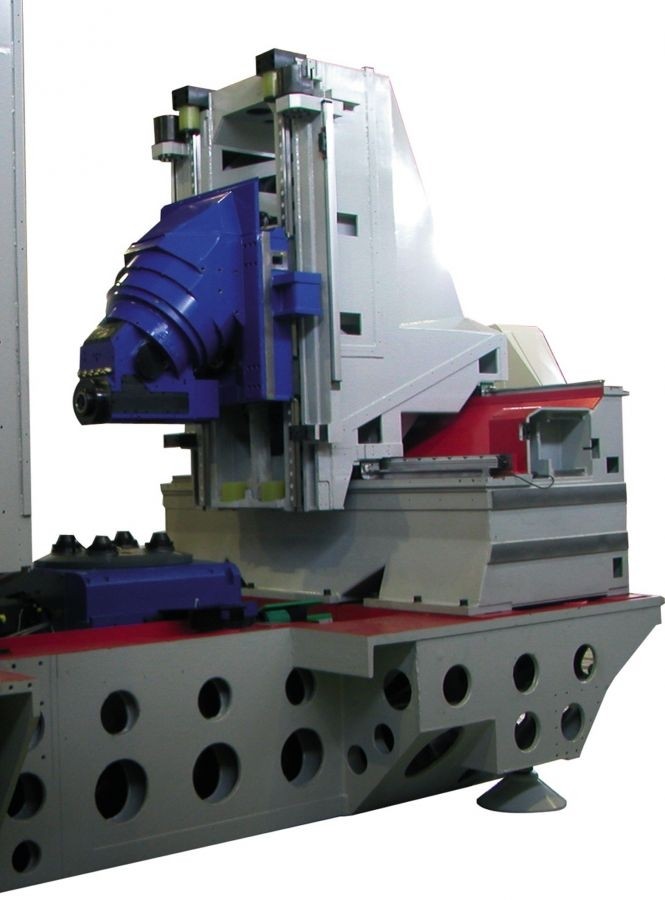

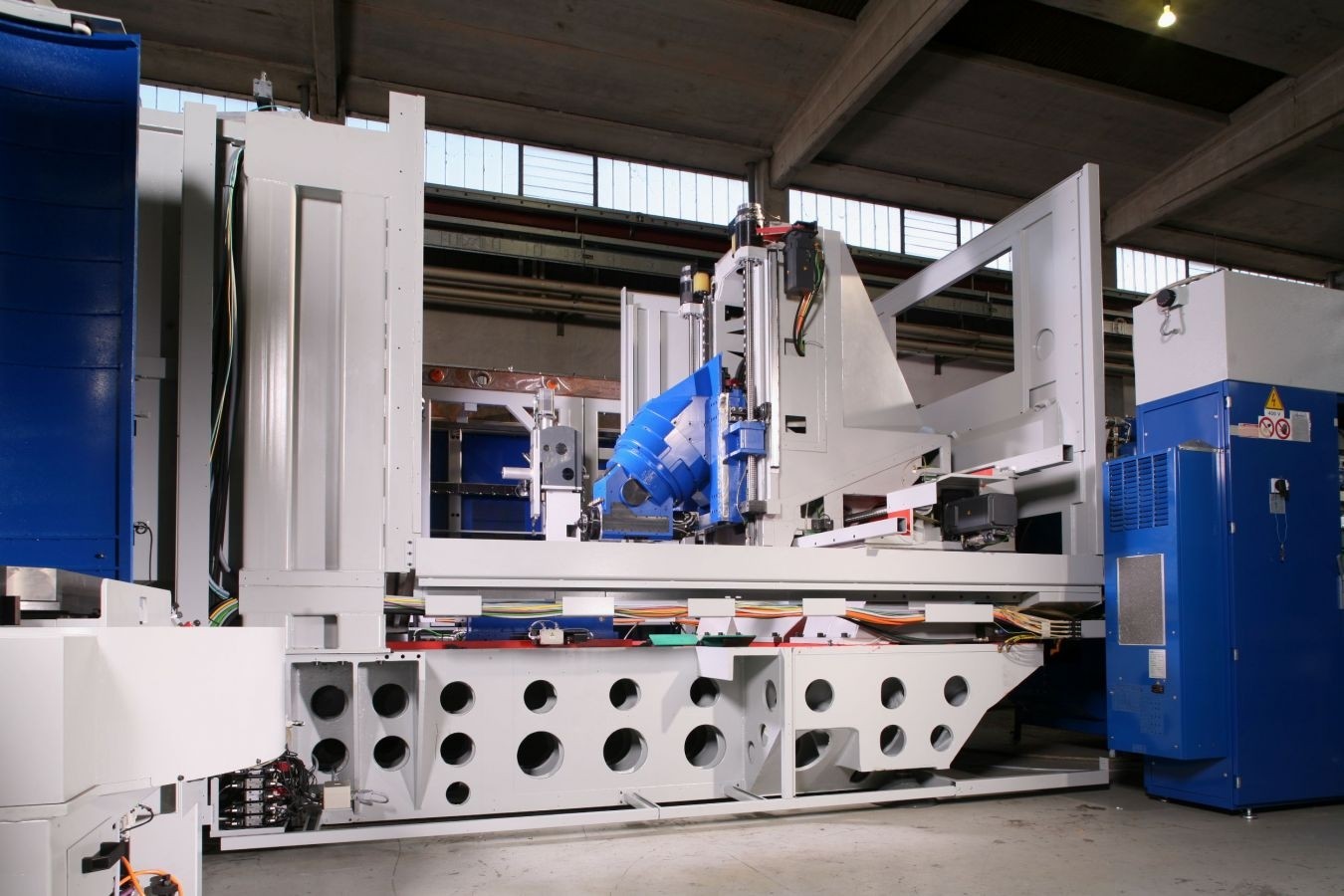

The Spark model has been conceived to offer highly dynamic performances thanks to the modern inverted "T" configuration. It is a compact machine deriving from the results of optimized studies with the aim of reducing floor space. The structures are extremely stiff and therefore guarantee highly accurate machining operations on workpieces with a maximum swing of 1300 mm.





















































































Specifications unit 1300
X Travel mm 1300
Y Travel mm 1100
Z Travel mm 1050
Rapids m/min 50
Precision (VDI 3441)
Positioning mm 0.005
Repeatability mm 0.002
Max Workplace Dimensions
Diameter mm 1300
Height mm 1100
  kg 1500
Overall Dimensions
Machine Weight kg 43000
Machine Height m 3.8
Footprint m 9.2x5.6

Options available:

Measuring Probe
The 3D measuring probe available on our HMCs is very compact and can be employed in the hardest working conditions. It is automatically loaded by the tool magazine where it is housed and its efficient radio transmission system guarantees the work-piece geometrical data to be transmitted fast to the NC.

Laser Tool Presetting


The control unit is firmly fixed onto the table and it moves horizontally with it. The sliding covers fully protect the sensor since their shape prevents the chips from accumulating during machining operations. All the HMC movements are controlled by the NC.


Facing Head System



It is our application concerning the 5th axis facing head. On the top side of the head it is also available an NC-controlled motorization transferring the movement to the sliding bars. The motorized heads are automatically loaded from the tool magazine.


TOOL INTEGRITY CONTROL


It is a direct contact tool integrity sensor mounted on the rack tool magazine which allows tools to be controlled in concealed time.


AIR FILTER EXTRACTORS


It is the aspiration system extracting the fumes generated by the pressurized coolant. The aspiration occurs inside the HMC box and it is extremely important to protect the working area but mainly the operator's health.
