Mandelli Spark X 1600 CNC Horizontal Machining Center

Brand
MANDELLI

Model

Type
Machining Centers, Vertical

Stock #
Spark X 1600

Condition
New

Year

Location
City Not Specified,

Specifications

Equipped With

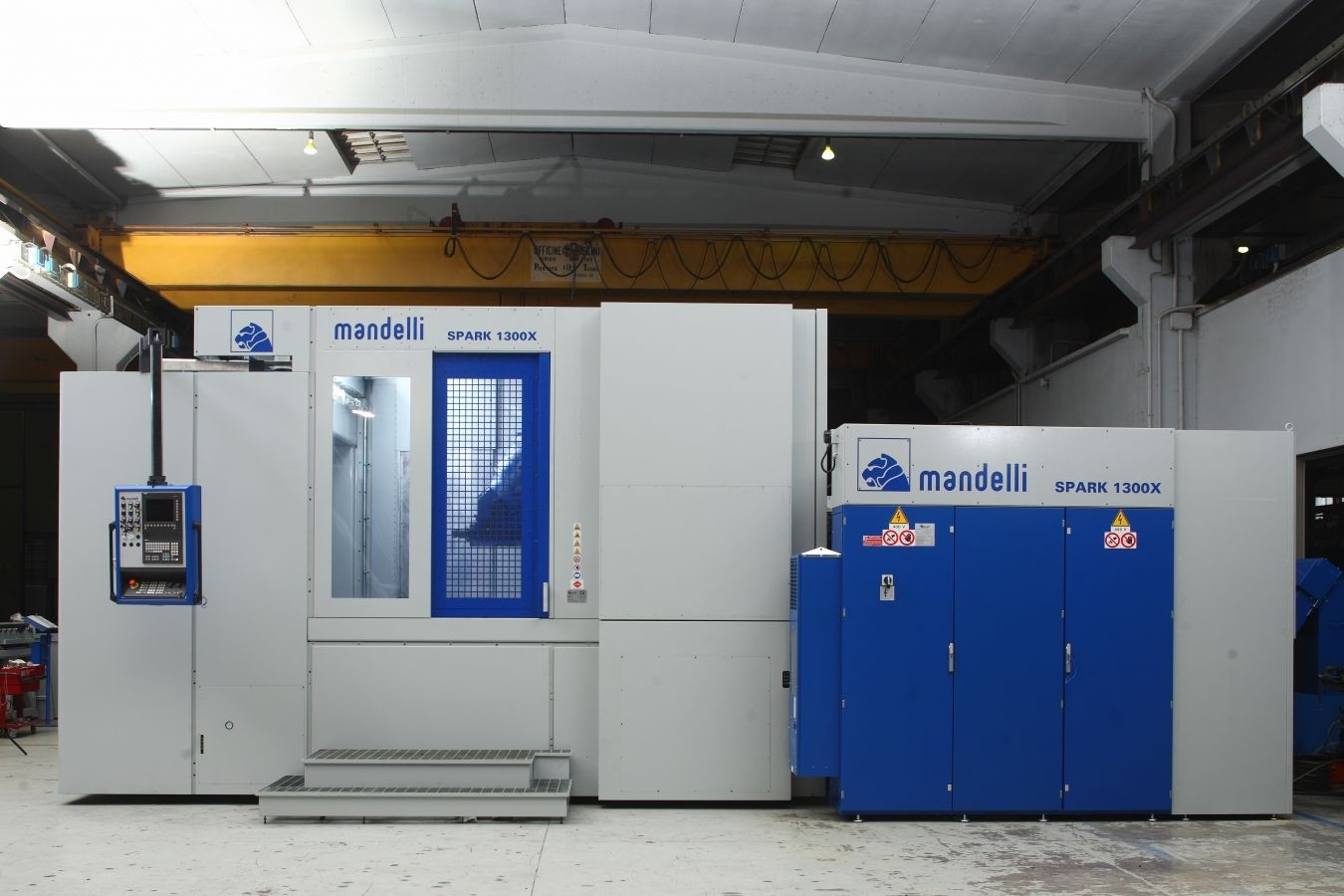

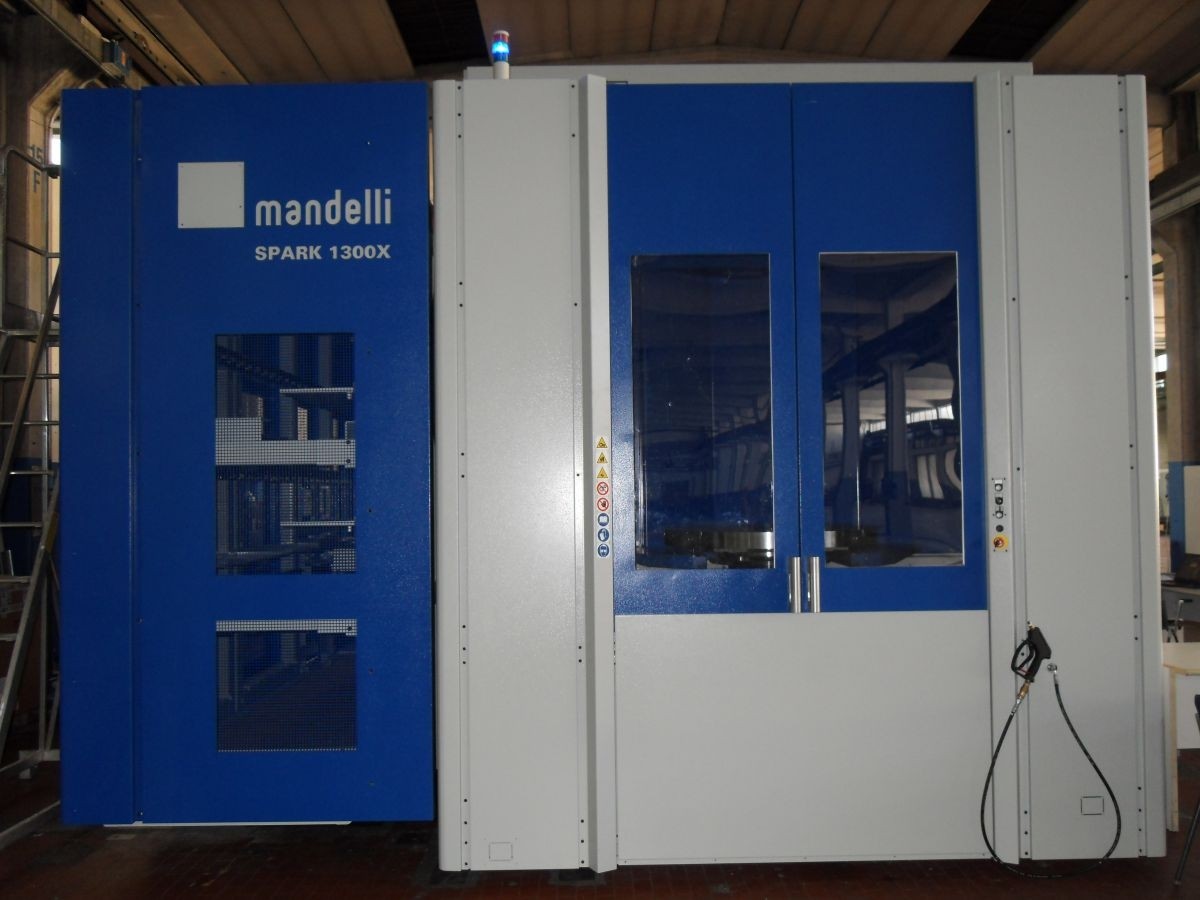

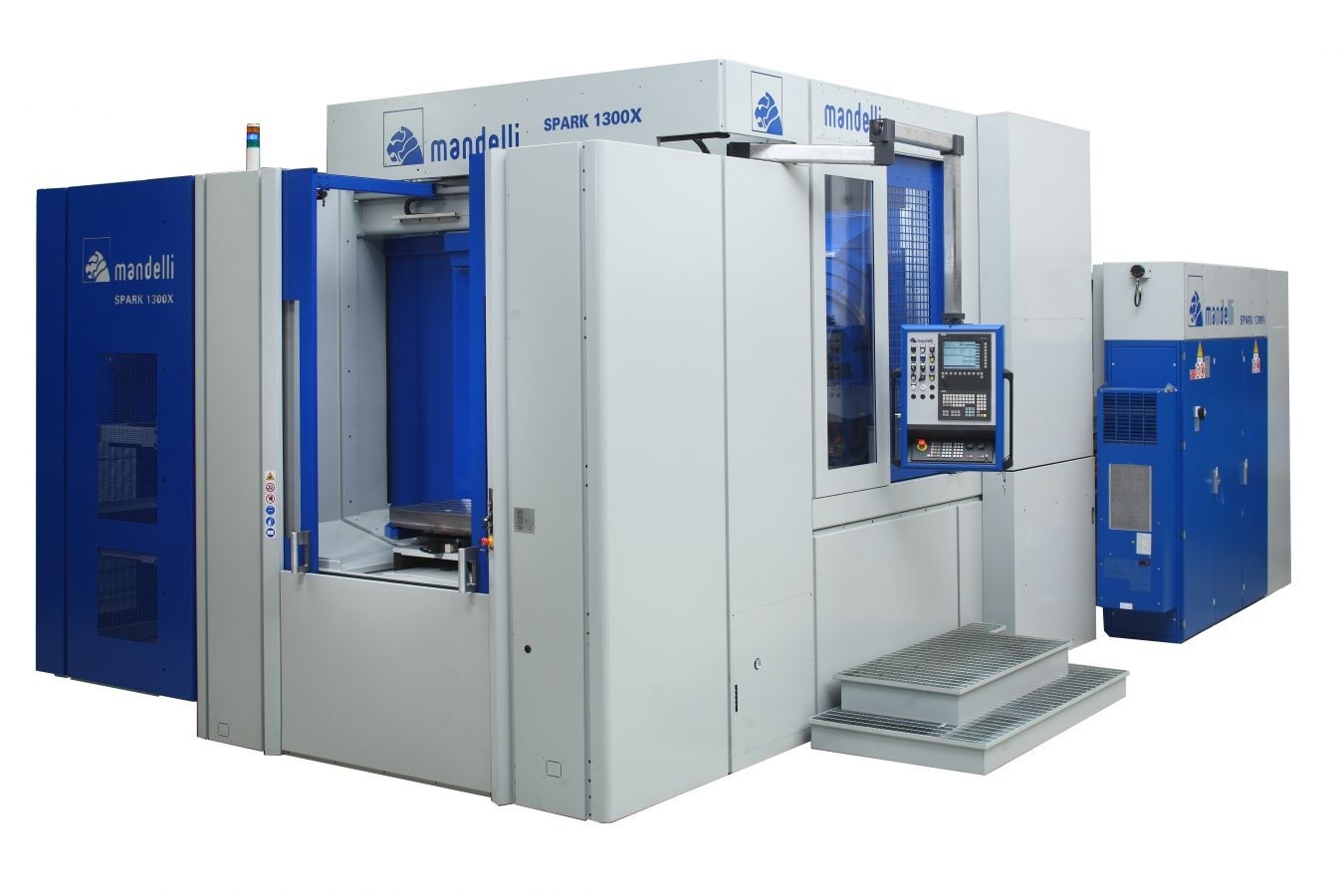

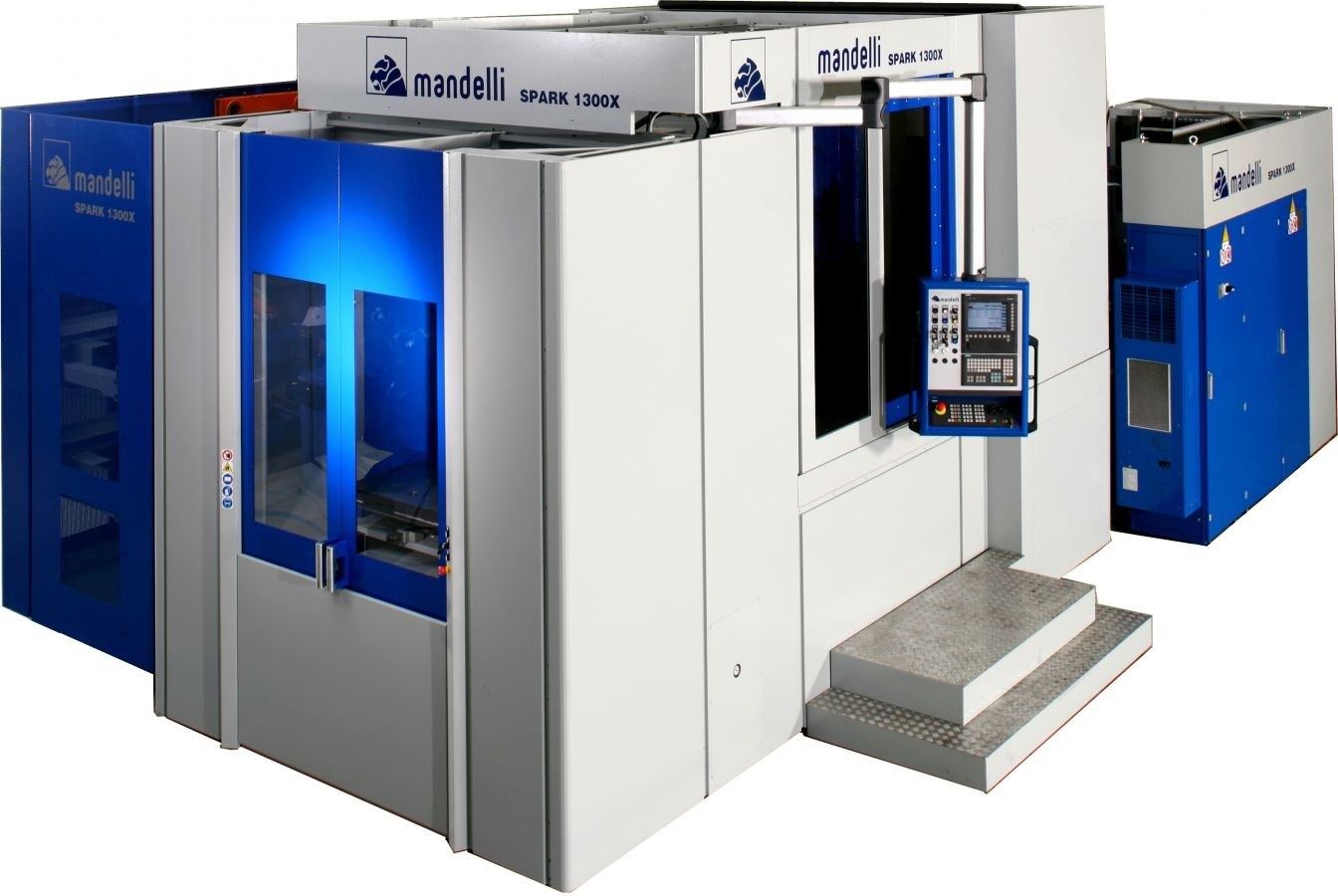

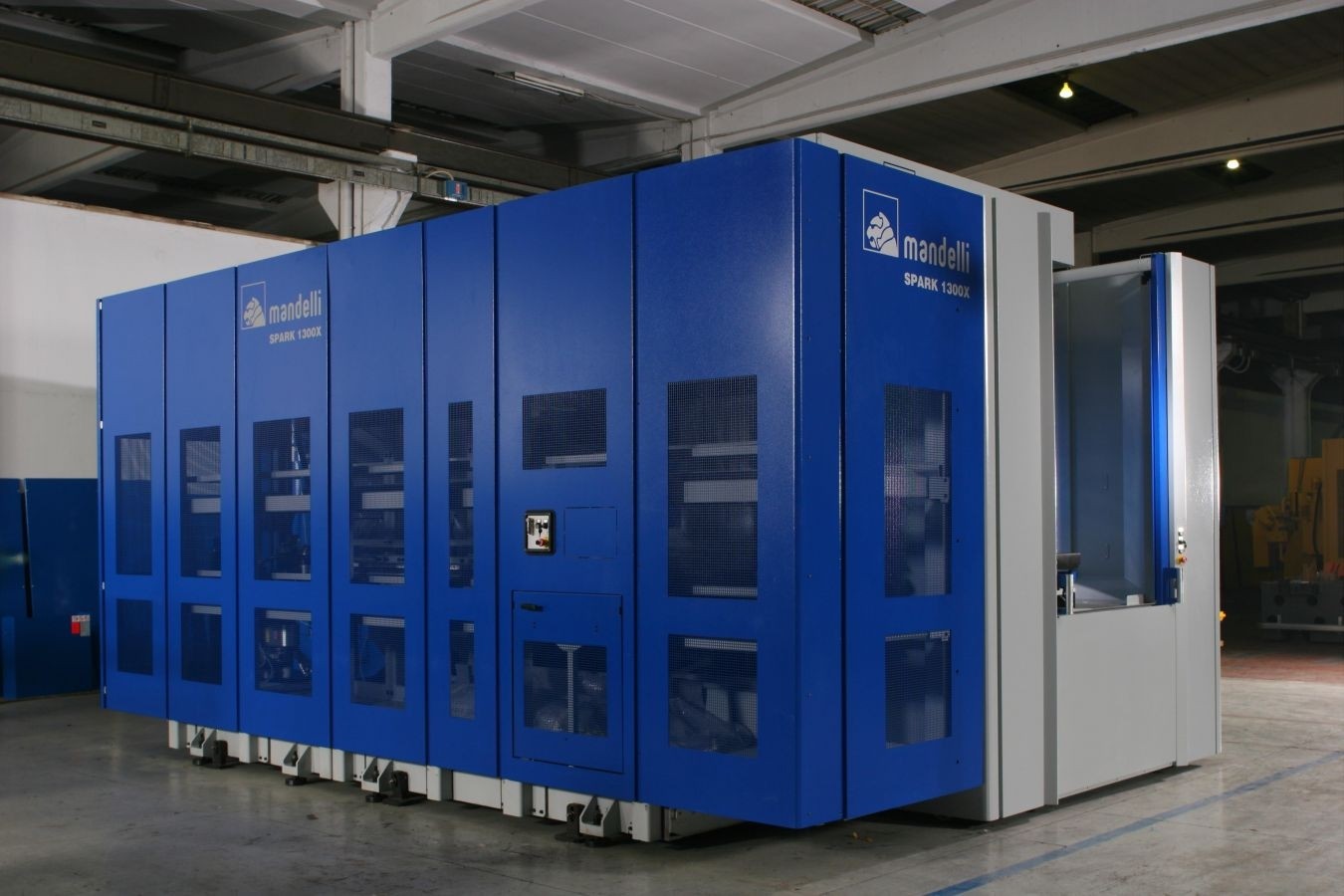

Mandelli Spark 1600 CNC Horizontal Machining Center

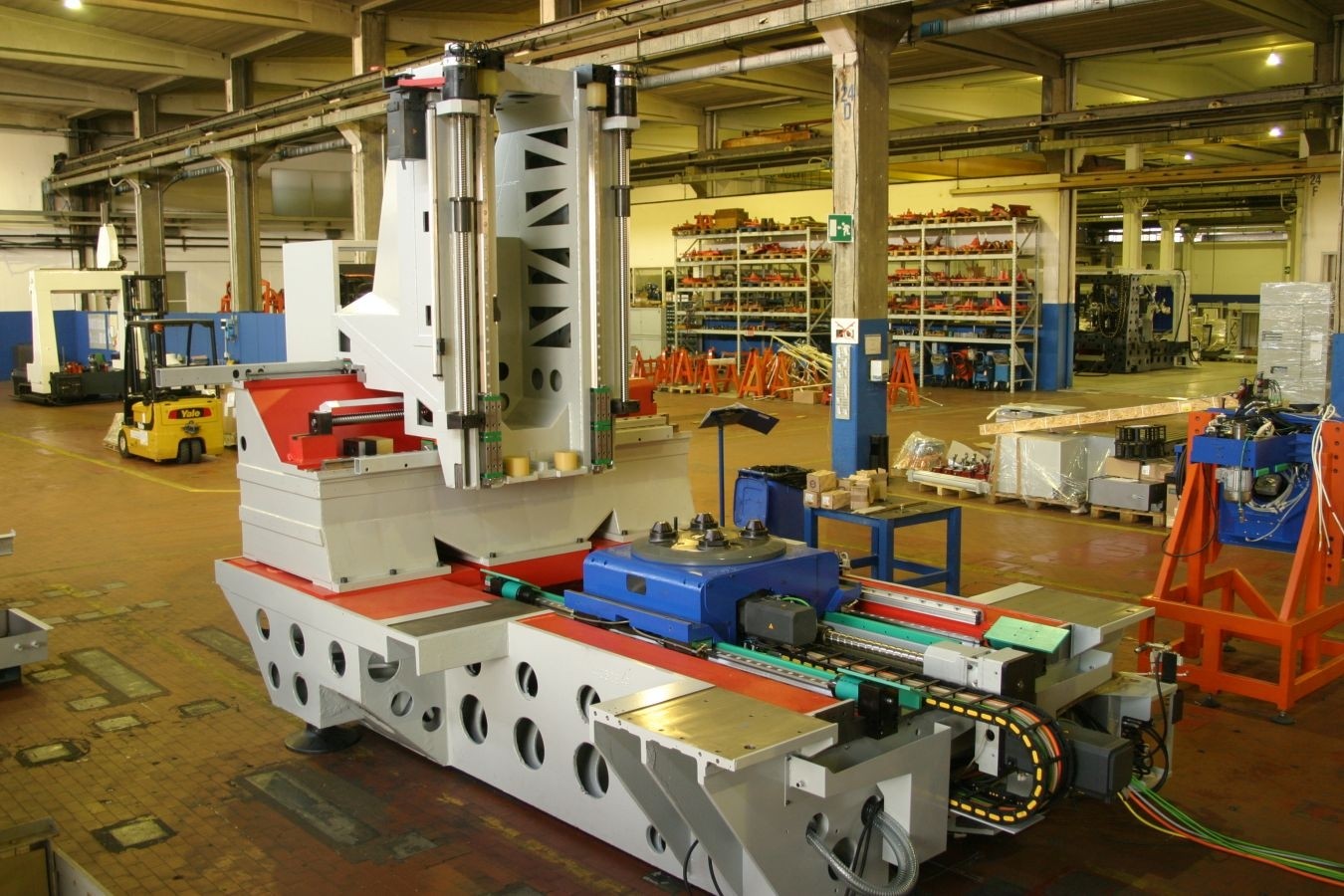

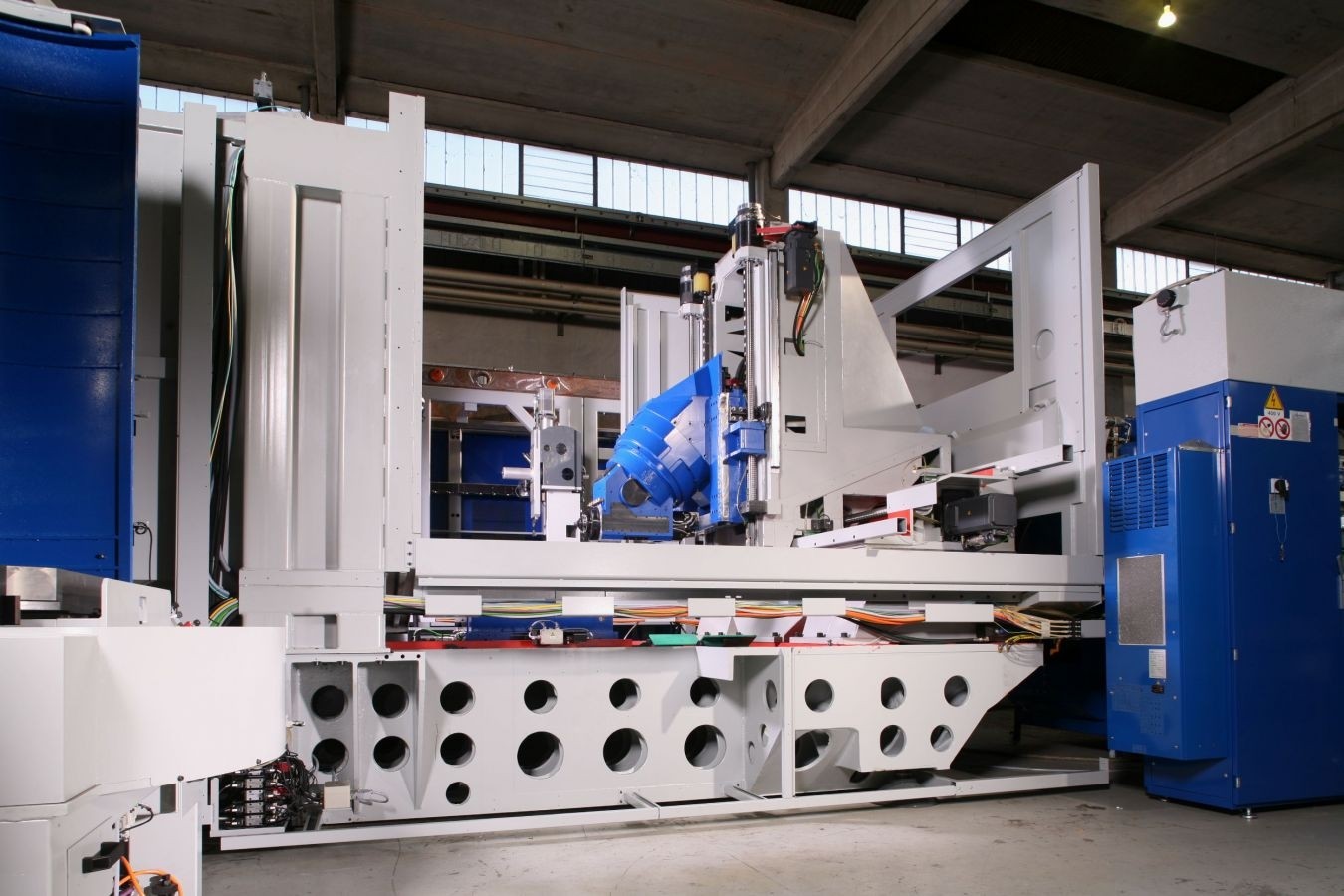

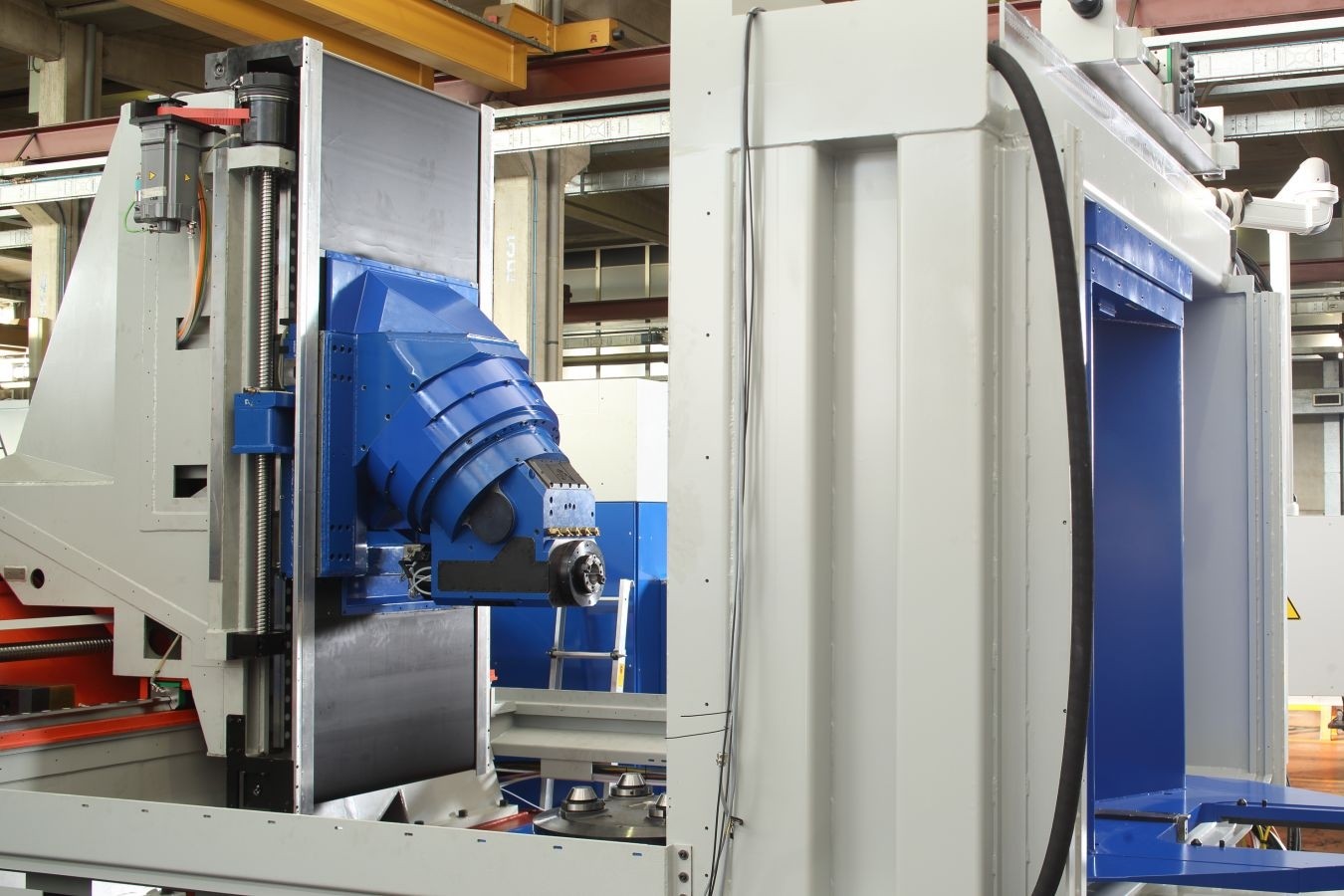

The Spark 1600 was the first new generation model to be developed in a travelling column configuration. It was conceived for the machining of average-sized workpieces with a maximum swing of 1600 mm and guarantees excellent performances in terms of dynamics and stock removal on cast iron and steel components. It is also a good starting point for 5-axis machining on tough material.





















































































Specifications unit 1600
X Travel mm 1600
Y Travel mm 1400/1700
Z Travel mm 1400/1500
Rapids m/min 50
Precision (VDI 3441)
Positioning mm 0.005
Repeatability mm 0.002
Max Workplace Dimensions
Diameter mm 1600
Height mm 1500
  kg 2500
Overall Dimensions
Machine Weight kg 50000
Machine Height m 4.3
Footprint m 11x6.6







Options Avaliable



Measuring Probe
The 3D measuring probe available on our HMCs is very compact and can be employed in the hardest working conditions. It is automatically loaded by the tool magazine where it is housed and its efficient radio transmission system guarantees the work-piece geometrical data to be transmitted fast to the NC.

Laser Tool Presetting


The control unit is firmly fixed onto the table and it moves horizontally with it. The sliding covers fully protect the sensor since their shape prevents the chips from accumulating during machining operations. All the HMC movements are controlled by the NC.


Facing Head System

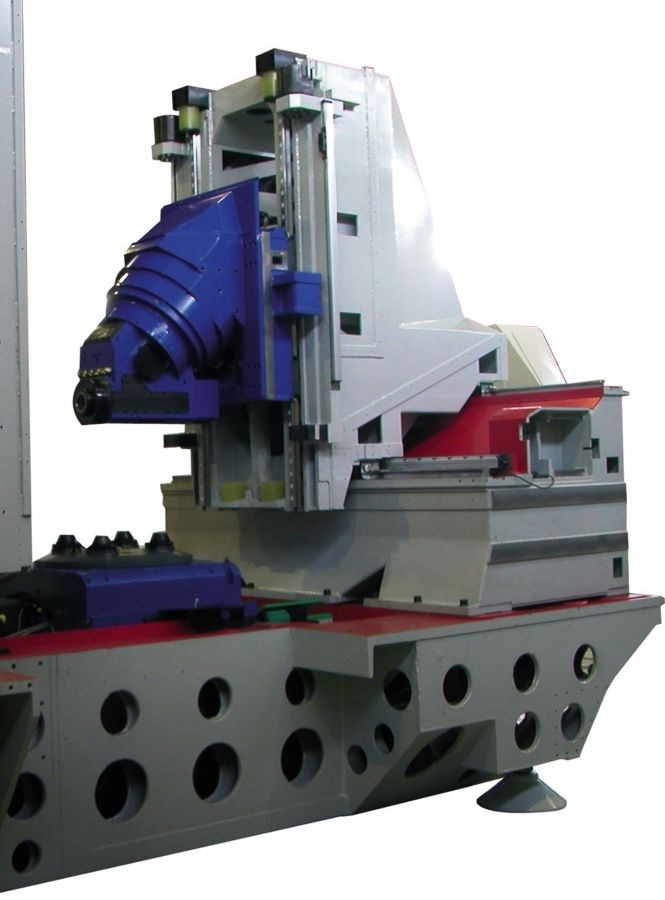

It is our application concerning the 5th axis facing head. On the top side of the head it is also available an NC-controlled motorization transferring the movement to the sliding bars. The motorized heads are automatically loaded from the tool magazine.


TOOL INTEGRITY CONTROL


It is a direct contact tool integrity sensor mounted on the rack tool magazine which allows tools to be controlled in concealed time.


AIR FILTER EXTRACTORS


It is the aspiration system extracting the fumes generated by the pressurized coolant. The aspiration occurs inside the HMC box and it is extremely important to protect the working area but mainly the operator's health.


Call us today for more information.
