Mandelli Spark  X2100 CNC Horizontal Machining Center

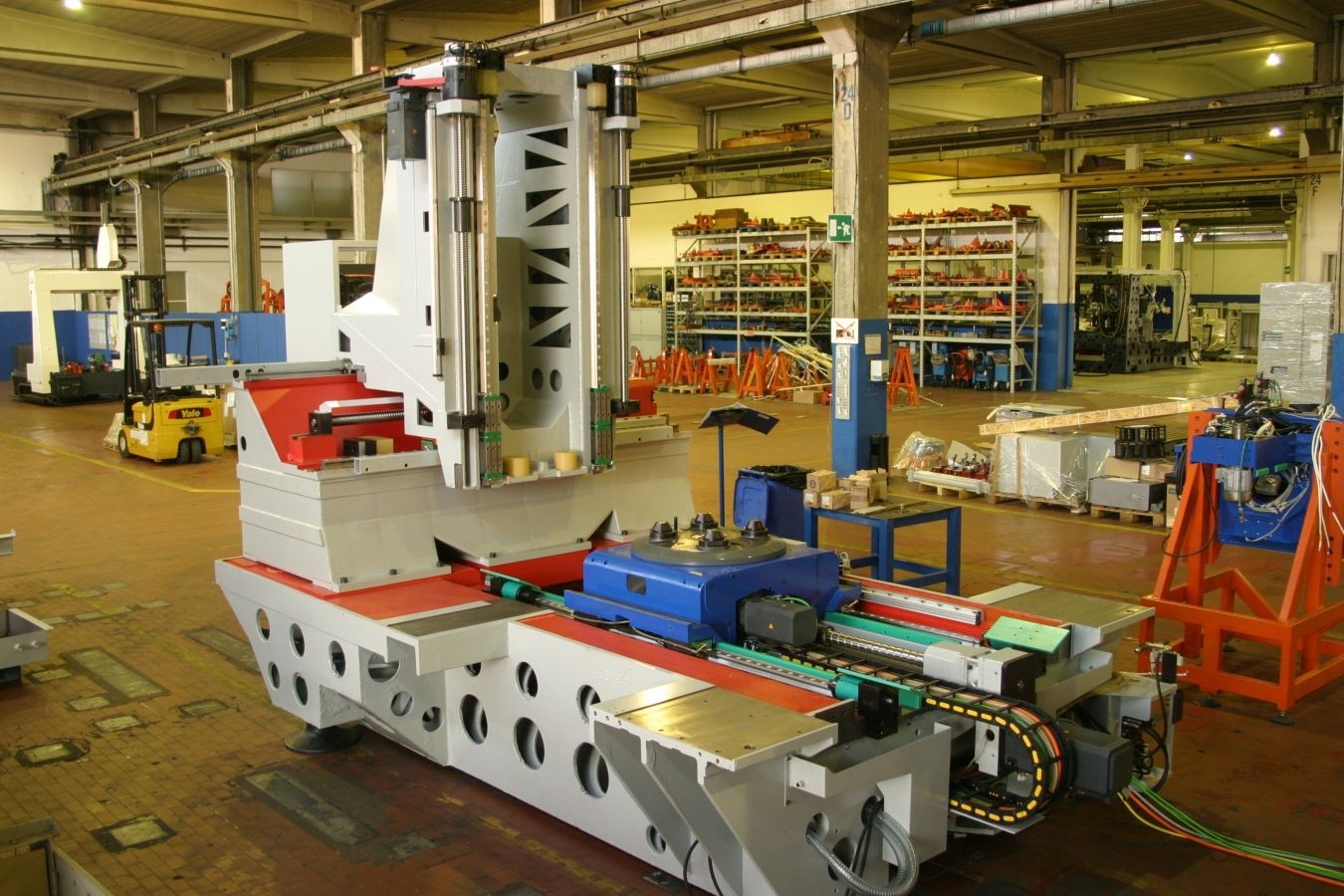

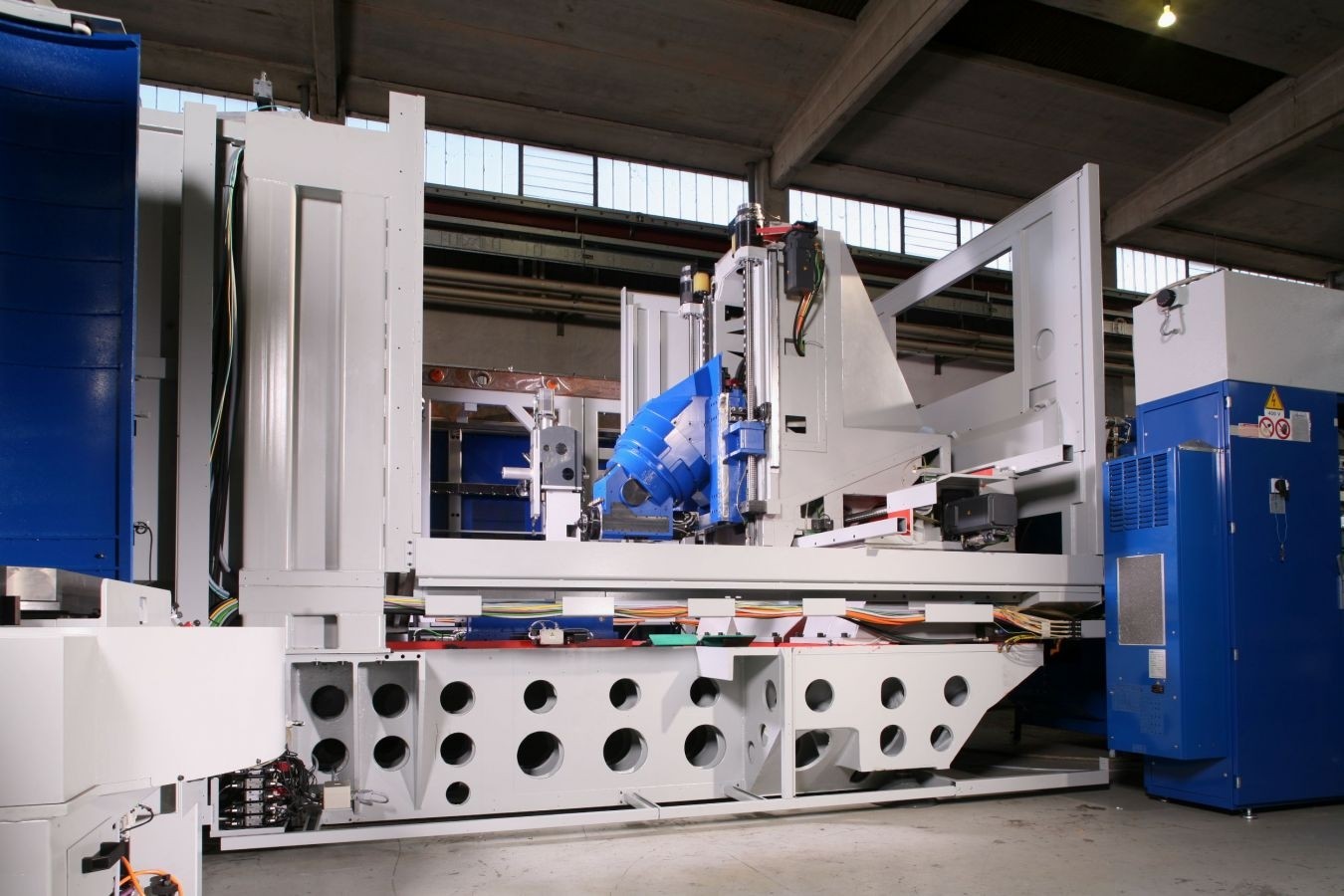

A travelling column machining center solution for extremely heavy stock removal on workpieces with a maximum swing of 2100 mm. The Spark 2100 guarantees excellent performances in terms of dynamics and stock removal on cast iron and steel components. It is a good starting point for 5-axis machining of tough material.

Specifications unit 2100
X Travel mm 2000
Y Travel mm 1700/2000
Z Travel mm 1800
Rapids m/min 50
Precision (VDI 3441)
Positioning mm 0.006
Repeatability mm 0.003
Max Workplace Dimensions
Diameter mm 2100
Height mm 1800
  kg 5000
Overall Dimensions
Machine Weight kg 57000
Machine Height m 4.5
Footprint m 12.7x10.5


Options Avaliable

Measuring Probe
The 3D measuring probe available on our HMCs is very compact and can be employed in the hardest working conditions. It is automatically loaded by the tool magazine where it is housed and its efficient radio transmission system guarantees the work-piece geometrical data to be transmitted fast to the NC.

Laser Tool Presetting

The control unit is firmly fixed onto the table and it moves horizontally with it. The sliding covers fully protect the sensor since their shape prevents the chips from accumulating during machining operations. All the HMC movements are controlled by the NC.

Facing Head System

It is our application concerning the 5th axis facing head. On the top side of the head it is also available an NC-controlled motorization transferring the movement to the sliding bars. The motorized heads are automatically loaded from the tool magazine.


It is a direct contact tool integrity sensor mounted on the rack tool magazine which allows tools to be controlled in concealed time.


It is the aspiration system extracting the fumes generated by the pressurized coolant. The aspiration occurs inside the HMC box and it is extremely important to protect the working area but mainly the operator's health.

Call us today for more information.
