Brand
MAZAK
Model
Integrex 200SY (Complete Rebuild)
Type
Machining Centers, Multitasking
Stock #
56754
Condition
Rebuilt
Year
1999
Highlights

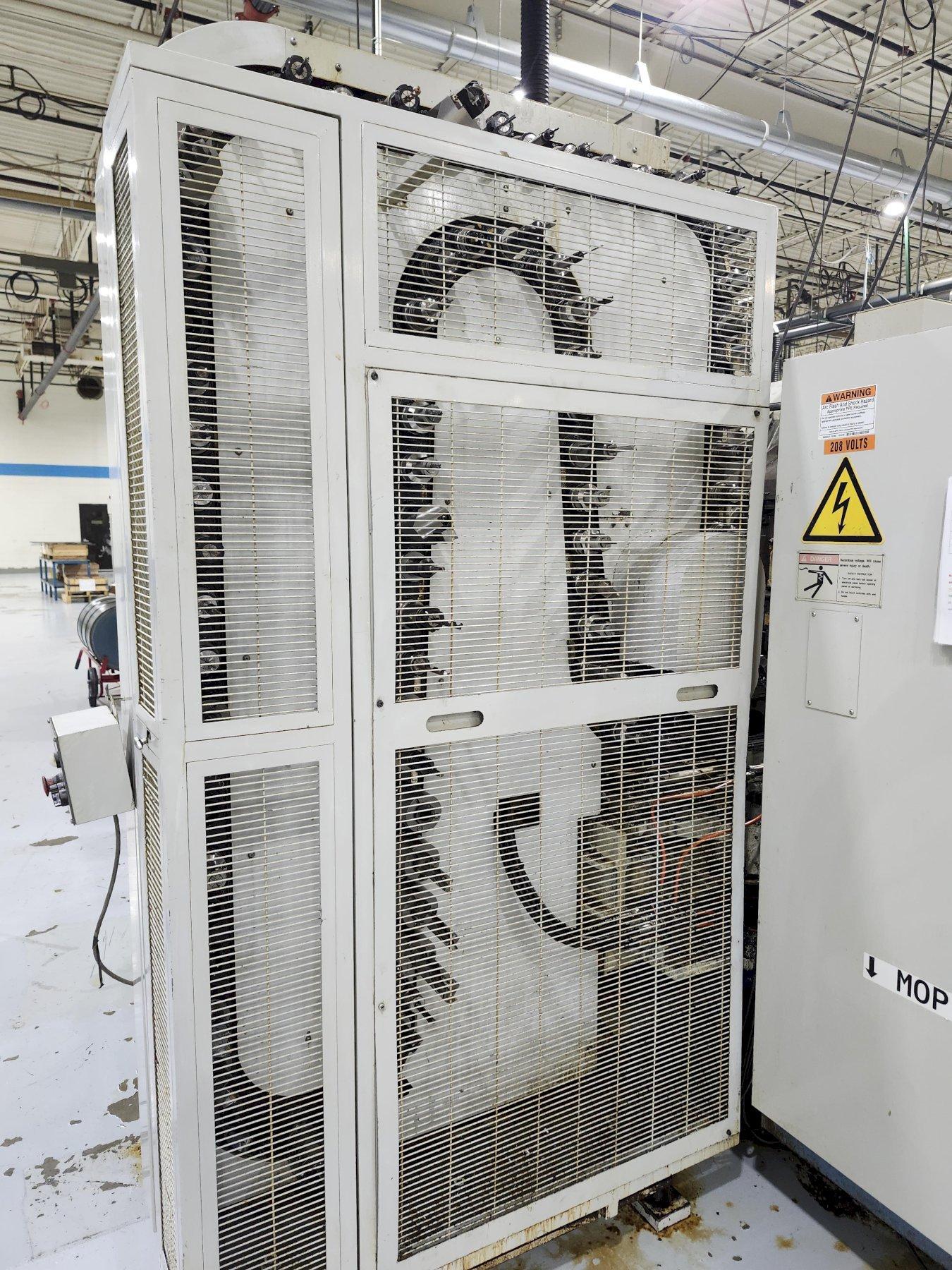

Complete Rebuild; New Spindle, New Linear ways on all axes, New way covers, New Linear ways on ATC. 80 Station ATC| CNC Control | yes |

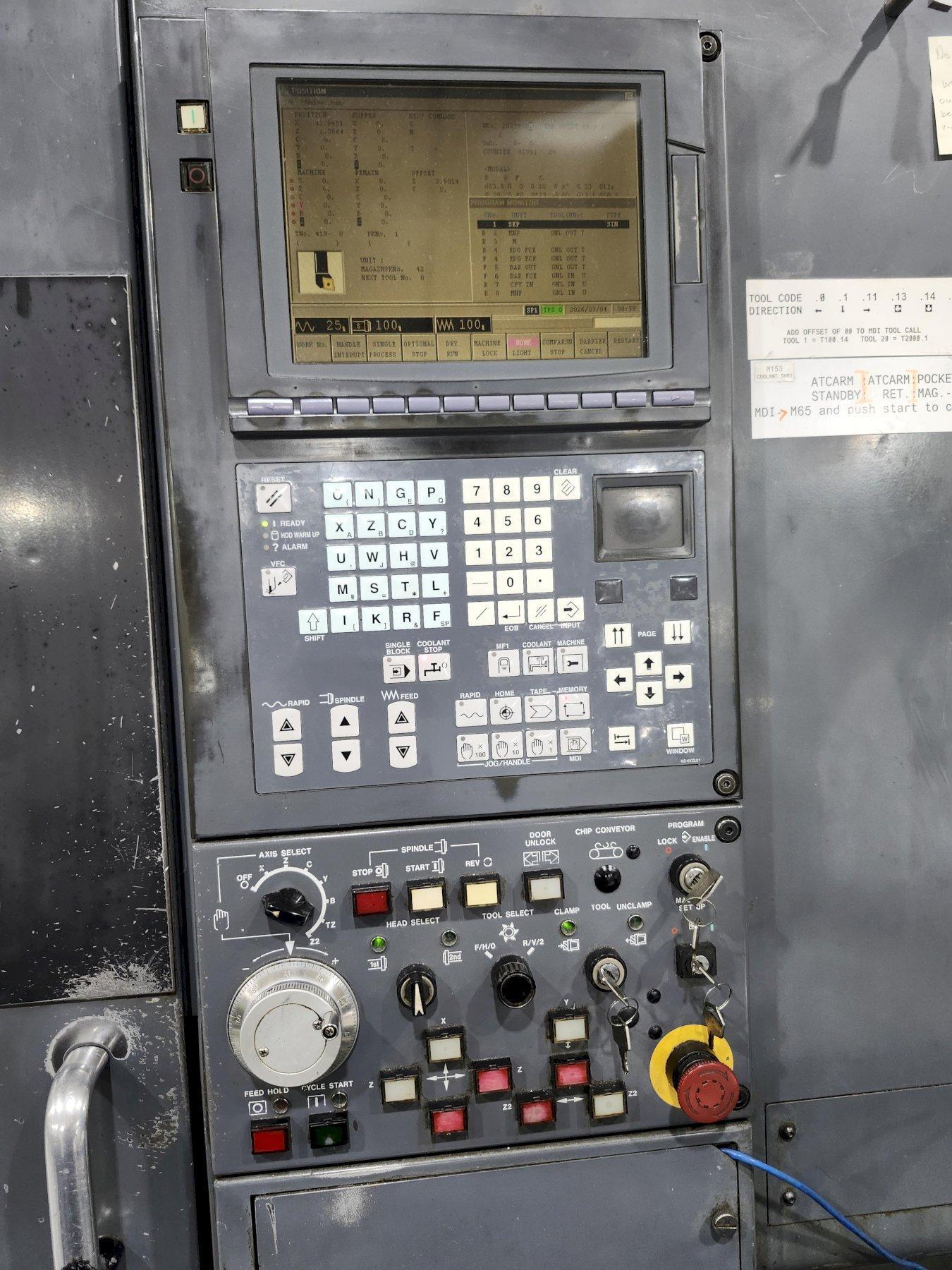

| Type of CNC Control | Mazatrol Fusion 640 MT |
| # Axis | 5 |
| Turning Diameter | 25.9" |
| Maximum Swing | 25.9" |
| Max. Bar Capcity | 2.5" |
| X | 22.83 inches |
| Y | 6.3 inches |
| Z | 41.14 inches |
| C-Axis Travel (both spindles) | Full contouring on both spindles with 0.0001-degree increments |
| RPM | 5000 |
| Sub Spindle | 5,000 RPM |

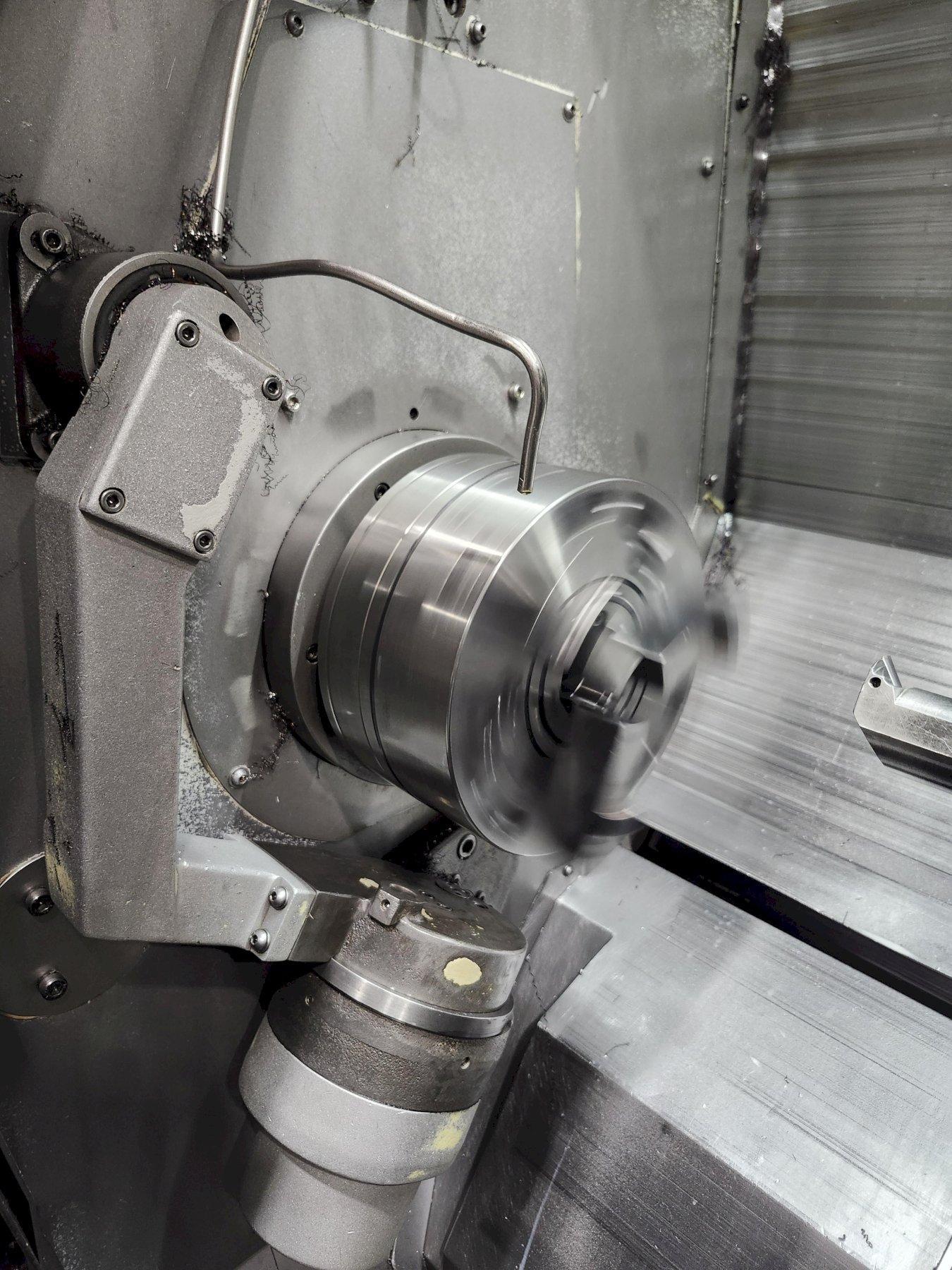

| Milling Spindle | 12,000 RPM |
| Milling Spindle (B-Axis) | 225 degrees for 5-axis/angular machining |
| # ATC | 80 |
| Taper | Capto C6 tool tapers |
| Power | 30 horsepower |
| Dimensions | 128" L x 72" W x 96" Ht. (Approximate) |
| Weight | 13200 pounds |

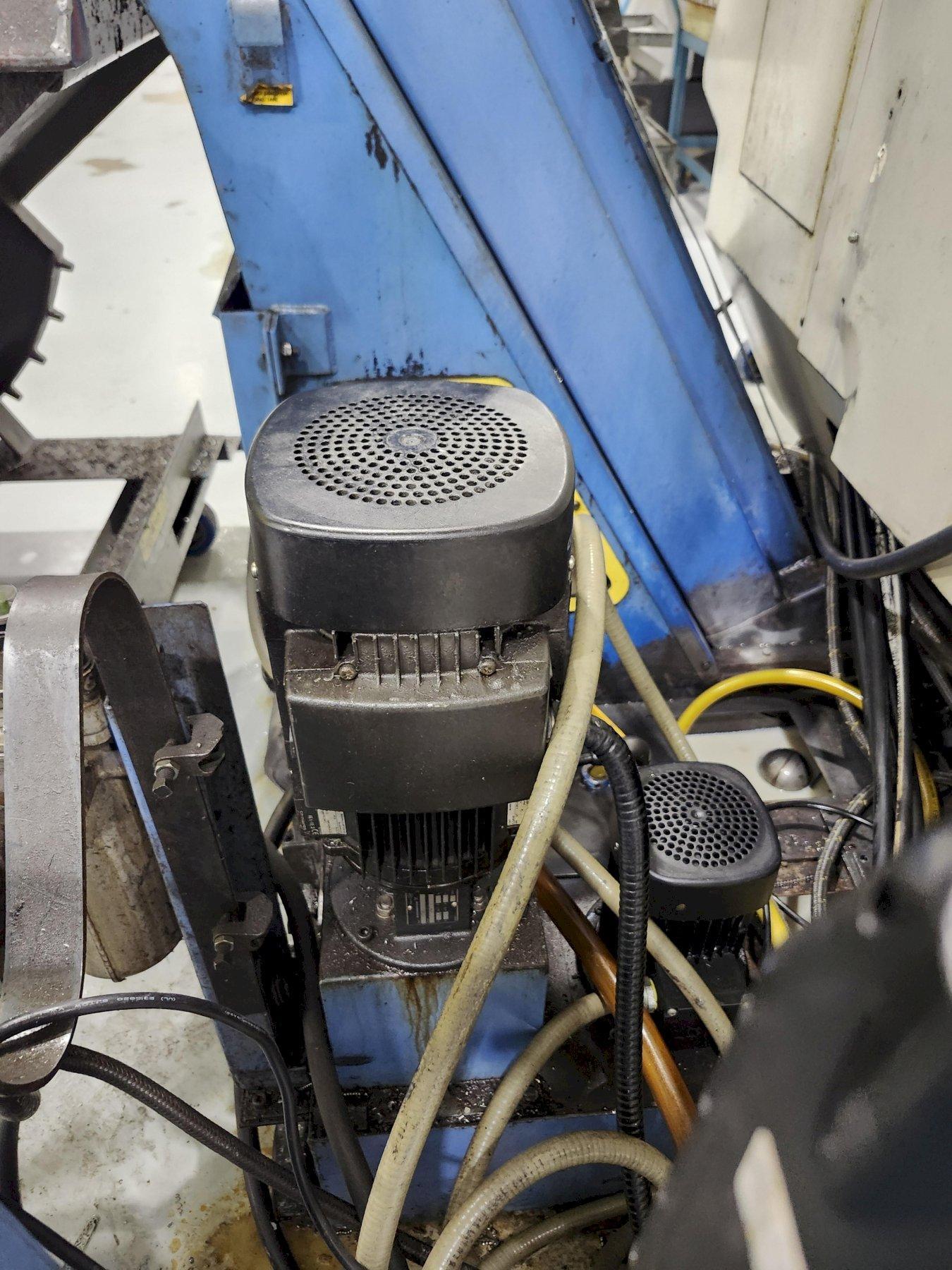

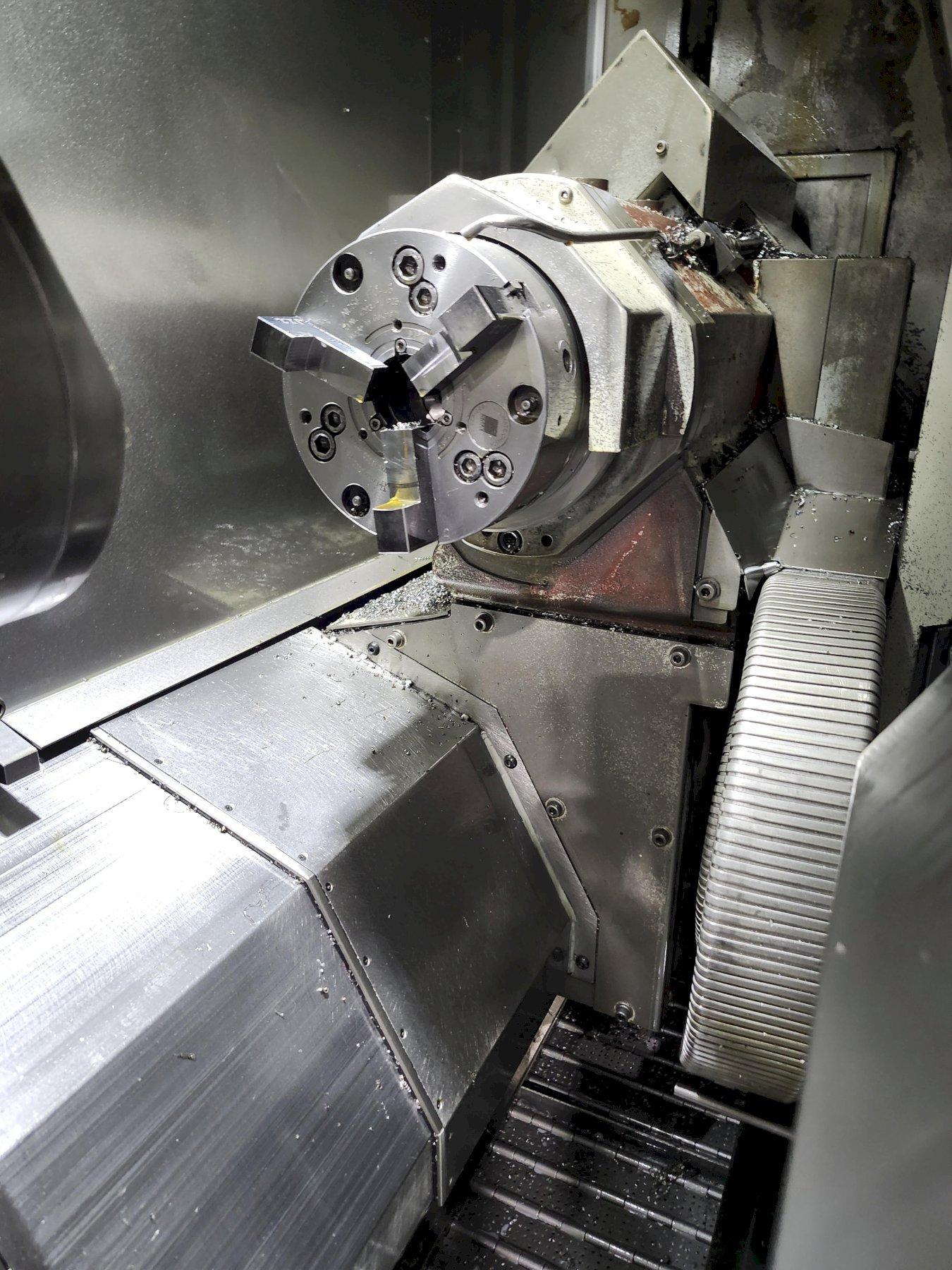

| Control: Mazatrol Fusion 640 MT 8" Chuck 6"Chuck Tool Eye Presetter High Pressure Coolant Chip Conveyor Automatic Tool Changer 80 Stations Manuals |
