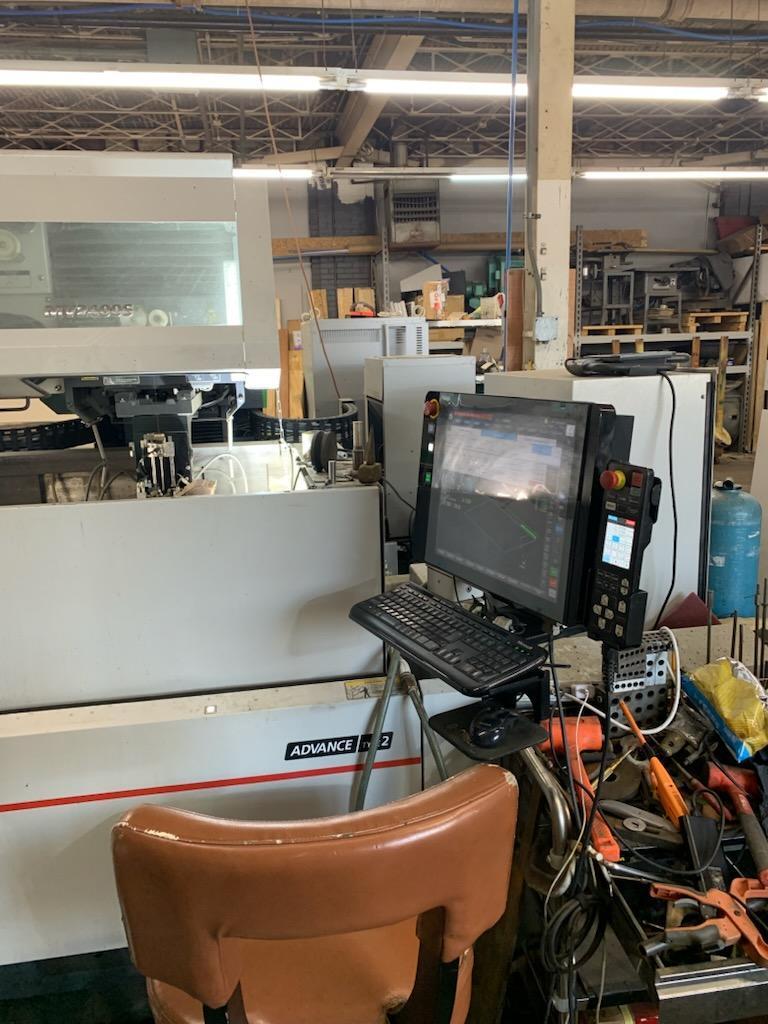

Mitsubishi MV2400S Advance CNC Wire EDM, New 2023

Request a Quote

Brand
MITSUBISHI

Model
MV2400S

Type
EDM, Wire, CNC

Stock #
56753

Condition
Very Good

Year
2023

Highlights

The Mitsubishi MV series machine features the M800 D-Cubes control with a 17-inch touchscreen for easier user interface. Mitsubishi is dedicated to constant innovation and strives to build only the highest quality machines. The MV series features new improvements in machine construction, auto-threading, internal machine communication, power supply technology and operating costs. The MV2400-S also includes a new, non-contact Cylindrical Drive System for the X&Y axis. The machine's improved features are sure to advance your EDM machining.

Specifications

Machining Travels ( X x Y x Z )	23.6" x 15.7" x 12.3"
U/V Travel	+/- 3"
Table Dimensions	33" x 25.2" (3-Sided)
Inside Table Dimensions	41.3" x 32.3"
Maximum Workpiece Size	23.6" x 15.7" x 12.3"
Maximum Submerged Workpiece Weight	3,300 lbs
Taper Capacity	+-15 deg @ 10"
Wire Diameter Range Possible	0.004"~0.012"
Wire Guides Included	0.010"
Minimum Resolution	.000002"
Table Rapid Feed	51.2"/Min
Min Hole Diameter for Autothread	.020"
Max Wire Spool Size	22 lbs
Filter Tank Capacity	260 Gal
Dimensions	Approx. 106" x 120" x 85"
Weight	8100 pounds
Features: * 10 Second Threading System * New-Style Cut-wire Collection System * AT Device for Various Wire Types including Coated Wires * Wire Break-point Insertion and Submerged Threading * New-Style Wire Tension System * AT Self-Cleaning Process * VF Monitor - Real-Time Cutting Speed Graphic * New-Style Work Tank Seal Plate Mechanism
