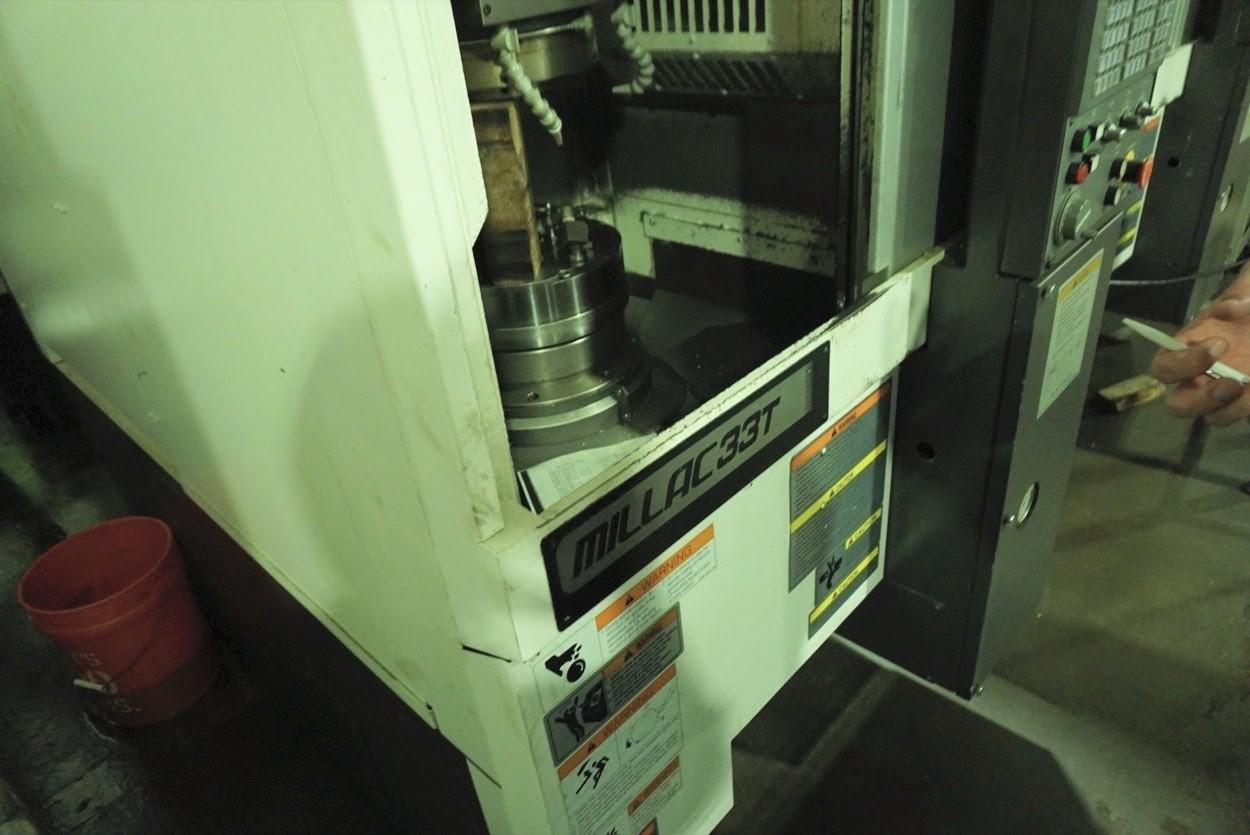

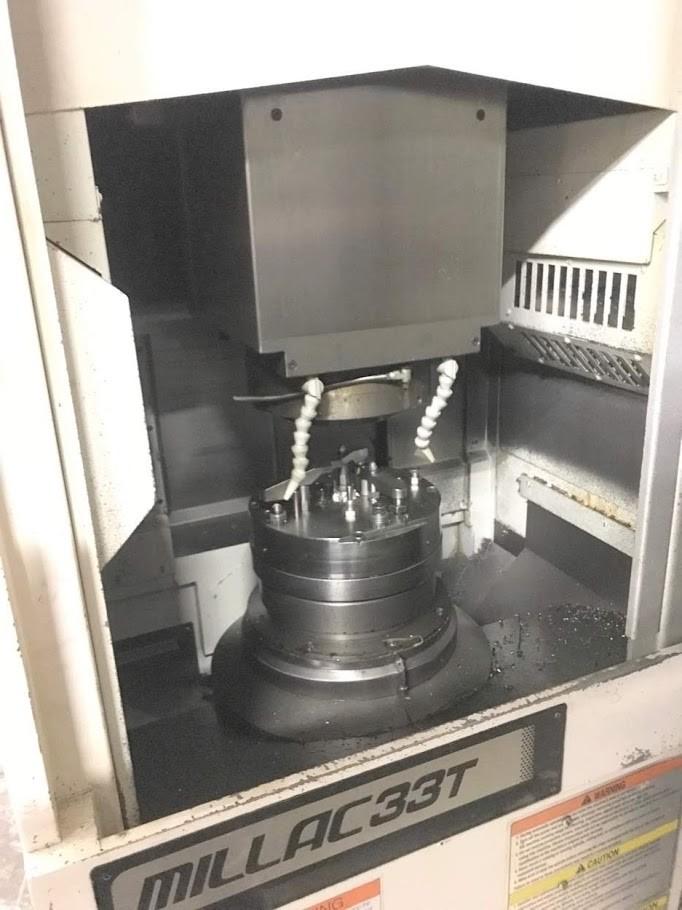

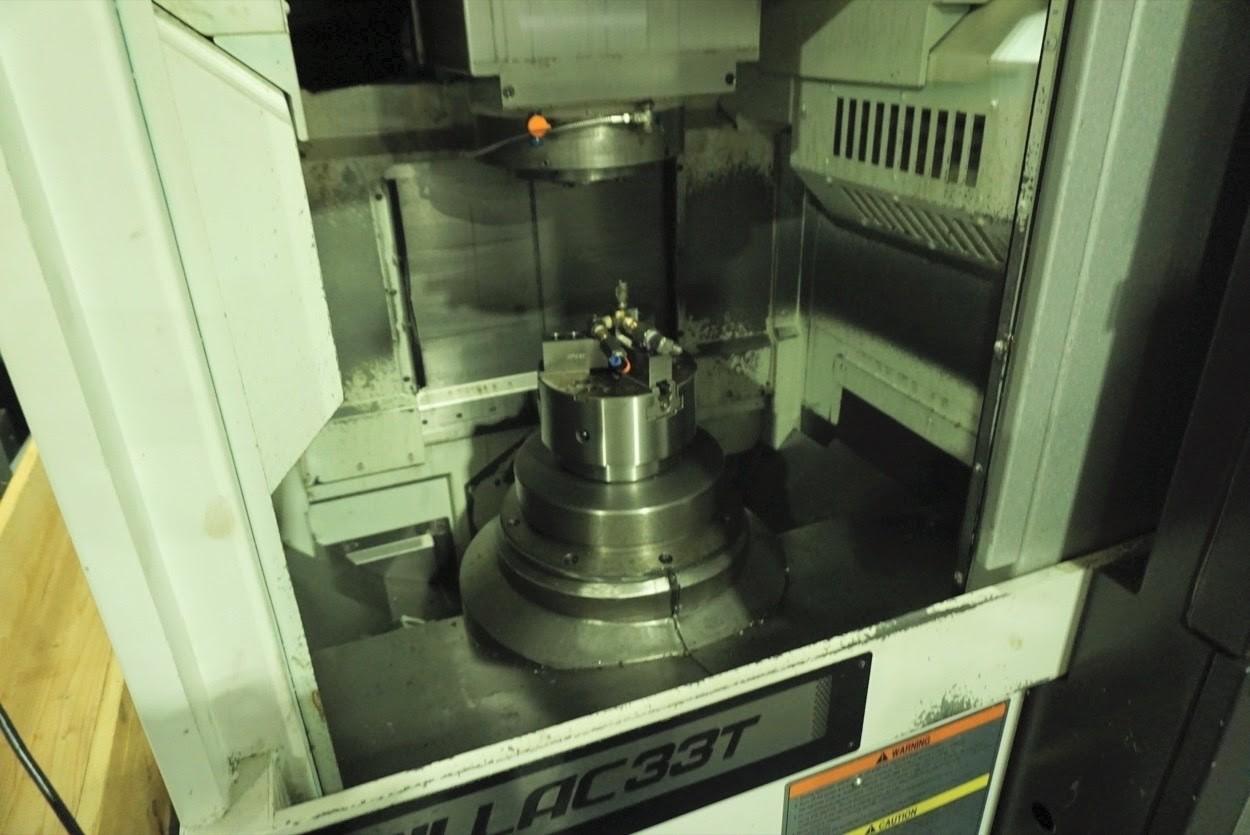

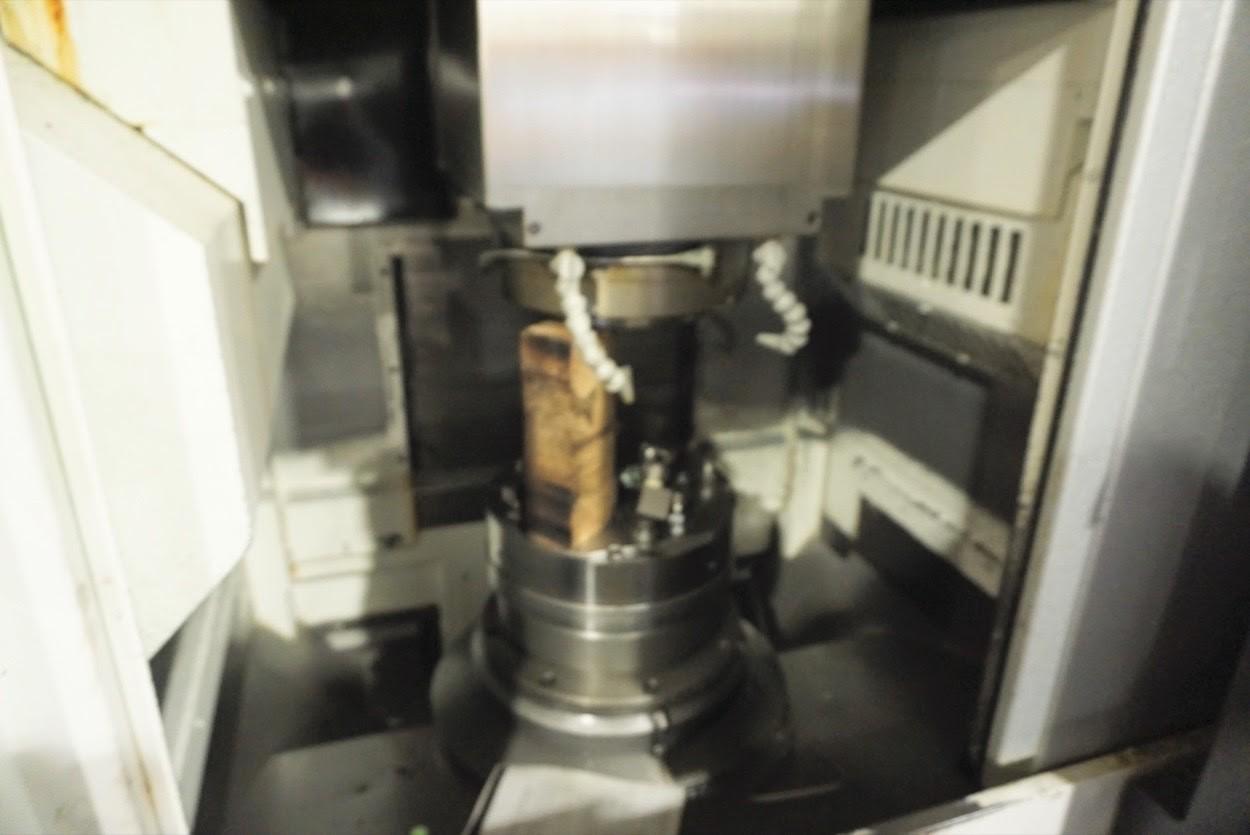

Okuma Model Millac 33T CNC Vertical Lathe, New 2013

Brand
OKUMA

Model
MILLAC 33T

Type
Lathes, CNC

Stock #
52926

Condition
Not specified

Year
2013

Location
City Not Specified, Minnesota
United States

Specifications

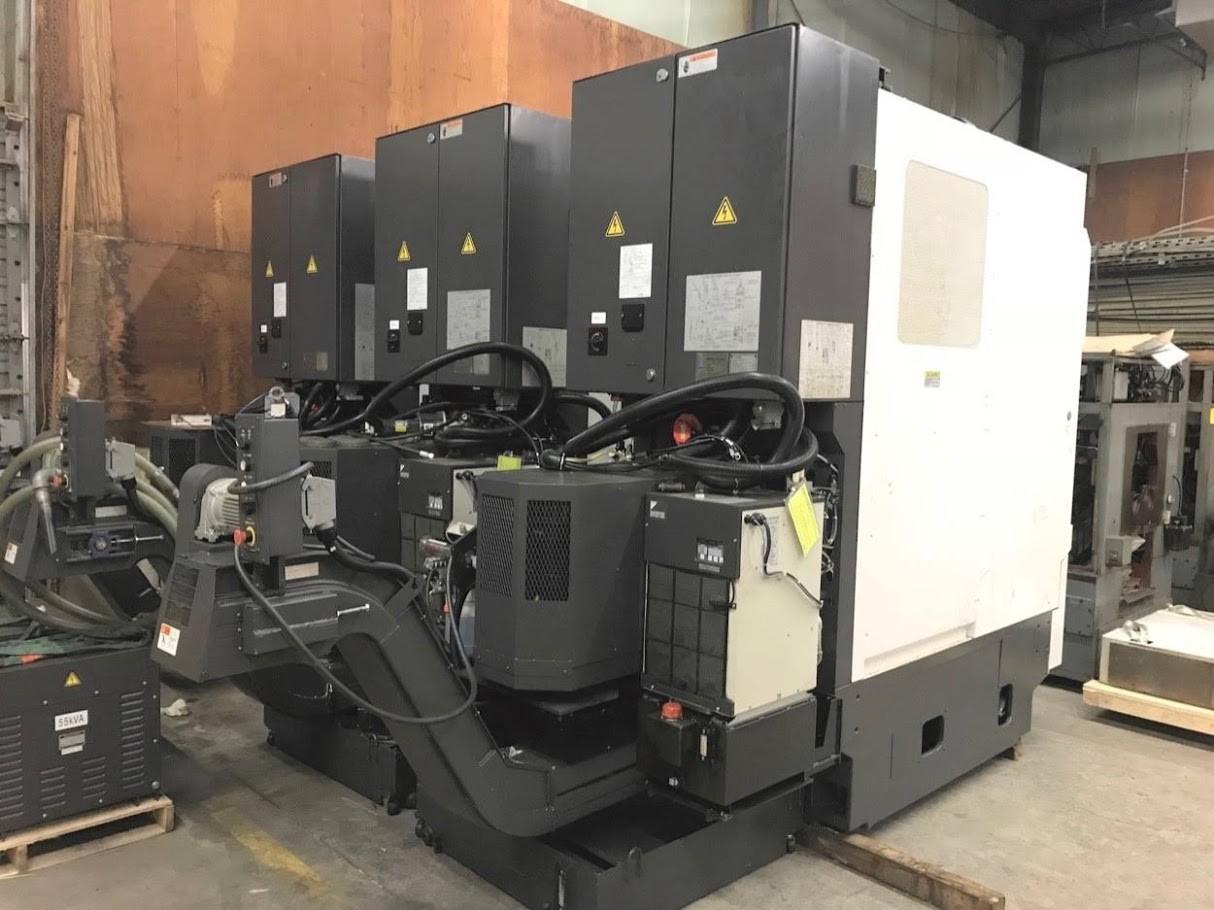

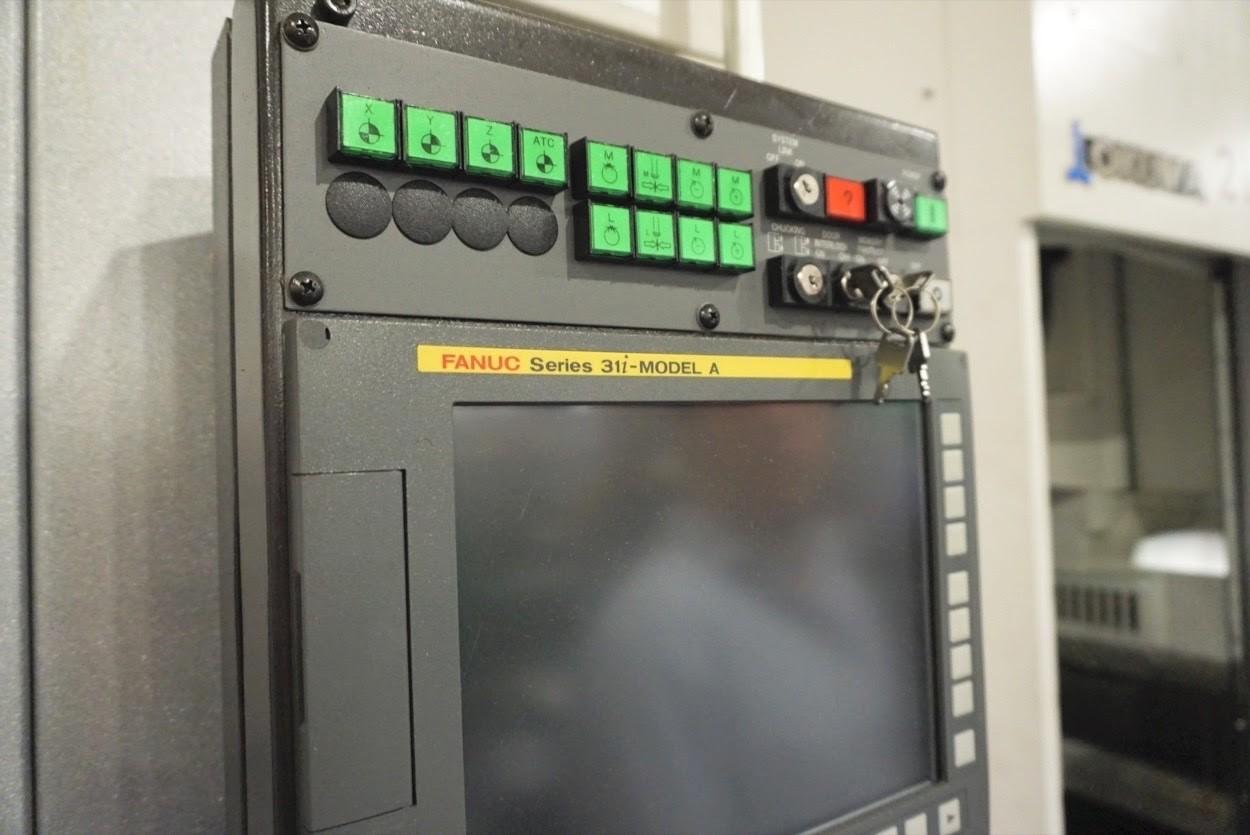

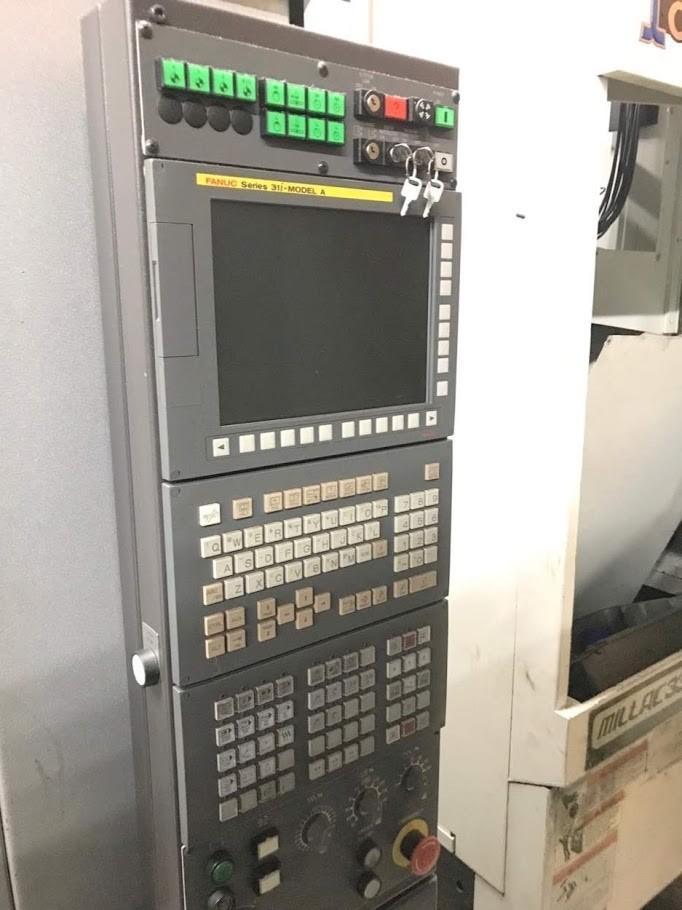

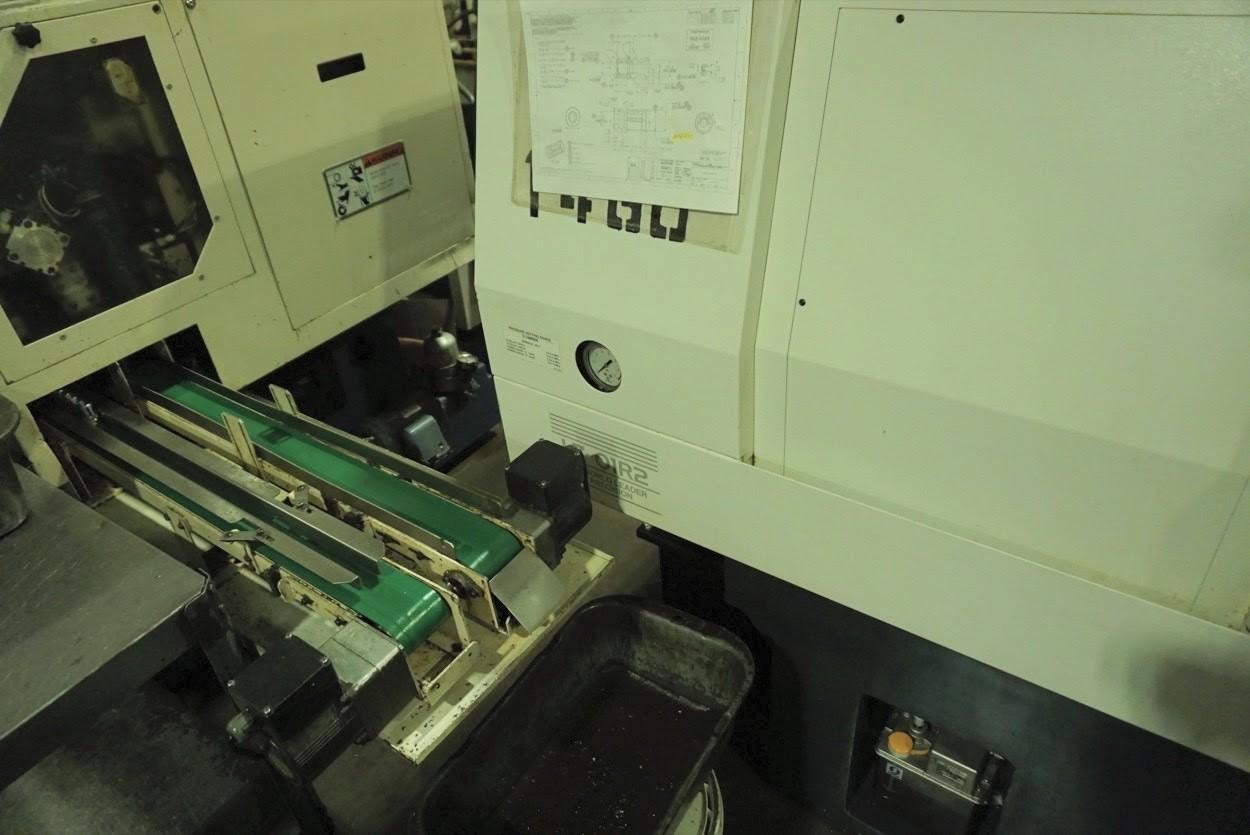

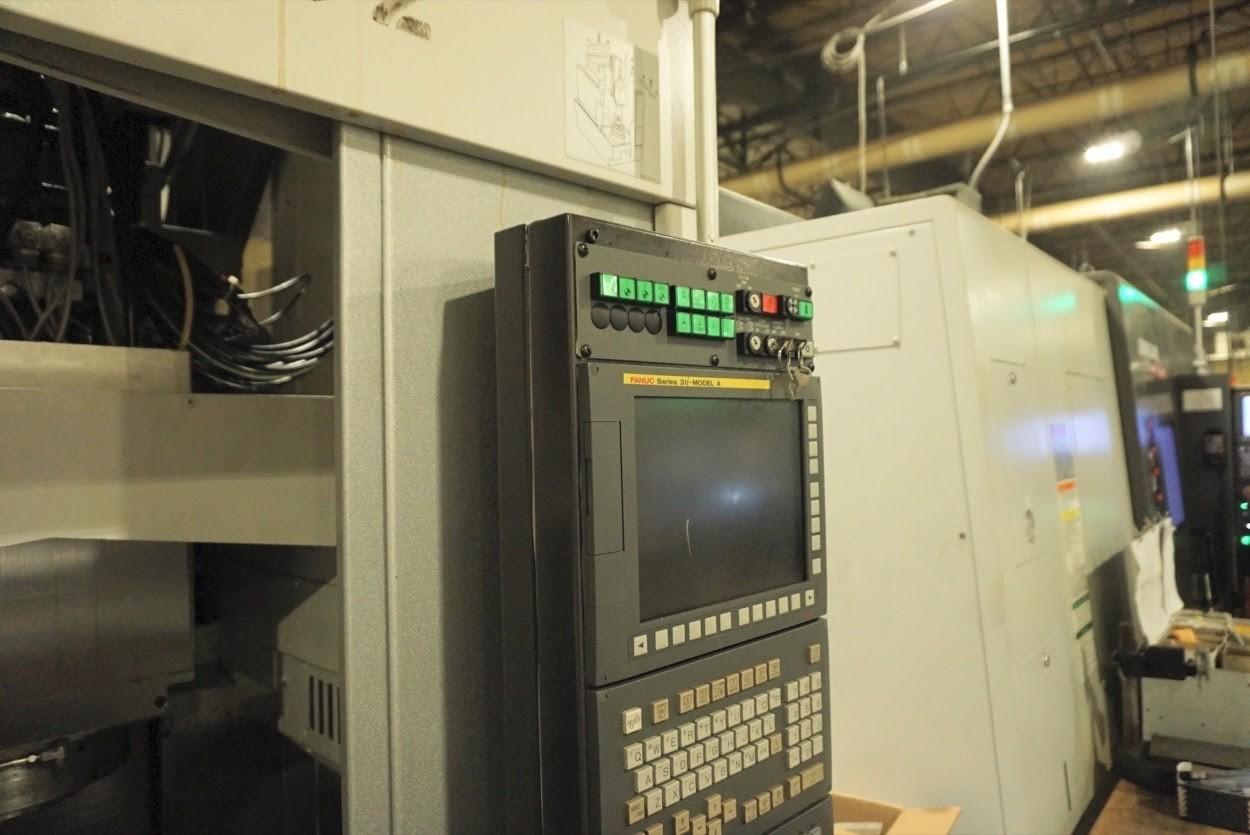

Equipped With (1) Used Okuma Model Millac 33T CNC Vertical Lathe, New 2013 Specifications: X-Axis travel: 13.40" Y-Axis travel: 11.81" Z-Axis travel: 14" Max. Table Weight: 440 Lbs Max. Turning Diameter: 9.84" Max. Turning Length: 8.66" Max. Swing: 18.11" Spindle Center Height from Floor: 35.43" Spindle Table: CT 40 Spindle Speed (Upper): 12,000 RPM Spindle Motor (Upper): 20/15 HP Spindle Speed (Lower): 6,000 RPM Spindle Motor (Lower): 20/15 HP Automatic Tool Changer: 30 Positions Tool Length Capacity: 11.81" Tool Diameter: 4.7" Max. Tool Weight: 22 Lbs Coolant Tank Capacity: 120 Gallons Dimensions (W x D x H) with Rear Exit Conveyor: 40" x 136" x 108" Machine Weight: 13,500 Lbs Feature: Fanuc 31IA5 CNC Contouring Control 10.4" Color LCD Screen Background Editing Function Tool Life Management Big Plus Spindle Spindle Chiller Coolant Thru Spindle (1,000 PSI - MP Systems) Chip Conveyor (rear / hinge type) Many other control options All Manuals available
