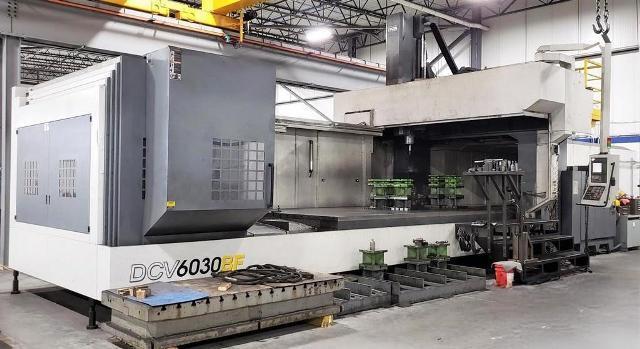

YCM DCV6030 BF CNC Vertical Bridge Mill, New 2012
Brand
YCM
Model
DCV6030 BF
Type
Machining Centers, Gantry (incld. Bridge & Double Column)
Stock #
56734
Condition
Very Good
Year
2012
Brand
YCM
Model
DCV6030 BF
Type
Machining Centers, Gantry (incld. Bridge & Double Column)
Stock #
56734
Condition
Very Good
Year
2012
| Number of Axes | 3 |
| CNC Control | yes |
| Type of CNC Control | FANUC 200FB CNC CONTROLS |
| Table Size | 236.22" X 118.11" |
| Max Table Load | 55,110 LBS |
| Effective Width Between Colums | 122" |
| X | 220 inches |
| Y | 120 inches |
| Z | 40 inches |
| Max Distance Spindle To Table Top | 50.63" Max. To 20.63" Min |
| RPM | 6000 |
| Number of Speed Ranges | 2 |
| Taper | CAT #50 |
| # ATC | 60 |
| Working Feeds | X,Y,Z AXES .04-394 IPM |
| Weight | 153000 pounds |

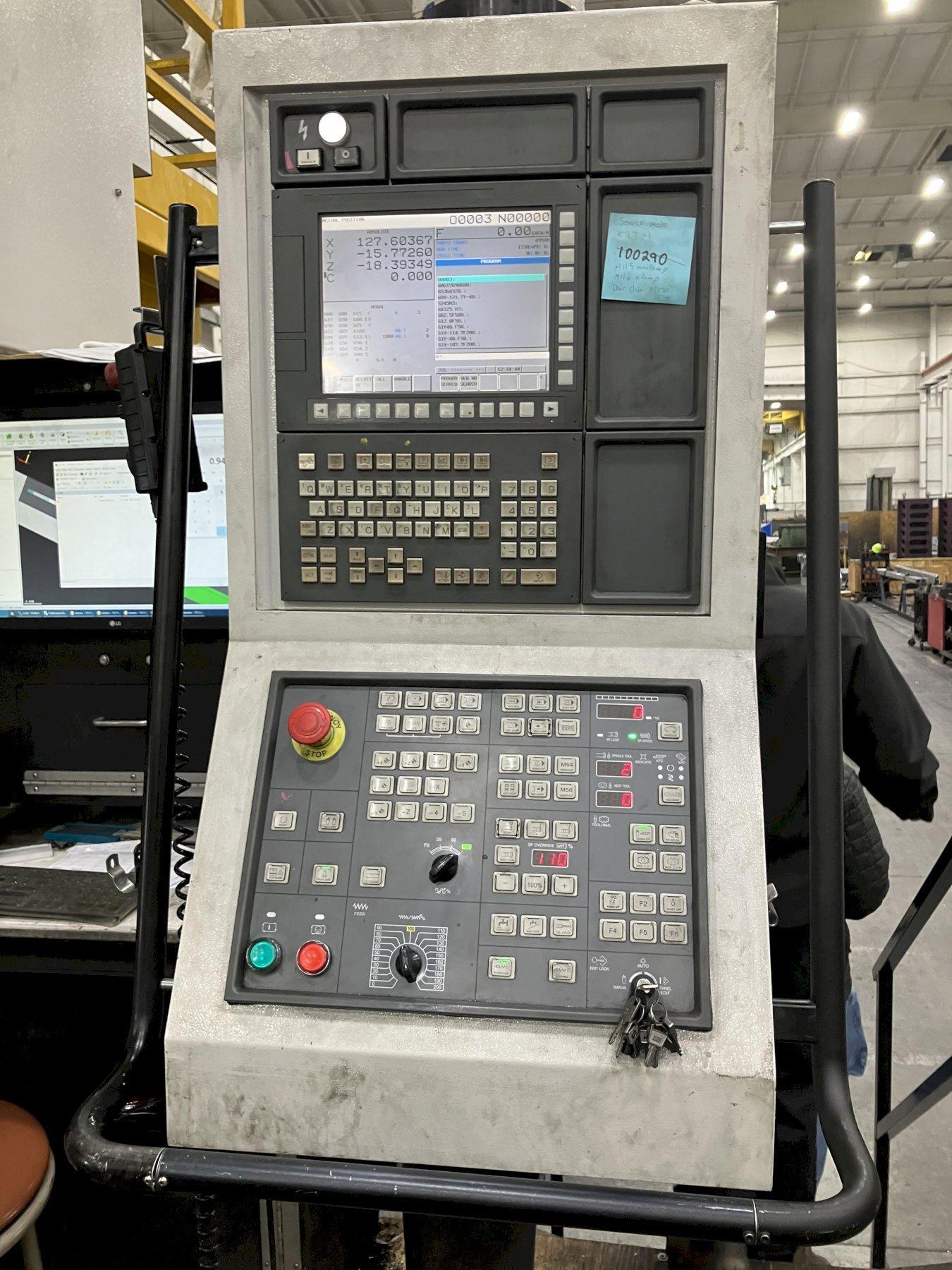

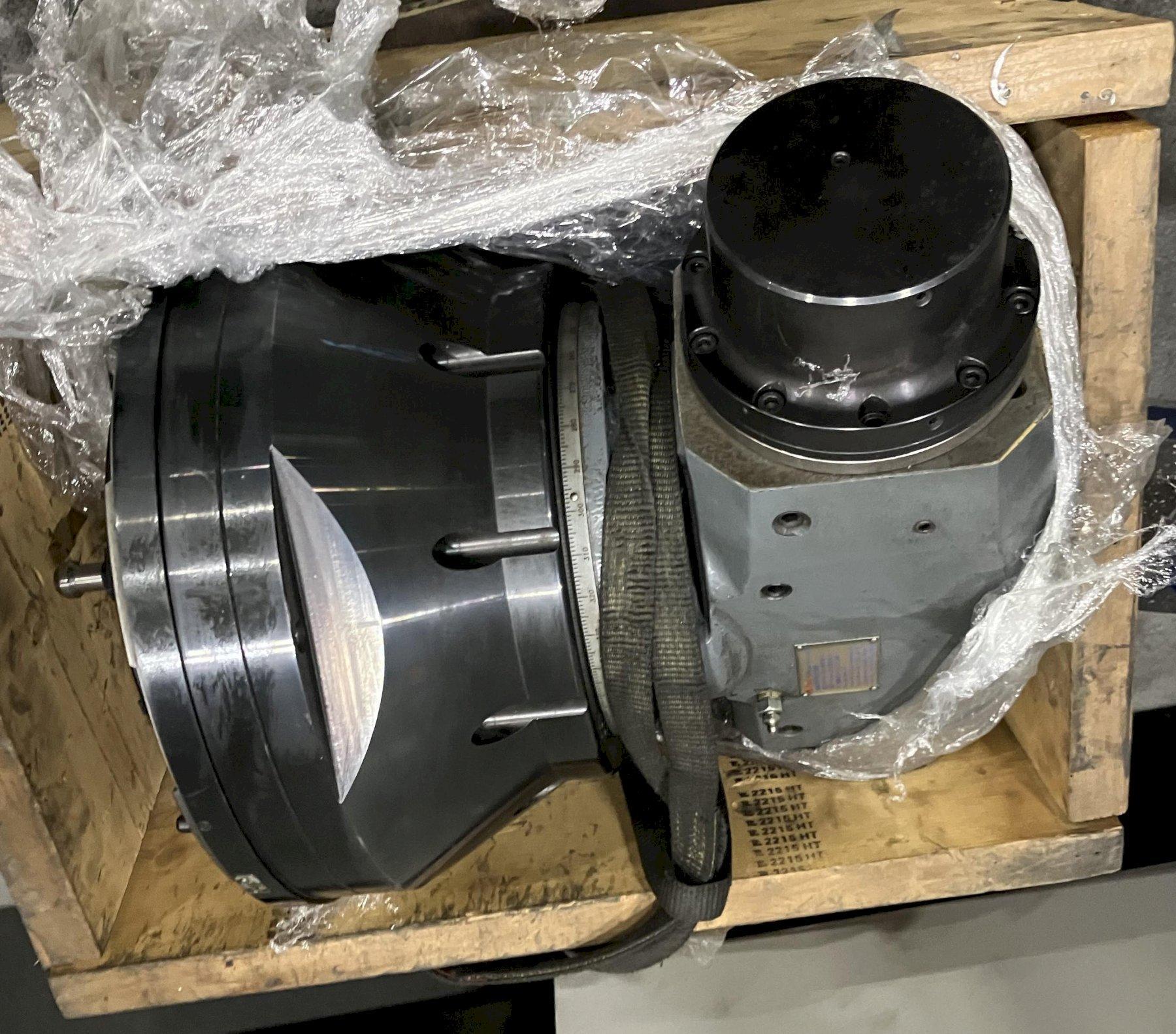

| FANUC 200FB CNC CONTROLS 60-STATION AUTOMATIC TOOLCHANGER 90 DEGREE AUTO INDEXING RIGHT ANGLE HEAD (REBUILT RECENTLY) AUTOMATIC ATTACHMENT CHANGER HIGH TORQUE SPINDLE FULL CHIP ENCLOSURE WITH ROOF 2GB DATA SERVER HIGH SPEED SKIP FUNCTION 250 MM ADDITIONAL COLUMN HEIGHT HEIDENHAIN SCALES ON X, Y & Z THROUGH SPINDLE COOLANT WITH FILTRATION SPINDLE LOAD COMPENSATION MARPOSS GAUGE TOOL LASER MEASUREMENT RENISHAW TOUCH PROBE CHIP CONVEYOR SPINDLE CHILLER STEEL SLIDING WAY COVERS |
